6 Calibration Procedures
Using the Front Panel for Adjustments
188 U3606A User’s and Service Guide

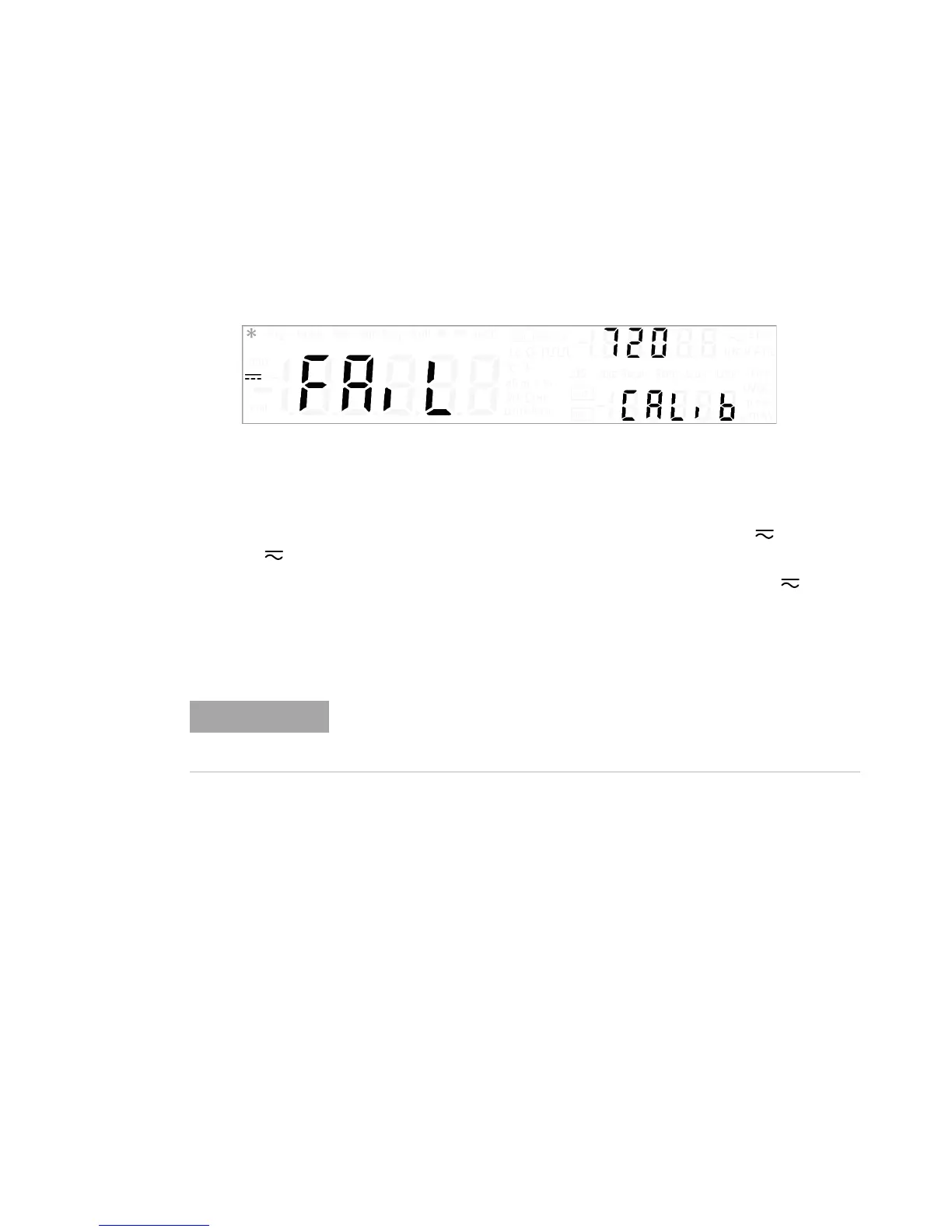

If the reading is out of the acceptable range, “FAiL” and the error code
is displayed momentarily. The instrument will then return to the failed
adjustment item. If this is the case, you are required to inspect whether
the correct reference input has been applied. Refer to Table 9- 7 on
page 263 for the meaning of the error codes.
5 Repeat step 3 and step 4 until all adjustments for that particular
function have been completed.
6 Select another function to be calibrated. Repeat step 3 to step 5.
For a key that hosts more than one function, for example , press
again to switch to the next function.
7 After calibrating all the functions, press Shift > Exit or Shift + to
exit adjustment mode.
8 Power- off the instrument and then power- on it again. The instrument is
now calibrated and ready for normal operation.
See “Adjustments procedures” on page 189 and its respective submodule
headings for a list of adjustment items and input adjustment values for
each measurement and source function in the U3606A.
