1Getting Started
Product at a Glance
22 U3606A User’s and Service Guide
The rear panel at a glance

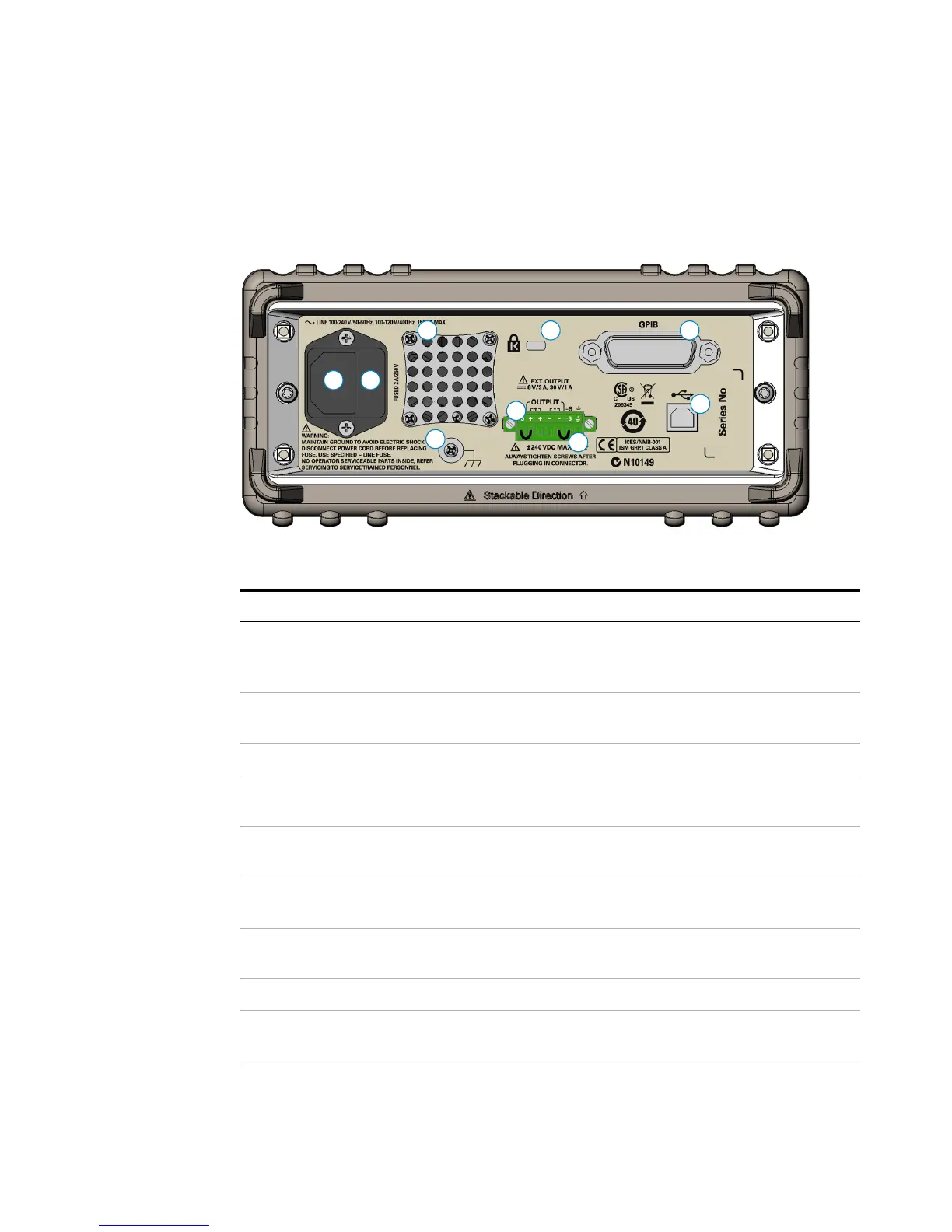

Figure 1-8 U3606A rear panel
Item Description
1 AC power connector
Plug the power cord firmly into the power receptacle on the rear panel
of the instrument. See “Connecting Power to the Instrument” on
page 5 for more information.
2AC line fuse
To maintain protection, replace this fuse only with a fuse of the
specified type and rating.
3 Ventilation fan Ventilation fan to exhaust heat and air from the instrument.
4
Kensington security
slot
Anti-theft system using Kensington locks.
5
GPIB interface
connector
GPIB (IEEE-488) connector physical interface. See “Configuring and
connecting the GPIB interface” on page 131 for more information.
6 Chassis ground lug
Connect to earth ground or to unit chassis to eliminate noise caused
by ground loops.
7 Rear output terminals
Rear panel terminals for remote sense. See “Remote Sensing” on
page 99 for more information.
8 Short bar Shorts the rear output (+ and –) and sense (+S and –S) terminals .
9
USB interface
connector
Type-B USB connector physical interface. See “Configuring and
connecting the USB interface” on page 132 for more information.
