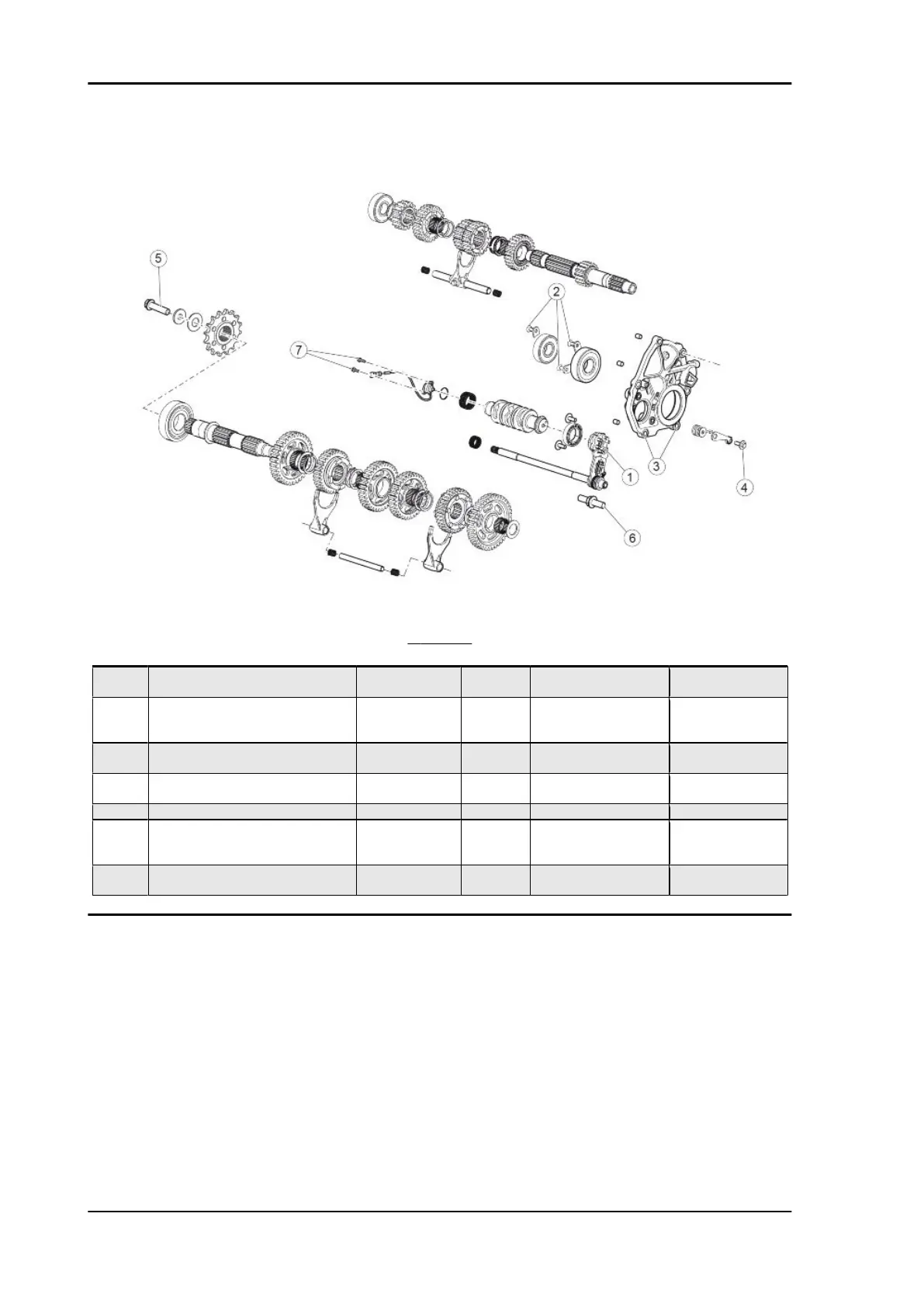

Gearbox
GEARBOX
Pos. Description Type Quantity Torque Notes
1 "Philips" cylindrical head hex. socket
screw
M6x20 1 10 Nm (7.38 lb ft) Loct. 243
2 Hex. socket flat head counter sunk
screw for fastening the bearing re-
taining plates
M6x16 3 10 Nm (7.38 lb ft) Loct. 243
3 Flanged, hex. head flange retaining
screws
M8x25 6 25 Nm (18.44 lb ft) -
4 Special screw with index lever fas-
tening collar
M6 1 10 Nm (7.38 lb ft) Loct. 243
5 Pinion fastening - 1 50 Nm (36.88 lb ft) Loct. 243
6 Pre-selector retaining screw on
crankcase
- 1 25 Nm (18.44 lb ft) Pre-impregnated
screw in absence of
3M 2353
7 Flanged, hex. head gear indicator
fastening screws
M5x15 2 6 Nm (4.43 lb ft) -
Removing the gearbox
•
Remove the gearbox selector.
•
Remove the clutch housing.
•
Remove the gear sensor from the flywheel side.
