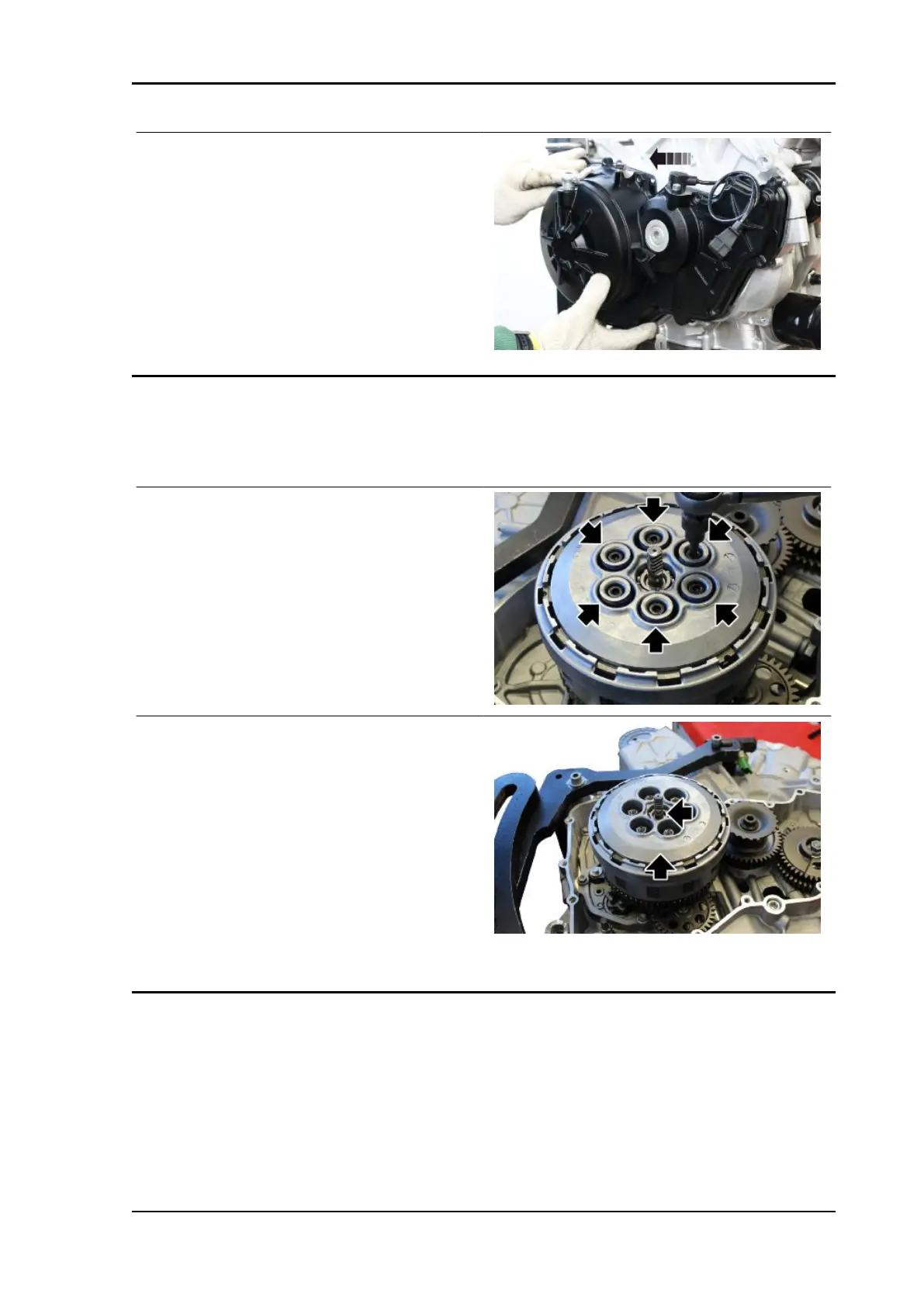

Remove the clutch casing, retrieving
the gasket, the two locator pins and the
starter motor transmission gear.
Disassembling the clutch
•
Unscrew and remove the tone wheel fixing screw.
•
Remove the tone wheel.
•
Remove the clutch cover.
•
Unscrew and remove the six screws by
loosening them 1/4 of a turn at a time;
operate in stages and diagonally, and
retrieve the washers and the clutch
springs.
•
Remove the thrust plate and the com-
plete control rod.
•
Remove the discs.
RSV4 RR-RF Engine
ENG - 293
