Swinging arm

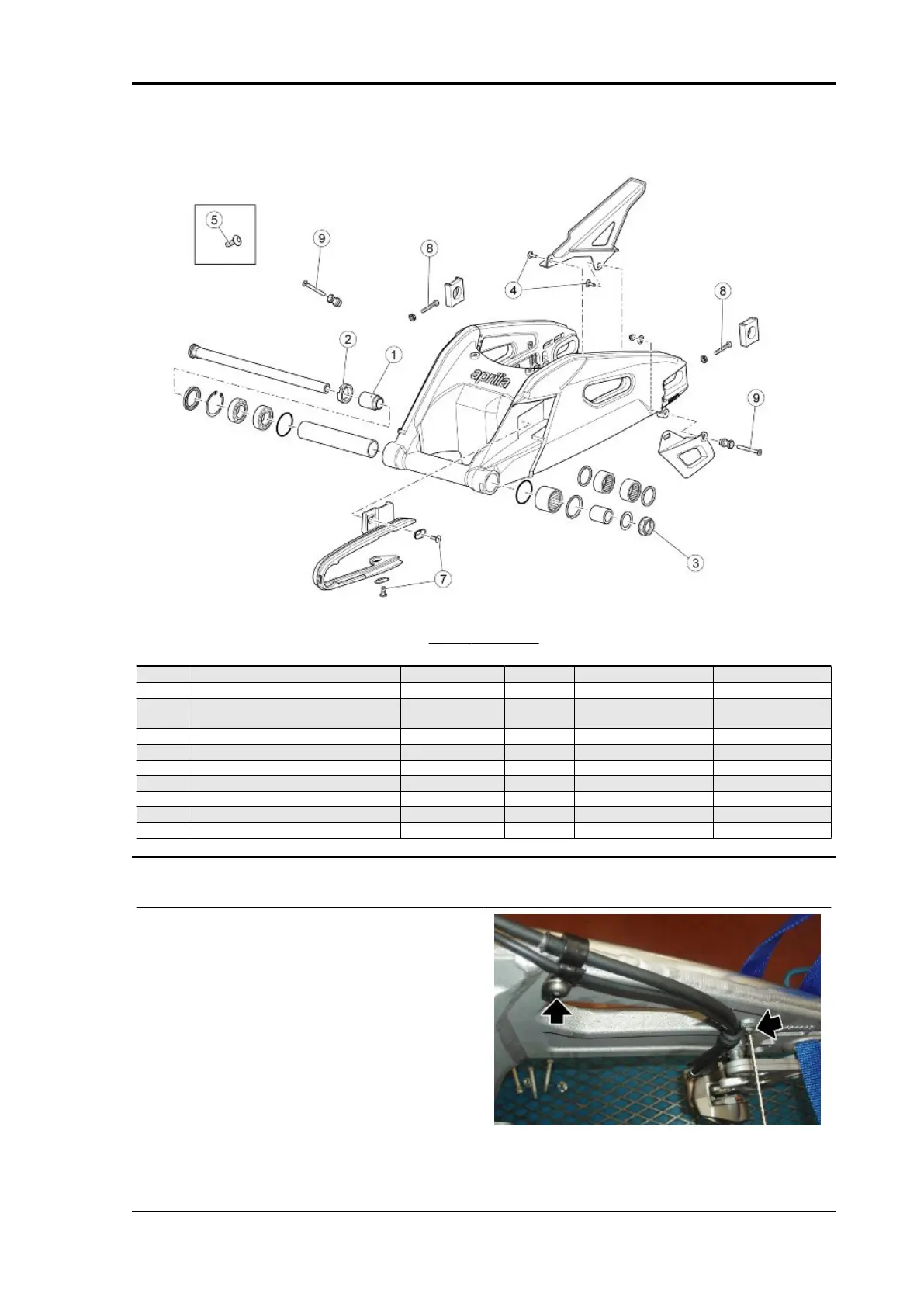

REAR SWINGARM
pos. Description Type Quantity Torque Notes
1 Swingarm regulator bushing M30x1.5 1 12 Nm (8.85 lb ft) -
2 Swingarm ferrule M30x1.5 1 60 Nm (44.25 lb ft) -
3 Fork pin nut M20x1.5 1 65 Nm (47.94 lb ft) AGIP GREASE
SM2
4 Chain guard fastening screws M5 2 4 Nm (2.95 lb ft) -
5 Front chain guide fixing screw M5 1 4 Nm (2.95 lb ft) -
6 Chain guide rear fastening nut M6 1 7 Nm (5.16 lb ft) -
7 Chain feeder shoe fastening screws M5 2 2 Nm (1.48 lb ft) -
8 Chain tensioner fastener screw M8 2 Manual -
9 Rear stand bushing fastening screws M6 2 7 Nm (5.16 lb ft) -
- Lower chain shoe fastening screws M6 2 10 Nm (7.38 lb ft) -
Removing
•
Remove the exhaust system.
•
Remove the rear mudguard.
•
Remove the rear shock absorber.
•
Remove the rear wheel.
•
Secure the rear part of the vehicle with
a belt and a hoist.
•
Unscrew and remove the two pipe
grommet screws.
•
Remove the rear brake calliper off the
swingarm.
RSV4 RR-RF Chassis
CHAS - 439
