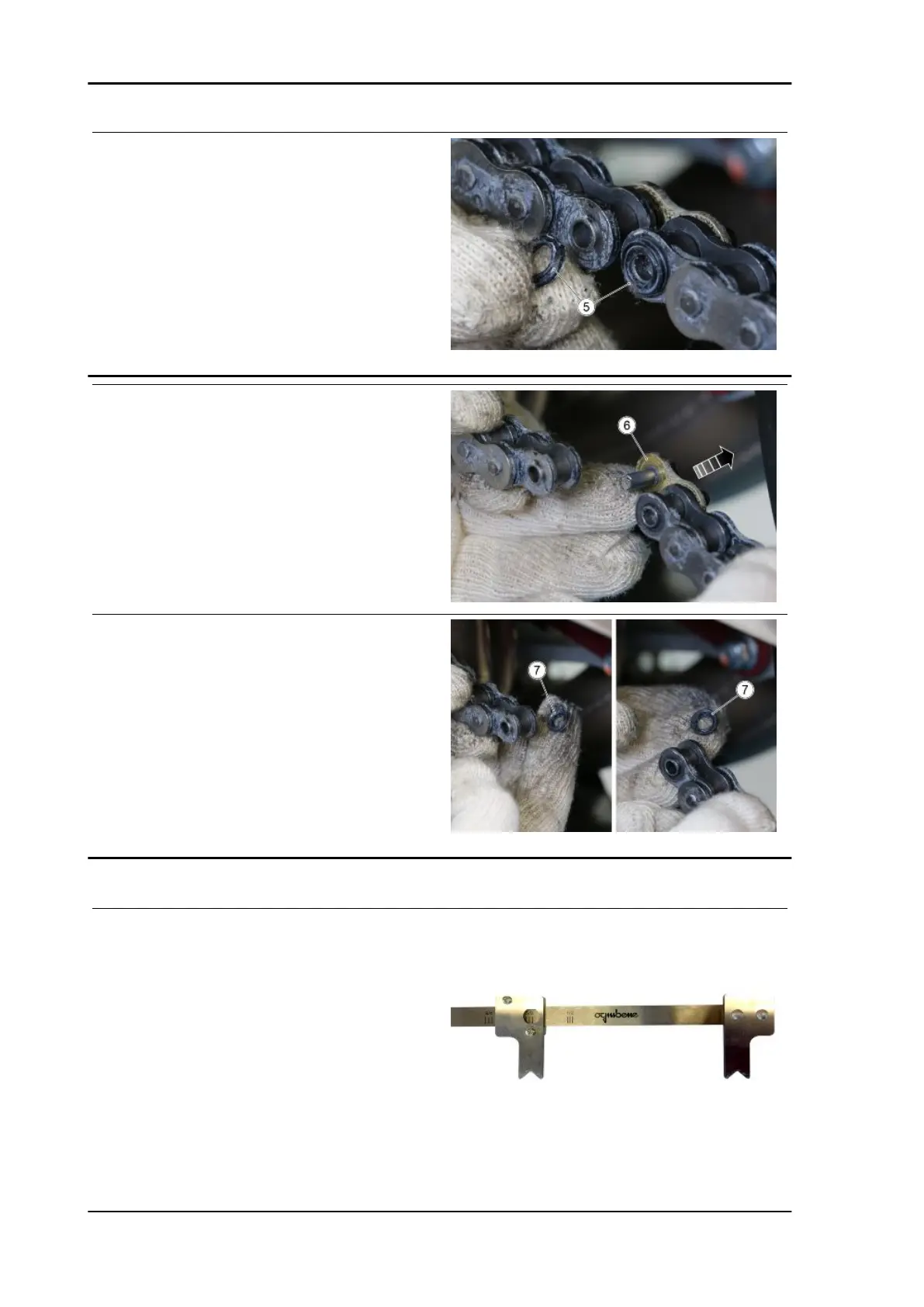

Remove the outer O-ring rings (5).
•
Remove the inner plate (6).
•
Collect the inner O-ring rings (7) and
completely remove the transmission
chain.
inspection
To check the wear of the drive chain, use the chain
checking instrument, P/N: Ognibene -
529510001.
The different chain pitches which may be checked
with the instrument are indicated on the instrument
itself. There are three reference markings for each
chain pitch indicated on the instrument. These in-
dicate (from right to left) the correct measurements
for:
1. New chain with length near nominal value;
Chassis RSV4 RR-RF
CHAS - 448
