Fit the intermediate gear.
•
Fit the clutch cover.
Generator side

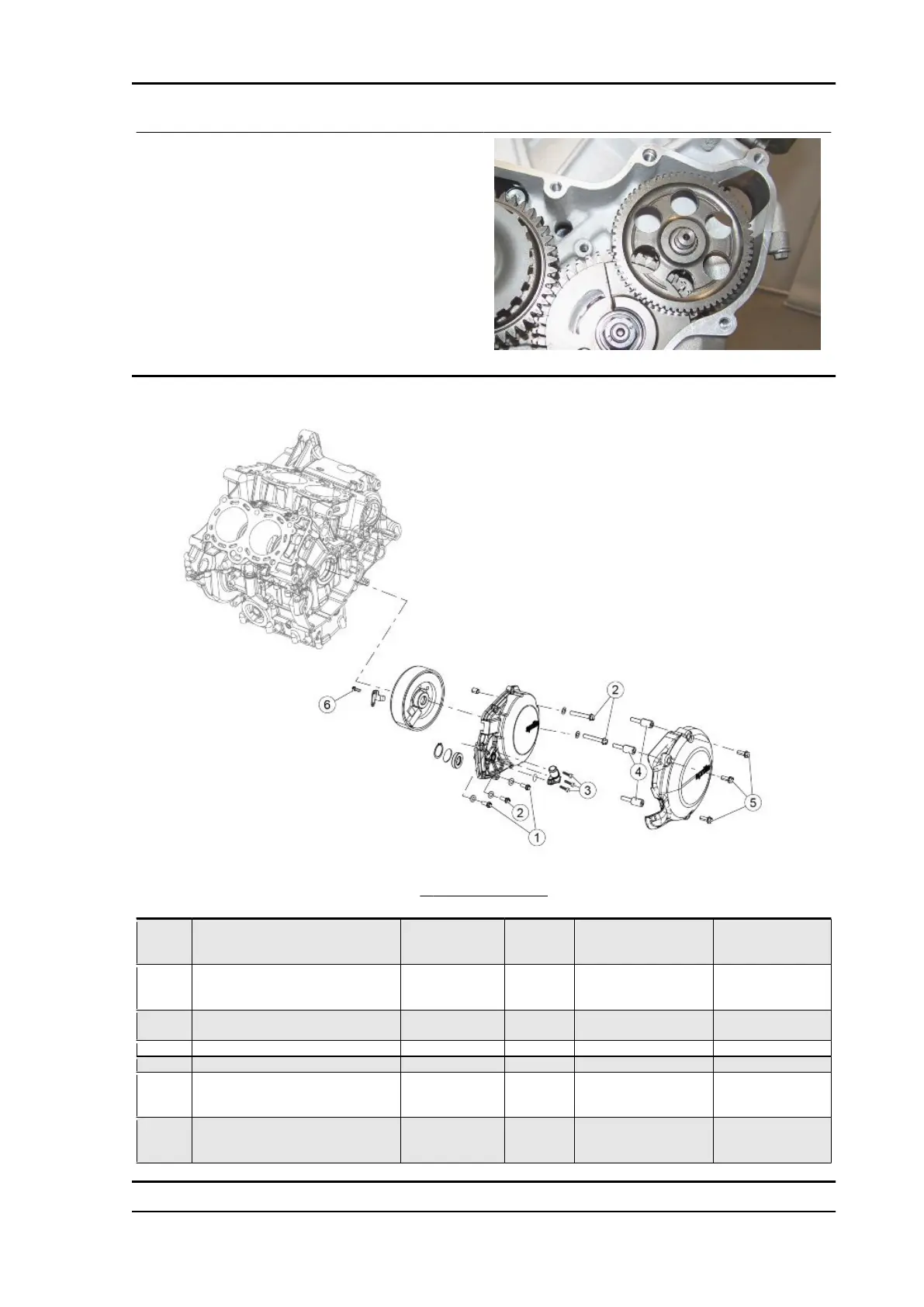

GENERATOR COVER
Pos. Description Type Quantity Torque Notes
1 Cover fastening screws M6x25 2 12 Nm (8.85 lb ft) Tighten to torque,
unscrew and re-
tighten to torque.
2 Cover fastening screws M6x40 3 12 Nm (8.85 lb ft) Tighten to torque,
unscrew and re-
tighten to torque.
3 Blow-by coupling SHC fastening
screws
M5x16 3 5 Nm (3.69 lb ft) -
4 Spacers for soundproof cover - 3 6 Nm (4.43 lb ft) -
5 Soundproof cover fastening screws M6 3 6 Nm (4.43 lb ft) -
6 TE flanged screw fixing the cable tie
plate
M5x12 1 6 Nm (4.43 lb ft) Pre-impregnated
screw and in ab-
sence Loct.2045
- Stator SHC fixing screw M6x30 1 10 Nm (7.38 lb ft) Pre-impregnated
screw and in ab-
sence Loct.2045
RSV4 RR-RF Engine
ENG - 287
