NOTE
WHEN REASSEMBLING THE CONNECTORS, THE SLIDES
MUST SLIDE FREELY UP TO THE LIMIT STOP, THUS FA-
CILITATING THE CONNECTOR'S INSERTION. THE CATCH
SHOULD SNAP INTO PLACE ONCE THE LIMIT STOP IS
REACHED.

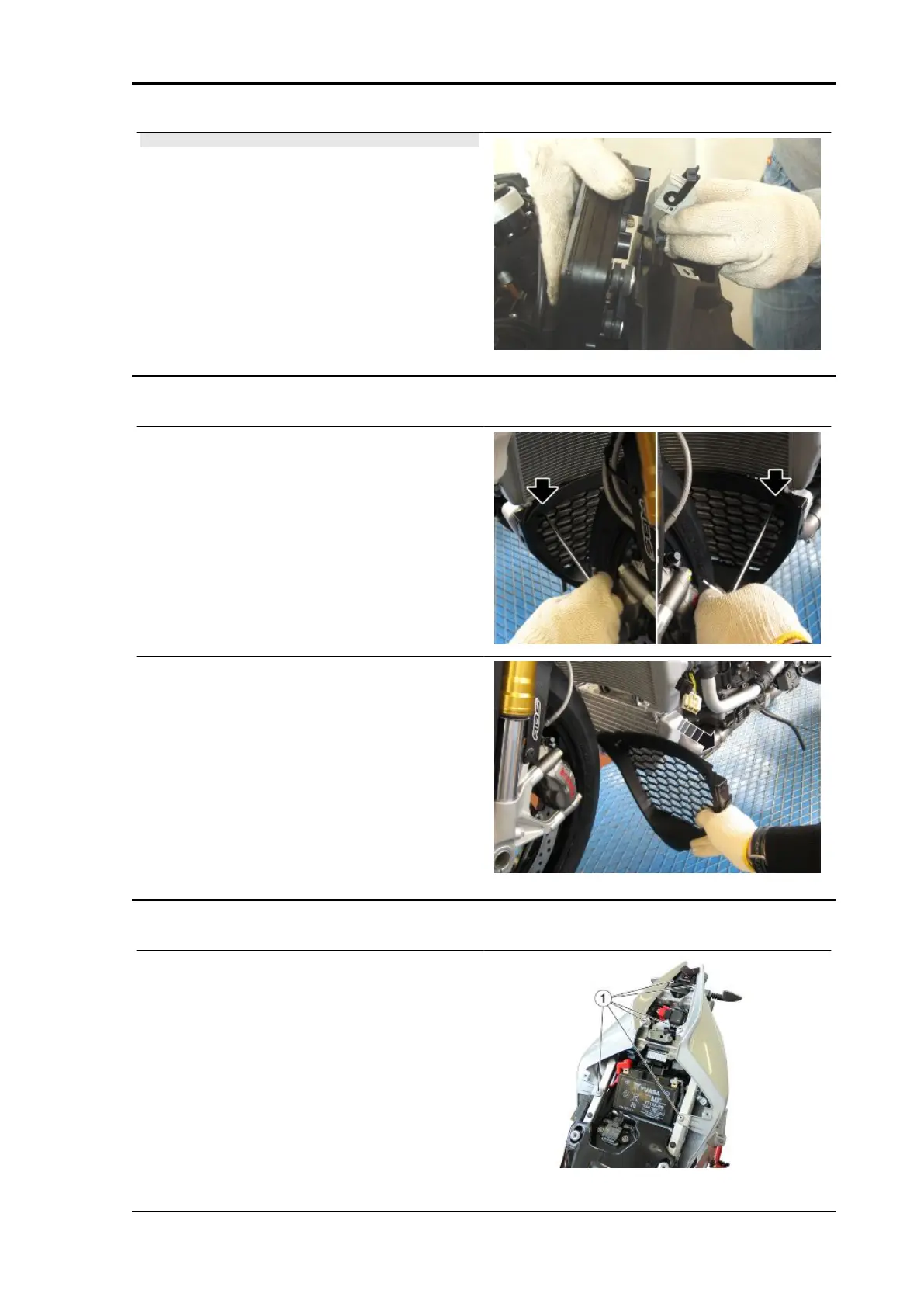

Radiator cover
•
Remove the side fairings.
•
Remove the fairing lug.
•
Operating from both sides, unscrew
and remove the fixing screws.
•
Remove the radiator cover
Tail guard
•
Carry out the saddle removal proce-
dure.
•
Carry out the side fairing removal pro-
cedure.
•
Undo and remove the six fixing screws
(1).
RSV4 RR-RF Bodywork
BODYW - 545
