LUBRICATION SYSTEM
Pos. Description Type Quantity Torque Notes
1 Oil filter coupling fastening screw - 1 30 Nm (22.13 lb ft) -
2 Oil drainage plug - 1 30 Nm (22.13 lb ft) -
3 Oil sump fixing screws M6x30 12 12 Nm (8.85 lb ft) Tighten to torque,
unscrew and re-
tighten to torque.
4 Oil pressure sensor - 1 15 Nm (11.06 lb ft) -
5 Flanged TE rose pipe fastening
screw
M6x16 1 10 Nm (7.38 lb ft) Pre-impregnated
screw, in absence
Loct.2045
6 SHC screw fixing pump to the casing M6x16 5 10 Nm (7.38 lb ft) -
7 SHC screw fixing pump to the casing M6x50 1 10 Nm (7.38 lb ft) -
8 SHC screw fixing oil pipe connection M6x20 1 10 Nm (7.38 lb ft) -

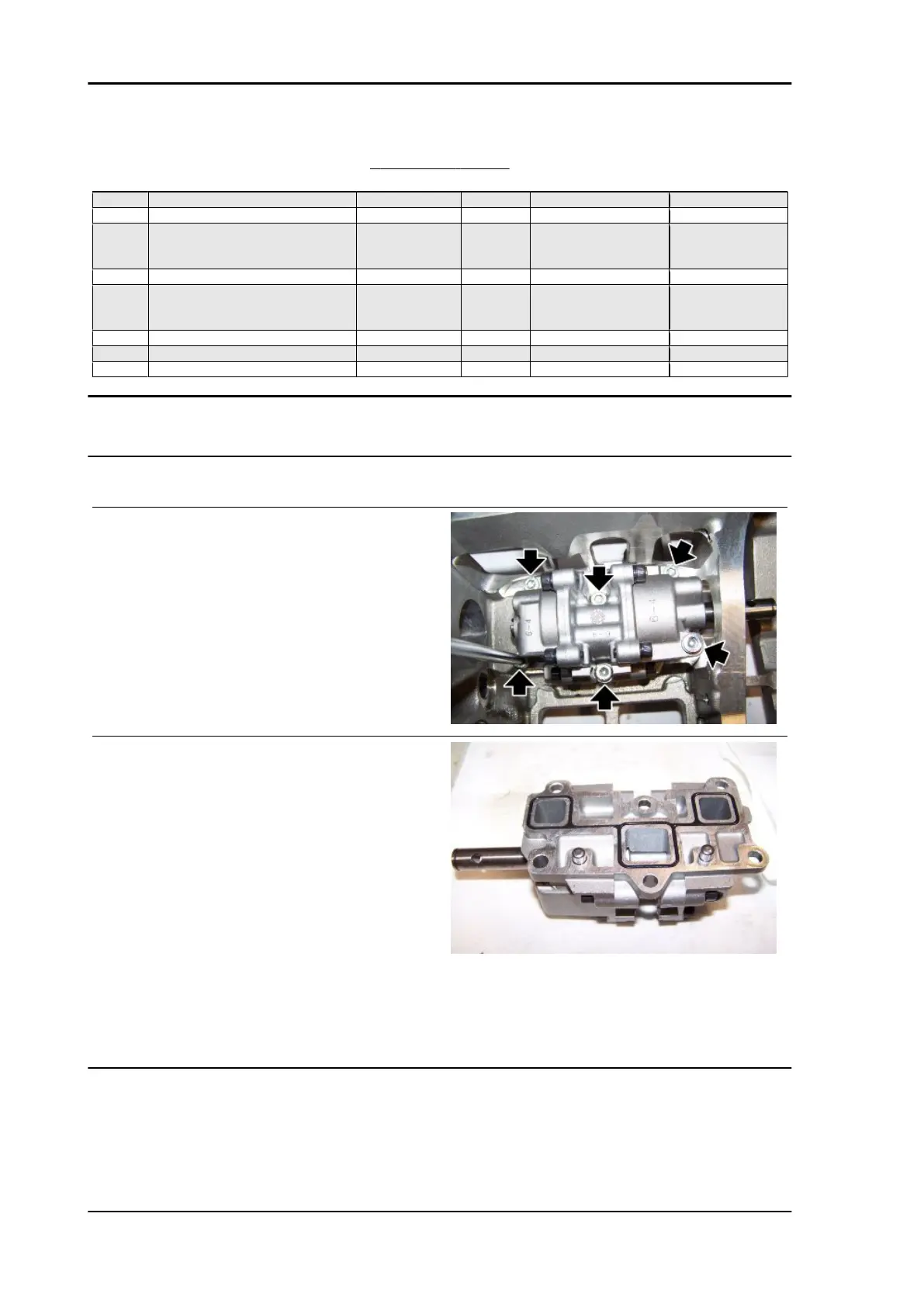

Oil pump
Removing
•
Remove the gearbox.
•
Remove the water pump.
•
Unscrew and remove the six screws
fastening the oil pump to the crank-
case.
•
Remove the oil pumps.
OIL PUMP REMOVAL
•
Place the oil pumps on a work table.
•
Remove the gasket.
See also
Removing the gearbox
Water pump
Engine RSV4 RR-RF
ENG - 374
