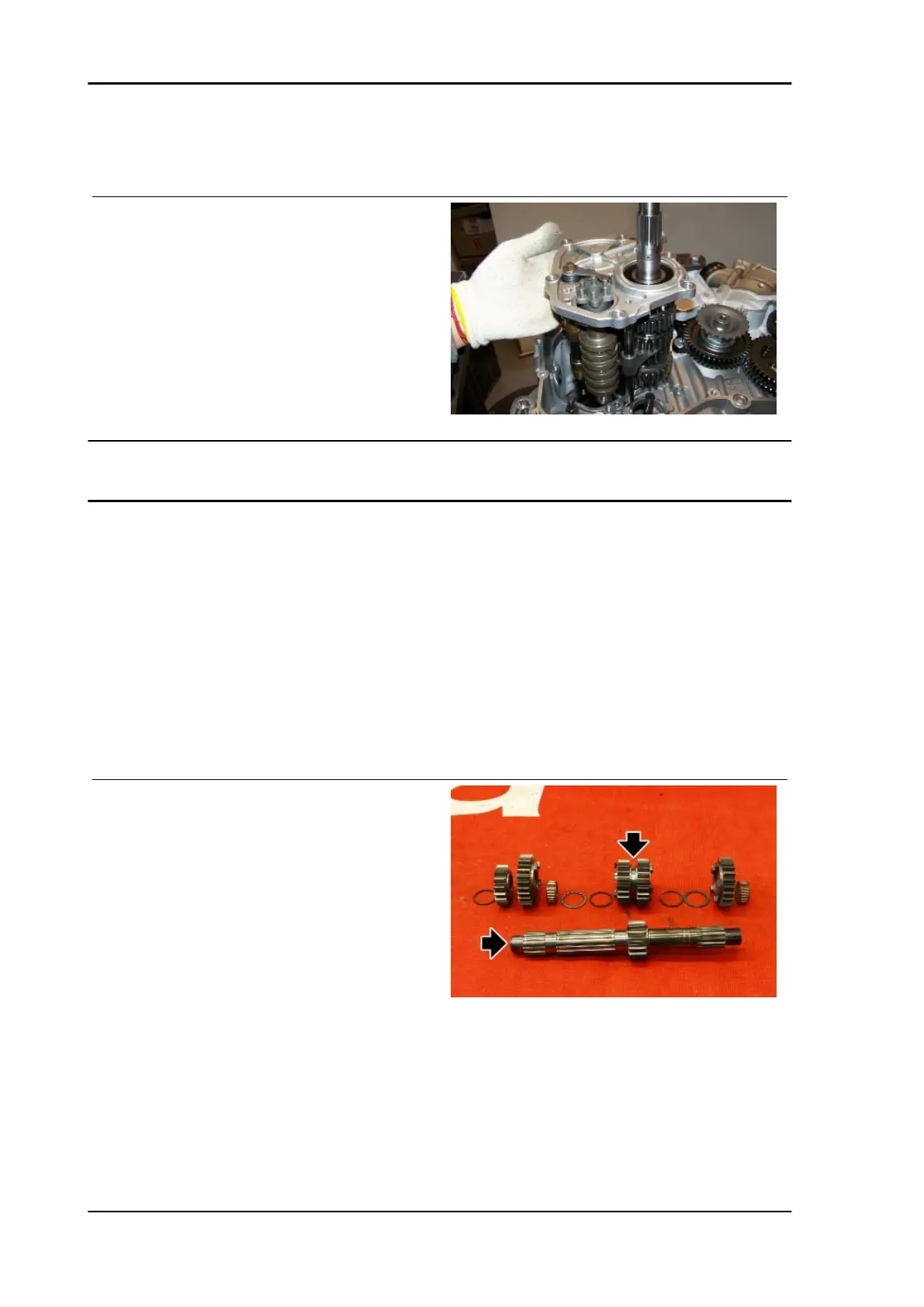

Screw a M10x120 screw in the secondary shaft hole, from the alternator side, to make it
easier to extract the gearbox unit.
•
Use a rubber mallet to tap on the sec-
ondary shaft from the alternator side to
detach the gearbox cover from the
crankcase.
•
Remove the complete gearbox unit.
Gearbox shafts
Disassembling the gearbox
Based on the design development of the engine, some gear components can have superficial treat-
ments of different types.
Some components of the gear can have a superficial cover in WC/C.
This coating consists of a layer composed of tungsten carbide lamellae alternating with amorphous
carbon lamellae. The coating WC/C has an elevated hardness and a good resistance to wear. The main
reason for using this coating is its extremely low friction coefficient, making this an ideal treatment for
preventing adhesion phenomena such as seizing and cold welding. The treatment has a characteristic
colouring, darker than at a traditional operation.
•
Only some components have the coat-
ing WC/C, among them:
1. Primary shaft
2. the gear of 3a-4a of the primary shaft;
3. All forks
Engine RSV4 RR-RF
ENG - 274

APRILIA RSV4 RR 2017 Specifications

General

Displacement	999.6 cc
Bore x Stroke	78 x 52.3 mm
Compression Ratio	13.6:1
Transmission	6-speed
Frame	Aluminum dual beam chassis with pressed and cast sheet elements
Tires	Pirelli Diablo Supercorsa SP
Front Tire	120/70 ZR17
Rear Tire	200/55 ZR17
Engine Type	65° V4
Power	201 hp
Torque	115 Nm
Fuel System	Electronic fuel injection
Clutch	Multiplate wet clutch
Rear Suspension	Ohlins TTX shock
Front Brakes	Brembo 320 mm discs, radial calipers
Rear Brakes	Brembo 220 mm disc
ABS	Bosch 9MP ABS
Fuel Capacity	18.5 liters
Wheelbase	1420 mm
