2. Chain with chain stretch of 1.5%;
3. Chain with chain stretch of 3%, which must
therefore be replaced in accordance with ap-
plicable legislation.

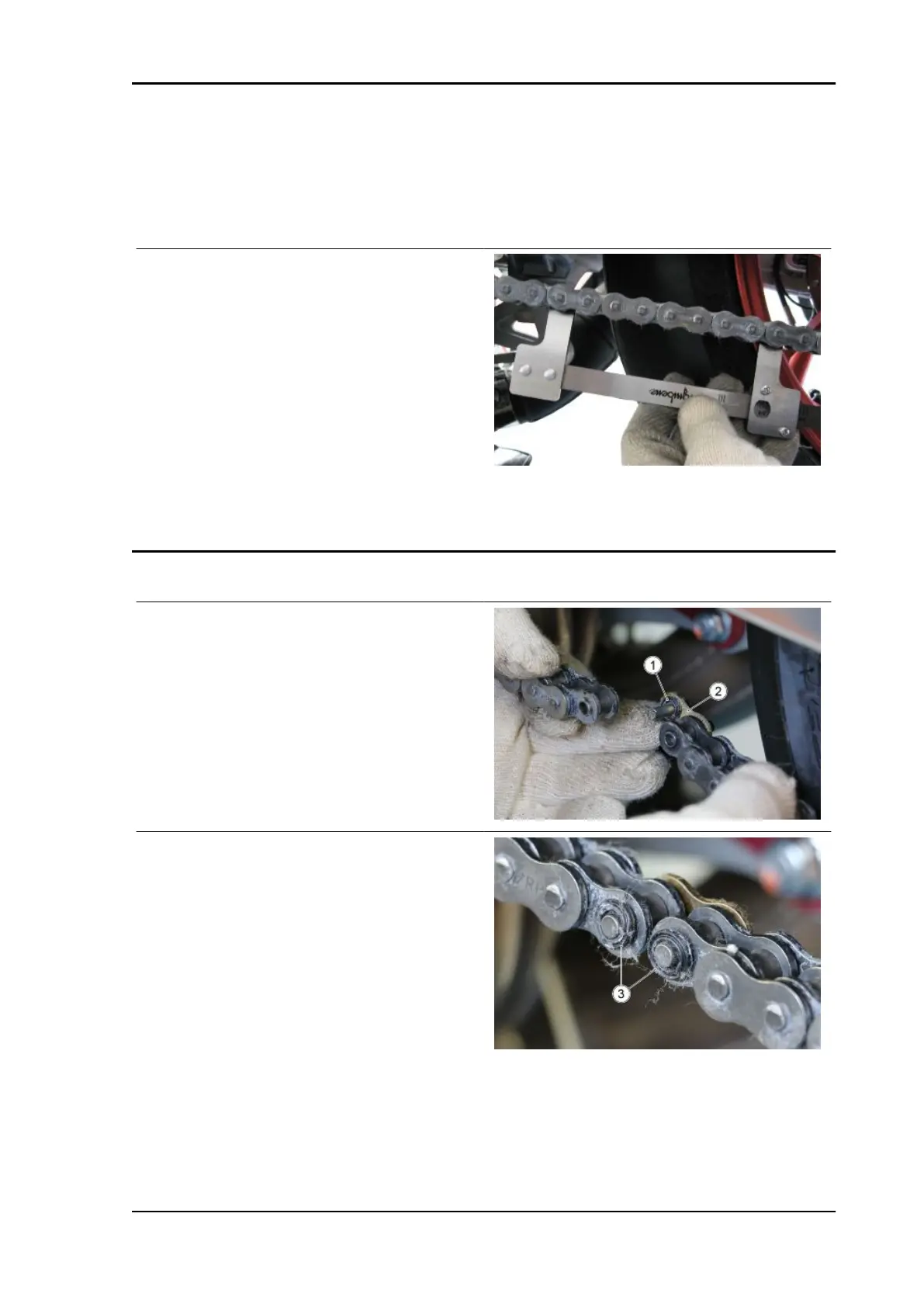

Perform the procedure described as follows to
check chain wear:
•
Tauten the chain.
•
Place the jaws of the tool on the rollers
at the opposite ends of a STRAIGHT
length of chain consisting of 8 chain
links.
•
Check that the notch on the sliding jaw
matches the correct marking on the in-
strument.
Installing
•
After fitting the chain on the pinion and
on the crown, put the inner O-rings (1)
back onto the hammerlock pins (2) and
connect the two ends of the transmis-
sion chain.
•
Place the outer O-rings (3) on the pins.
RSV4 RR-RF Chassis
CHAS - 449
