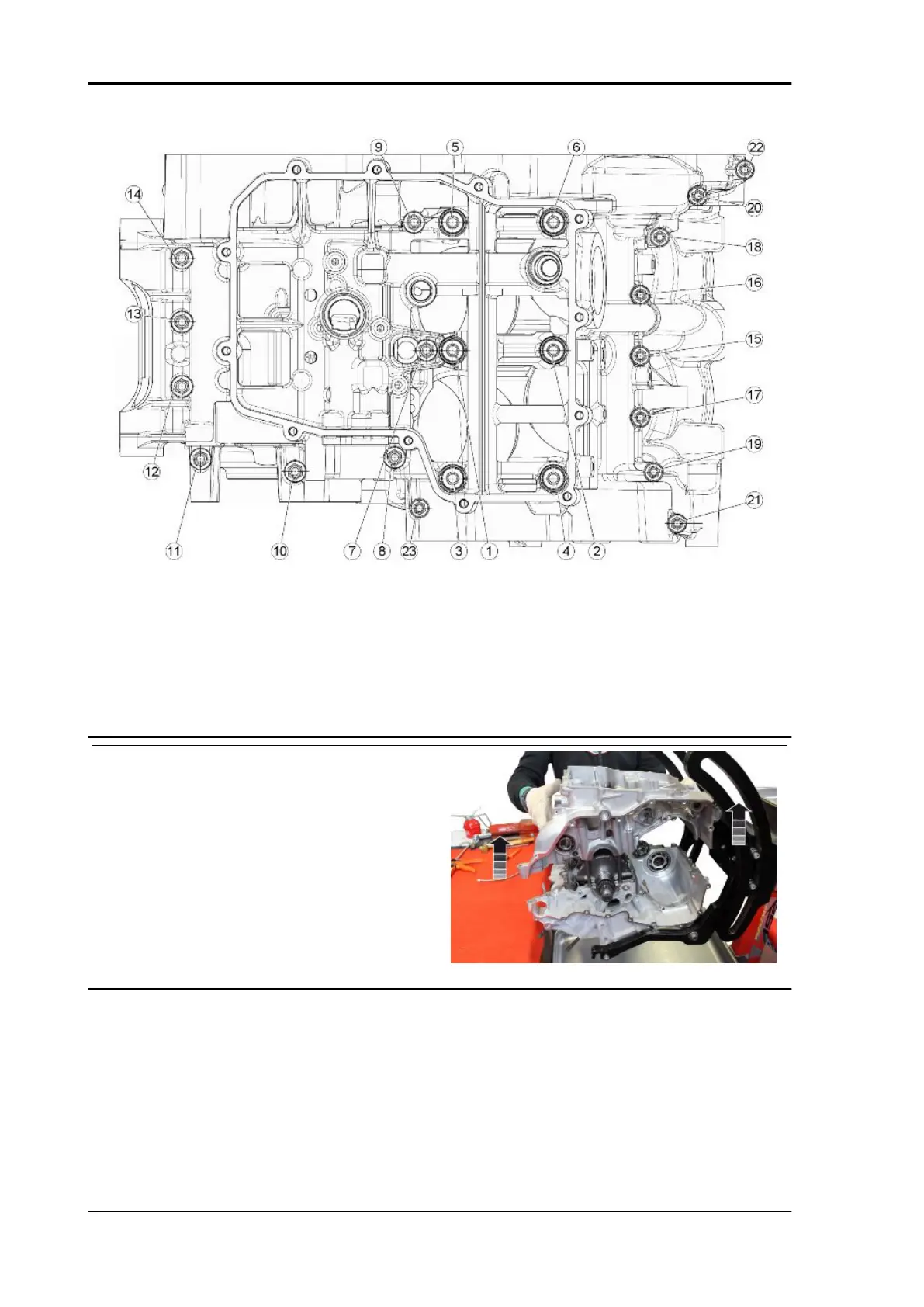

Turn the engine with the heads facing downward and loosen the screws in the following
order: 23 - 22 - 21 - 20 - 19 - 18 - 17 - 16 - 15 - 14 - 13 - 12 - 11 - 10 - 9 - 8 - 7.
•
After loosening all screws, remove them in order indicated above.
•
Loosen the six nuts on the stud bolts, proceeding in the following order 6 - 5 - 4 - 3 - 2 - 1.
•
After loosening all nuts, remove them in order indicated above.
•
Separate the crankcases, removing
the lower part
•
Collect the three dowel pins.
•
The crankshaft, the pistons and the
connecting rods remain in the upper
crankcase.
Engine RSV4 RR-RF
