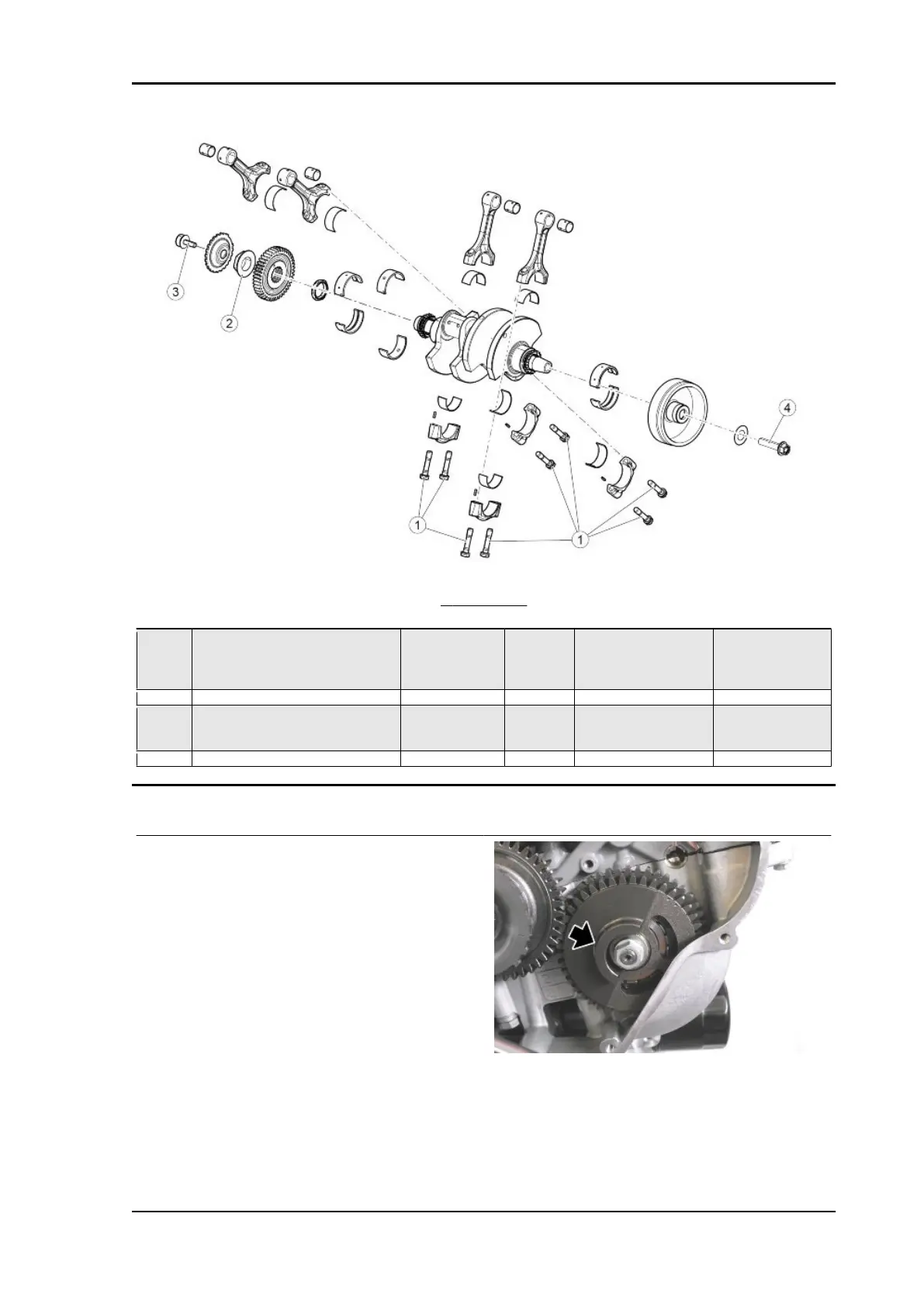

CRANKSHAFT
Pos. Description Type Quantity Torque Notes
1 Connecting rod screws - 8 15 + 20 Nm (11.06 +
14.75 lb ft) + 130°
Lubricate the head
and under head with
con PANKL Lubri-
cant 01 (PLB01)
2 Primary fixing ring nut - 1 200 Nm (147.51 lb ft) Loct. 243
3 Tone wheel fastener screw M8x24 1 50 Nm (36.88 lb ft) Pre-impregnated, in
absence Loct.270
or Loct.648
4 Generator fixing screw M12x1.25 1 120 Nm (88.51 lb ft) -
Balancing countershaft removal
•
To extract the balancing countershaft,
first remove: the clutch cover and the
alternator cover.
•
Turn the crankshaft so as to position
the thicker side of countershaft gear on
the side opposite to crankcase bulk-
head.
RSV4 RR-RF Engine
ENG - 347
