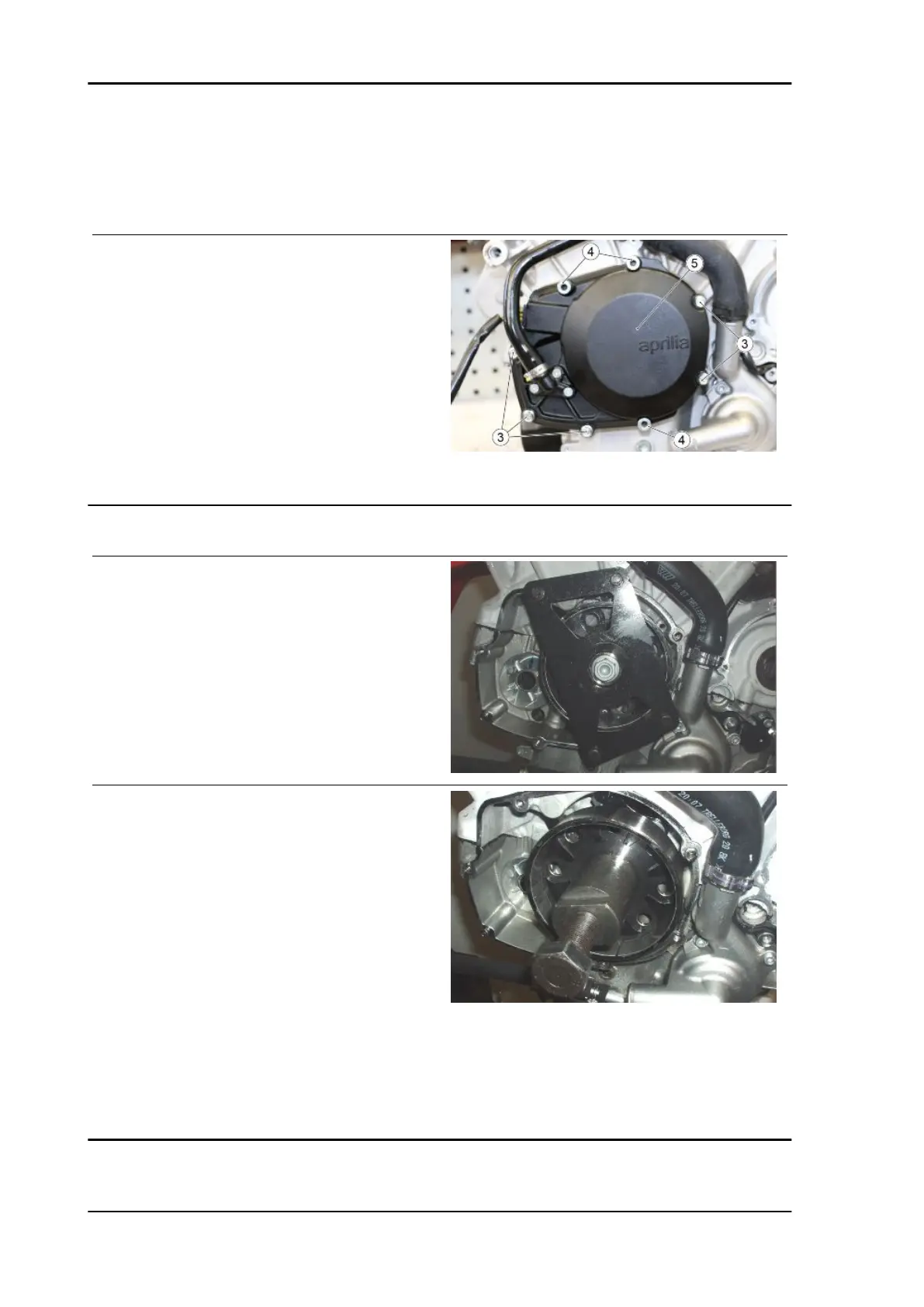

Removing the flywheel cover
•
Unscrew and remove the three fastening screws (1) from the soundproofing cover (2).
•
Remove the soundproofing cover (2).
•
Release the clamp and detach the
Blow-by pipe.
•
Unscrew and remove the five screws
(3) and the three special screws (4).
•
Mark the screws (3) appropriately, as
their lengths are different.
•
Remove the cover (5) together with the
stator and retrieve the two centring
dowels.
Magneto flywheel removal
•
Remove the flywheel cover.
•
Block flywheel rotation using the spe-
cific tool.
•
Unscrew and remove the screw.
Specific tooling
020914Y Flywheel retainer
•
Remove the tool for blocking flywheel
rotation.
•
Insert a SHC M10x20 screw into the
crankshaft hole, which will act as a
mounting base for flywheel extraction.
•
Remove the flywheel using the specific
extractor.
•
Collect the SHC M10x20 screw.
Specific tooling
020913Y Flywheel extractor
See also
Removing the flywheel cover
Engine RSV4 RR-RF
ENG - 288
