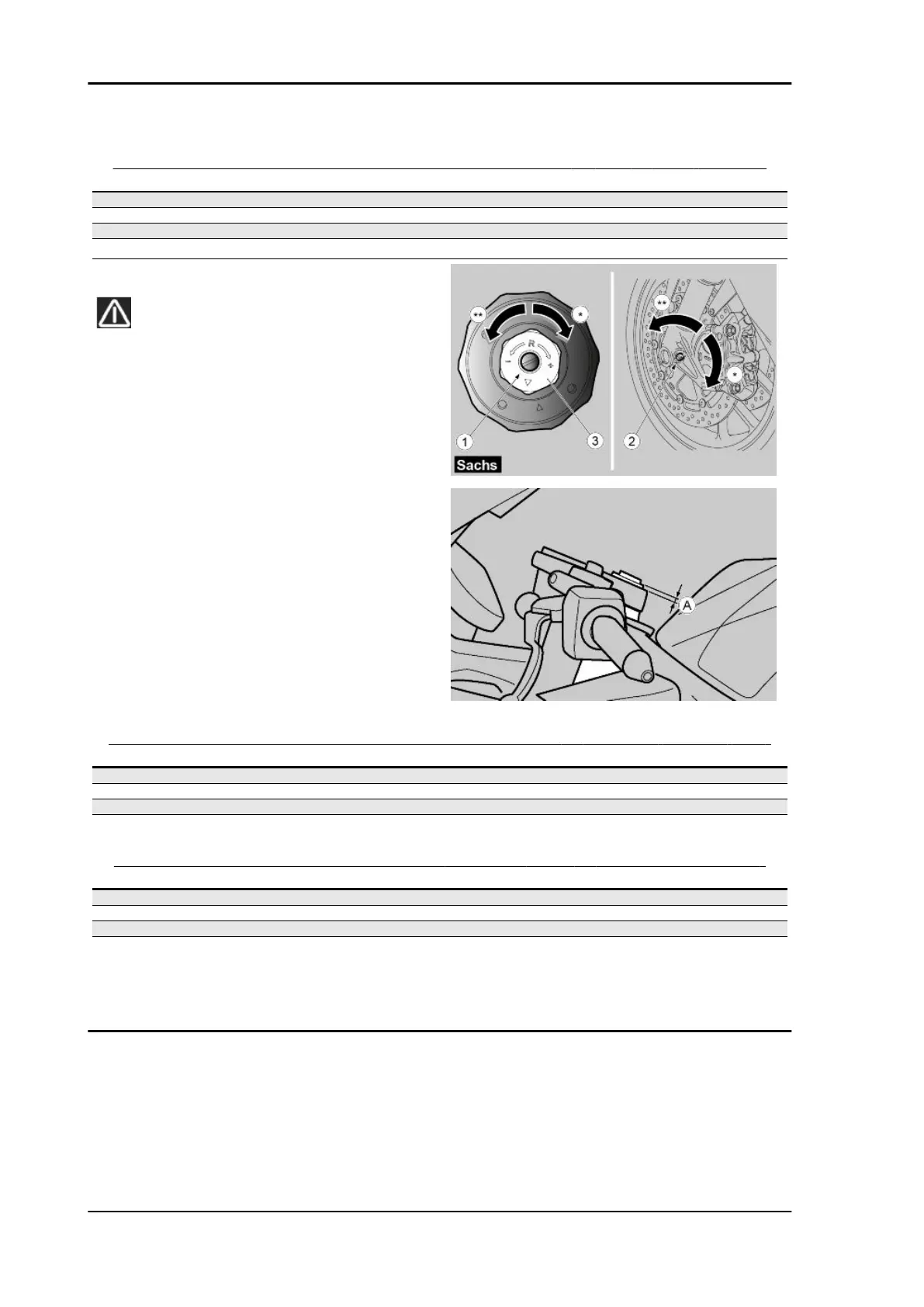

FRONT FORK - RSV4 1000 RF - RACING ADJUSTMENT RANGE (OHLINS) ( TRACK USE ONLY)
Specification Desc./Quantity
Rebound damping adjustment, screw (1) Unscrew (**) 10 clicks from fully closed (*)
Compression damping adjustment, screw (2) Unscrew (**) 7 clicks from fully closed (*)
Spring pre-loading, nut (3) screw (*) 10 turns from fully open (**)
Stems (A) protrusion from top plate (excluding cover) 3 notches/ 12 mm (3 notches/0.47 in)
RSV4 1000 RR (Sachs forks)
TO COUNT THE NUMBER OF CLICKS AND/OR REVOLU-
TIONS OF ADJUSTMENT SETTINGS ALWAYS START
FROM THE MOST RIGID SETTING (WHOLE CLOCKWISE
ROTATION OF THE SETTING).
FRONT FORKS - RSV4 1000 RR - STANDARD ADJUSTMENT (SACHS) (FOR ROAD USE ONLY)
Specification Desc./Quantity
Rebound damping adjustment, screw (1) Unscrew (**) 10 clicks from fully closed (*)
Compression damping adjustment, screw (2) Unscrew (**) 6 clicks from fully closed (*)
Spring pre-loading, nut (3) screw (*) 5 turns from fully open (**)
Stems (A) protrusion from top plate (excluding cover) 2 notches/ 8 mm (2 notches/0.31 in)
FRONT FORK - RSV4 1000 RR - RACING ADJUSTMENT RANGE (SACHS) ( TRACK USE ONLY)
Specification Desc./Quantity
Rebound damping adjustment, screw (1) Unscrew (**) 8 clicks from fully closed (*)
Compression damping adjustment, screw (2) Unscrew (**) 4 clicks from fully closed (*)
Spring pre-loading, nut (3) screw (*) 6 turns from fully open (**)
Stems (A) protrusion from top plate (excluding cover) 2 notches/ 8 mm (2 notches/0.31 in)
(*) = clockwise
(**) = anticlockwise
Suspensions RSV4 RR-RF
