ALWAYS OBSERVE THE RECOMMENDED ADJUSTMENT
RANGE.
CAUTION
CONSULT THE "SETTING UP" PARAGRAPH FOR THE PA-
RAMETER SETTINGS.
Adjusting
(PROCEDURE FOR OHLINS FORKS)
SPORT SETTINGS MAY BE USED ONLY FOR OFFICIAL
COMPETITIONS TO BE CARRIED OUT ON TRACKS,
AWAY FROM NORMAL ROAD TRAFFIC AND WITH THE
AUTHORISATION OF THE RELEVANT AUTHORITIES.

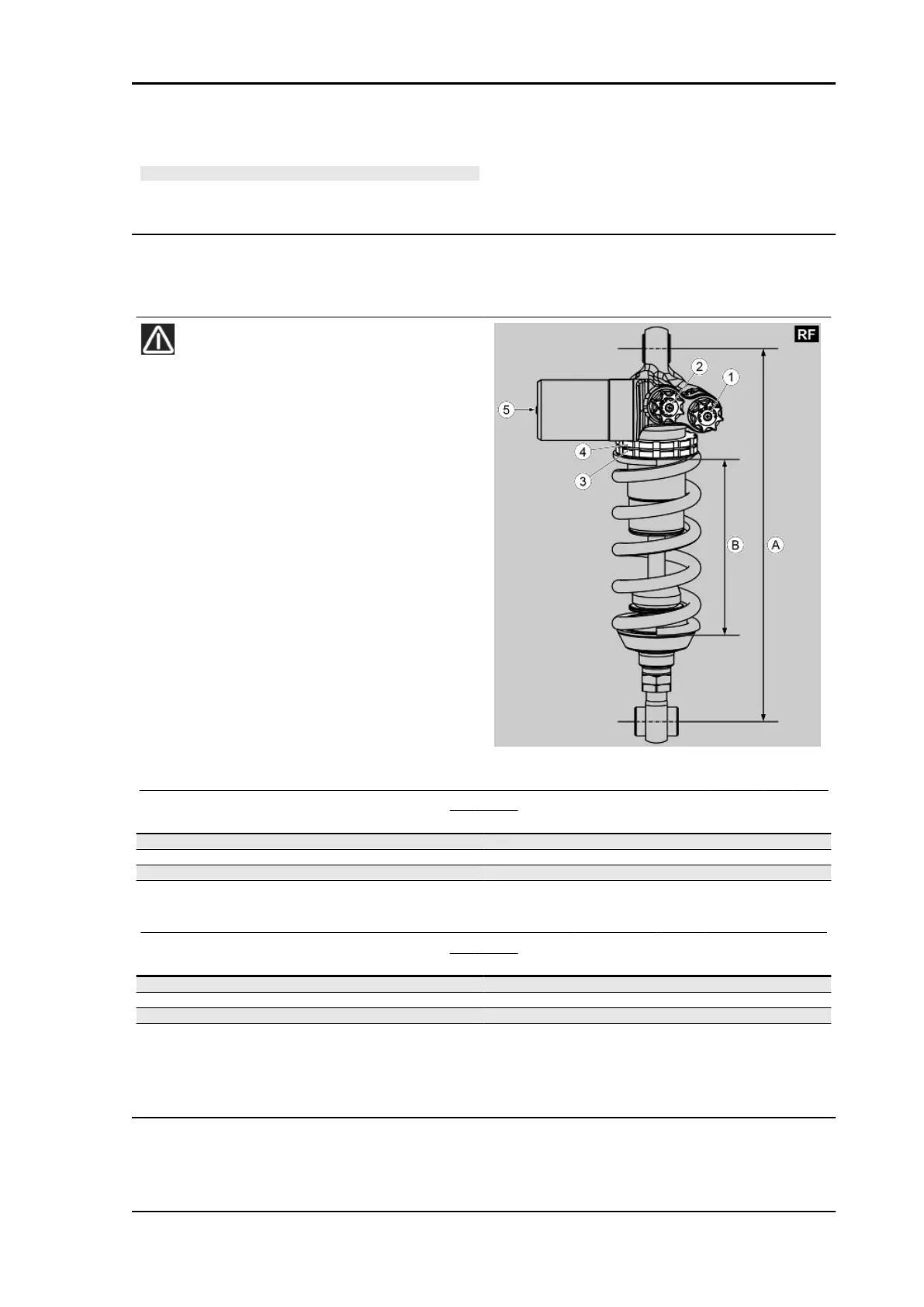

REAR SHOCK ABSORBER - RSV4 1000 RF - STANDARD ADJUSTMENT (ÖHLINS) (FOR ROAD
USE ONLY)
Specification Desc./Quantity
Shock absorber centre-to-centre distance (A) 314 mm (12.36 in)
(preloaded) Spring (B) length 146 mm (5.75 in)
Rebound adjustment, ring nut (1) open (**) 12 clicks from fully closed (*)
Compression adjustment, knob (2) open (**) 12 clicks from fully closed (*)
REAR SHOCK ABSORBER - RSV4 1000 RF - RACING ADJUSTMENT RANGE (ÖHLINS) ( TRACK
USE ONLY)
Specification Desc./Quantity
Shock absorber centre-to-centre distance (A) 314 mm (12.36 in)
(preloaded) Spring (B) length 146 mm (5.75 in)
Rebound adjustment, ring nut (1) from completely closed (*) open (**) 8 clicks (up to 12)
Compression adjustment, knob (2) from completely closed (*) open (**) 6 clicks (up to 12)
(*) = clockwise
(**) = anticlockwise
(PROCEDURE FOR SACHS FORKS)
RSV4 RR-RF Suspensions
SUSP - 433
