APRILIA RSV4 RR 2017 User Manual

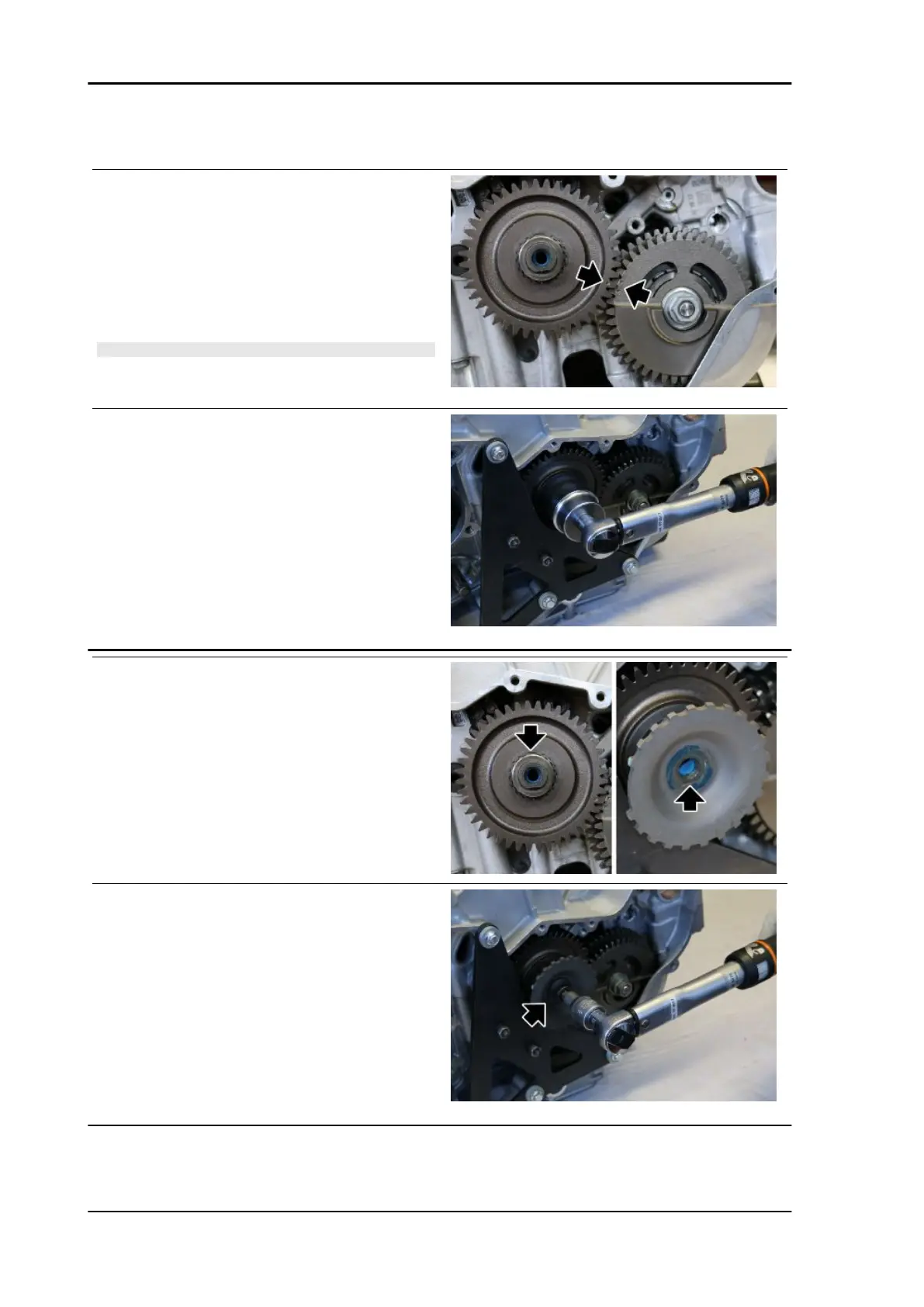

Installing the primary drive gear
•
Install the primary shaft gear correctly
in its seat on the crankshaft from the
clutch side.
•
Make the references on the gears of
the primary shaft and the countershaft
coincide.
NOTE
THE BURIN ON THE PRIMARY SHAFT GEAR TOOTH MUST
BE INSERTED INTO THE SLOT IDENTIFIED WITH TWO
BURINS ON THE COUNTERSHAFT GEAR.
•
Install the crankshaft blocking tool.
•
Tighten the primary shaft fixing nut.
Specific tooling
020850Y Primary gear lock
•
Insert the tone wheel on the crank-
shaft.
The crankshaft and the tone wheel have a bevel
that identifies the fitting direction.
•
Tighten the tone wheel fixing screw.
•
Remove the special tool.
Specific tooling
020850Y Primary gear lock
Preparation
To open the crankcase, first remove the following components:
Engine RSV4 RR-RF
ENG - 352
