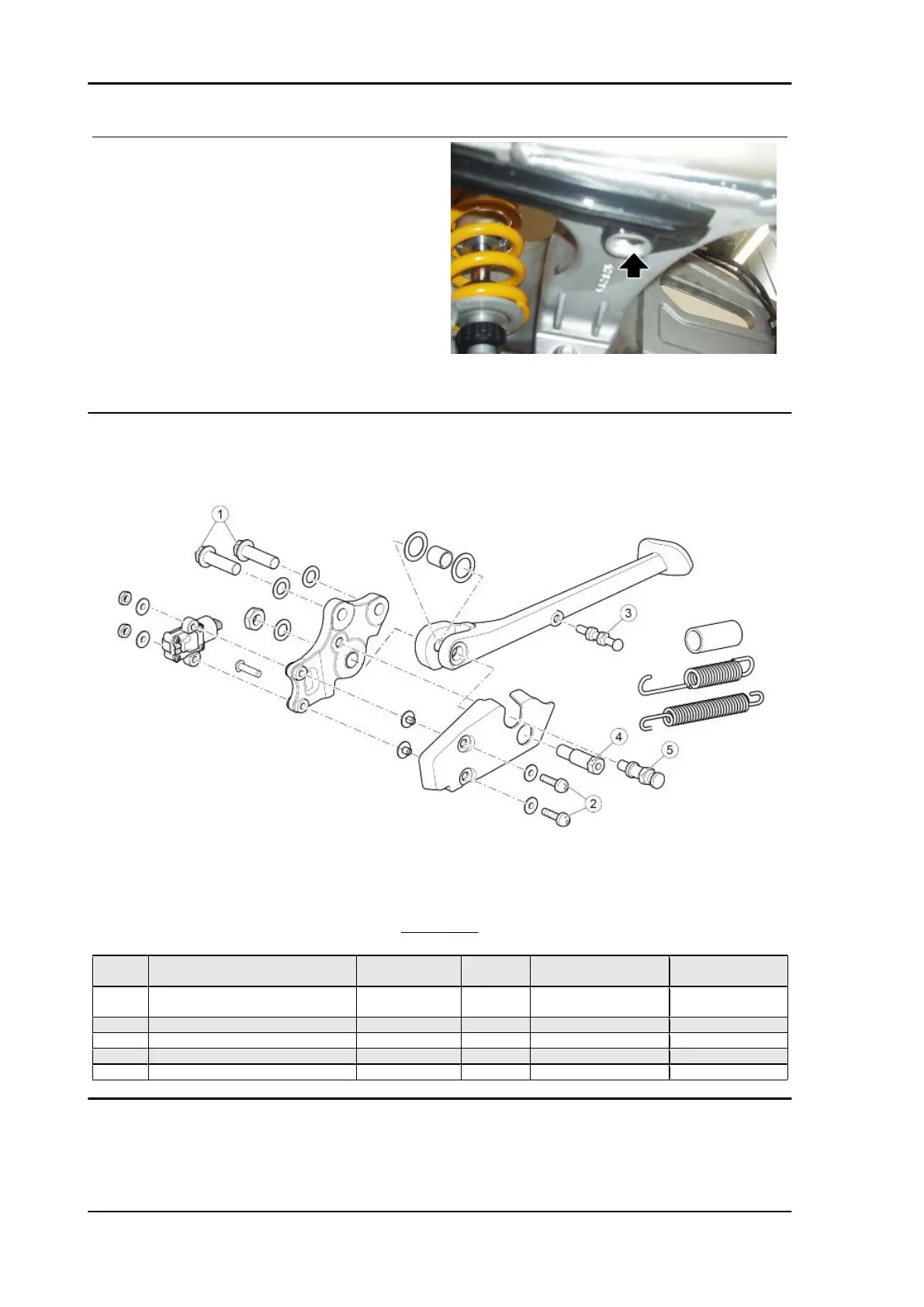

Unscrew and remove the lower screw
fixing the chain pad and retrieve the
washers.
•
Remove the chain skid (1).
Stand
SIDE STAND
Pos. Description Type Quantity Torque Notes
1 Screws for fastening the stand to the
frame
M10 2 45 Nm (33.19 lb ft) Loct. 243
2 Linear switch retaining screws and
nuts
M5 2 4 Nm (2.95 lb ft) -
3 - Spring retaining pin on stand - 1 10 Nm (7.38 lb ft) Loct. 243
4 Stand fastening pin - 1 15 Nm (11.06 lb ft) Loct. 243
5 Pin for retaining springs on stand pin - 1 22 Nm (16.23 lb ft) Loct. 243
- Rear stand bushing retaining screw M6 2 7 Nm (5.16 lb ft) -
Chassis RSV4 RR-RF
CHAS - 454
