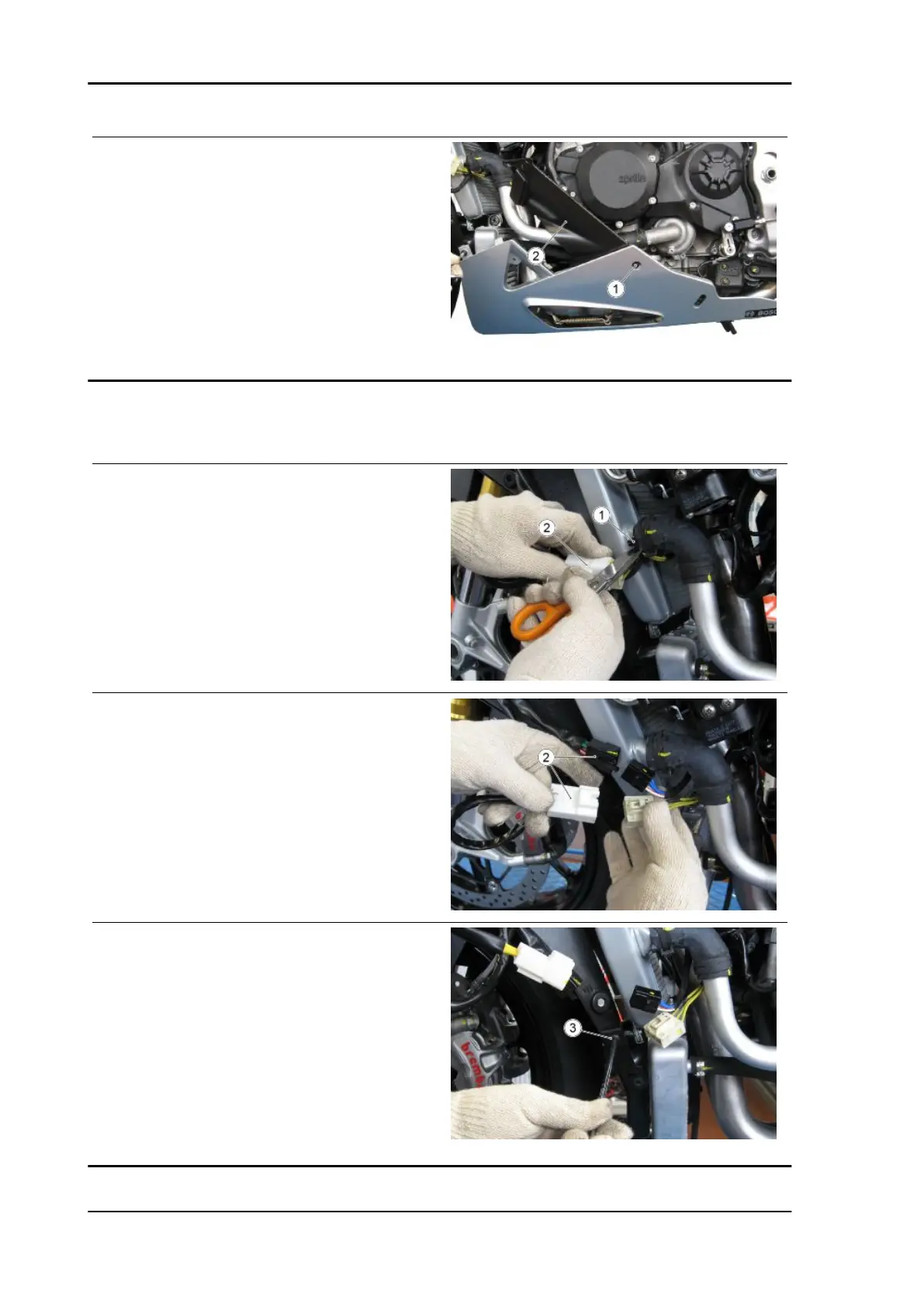

AIR DEFLECTORS
•
The following operations are valid for
both air deflectors
•
Remove the screw (1) fixing the de-
flector to the lower fairing
•
Remove the deflector (2)
Fairing mounting panels
•
Previously remove the side fairings
LATERAL UNDERFAIRINGS
•
Working from the left side of the mo-
torcycle, remove the clamp (1) locking
the wiring of the connectors (2) of the
alternator to the radiator.
•
Disconnect the connectors (2) of the
alternator to the radiator
•
Remove the lower fixing screw (3) of
the left inner fairing
Bodywork RSV4 RR-RF
BODYW - 530
