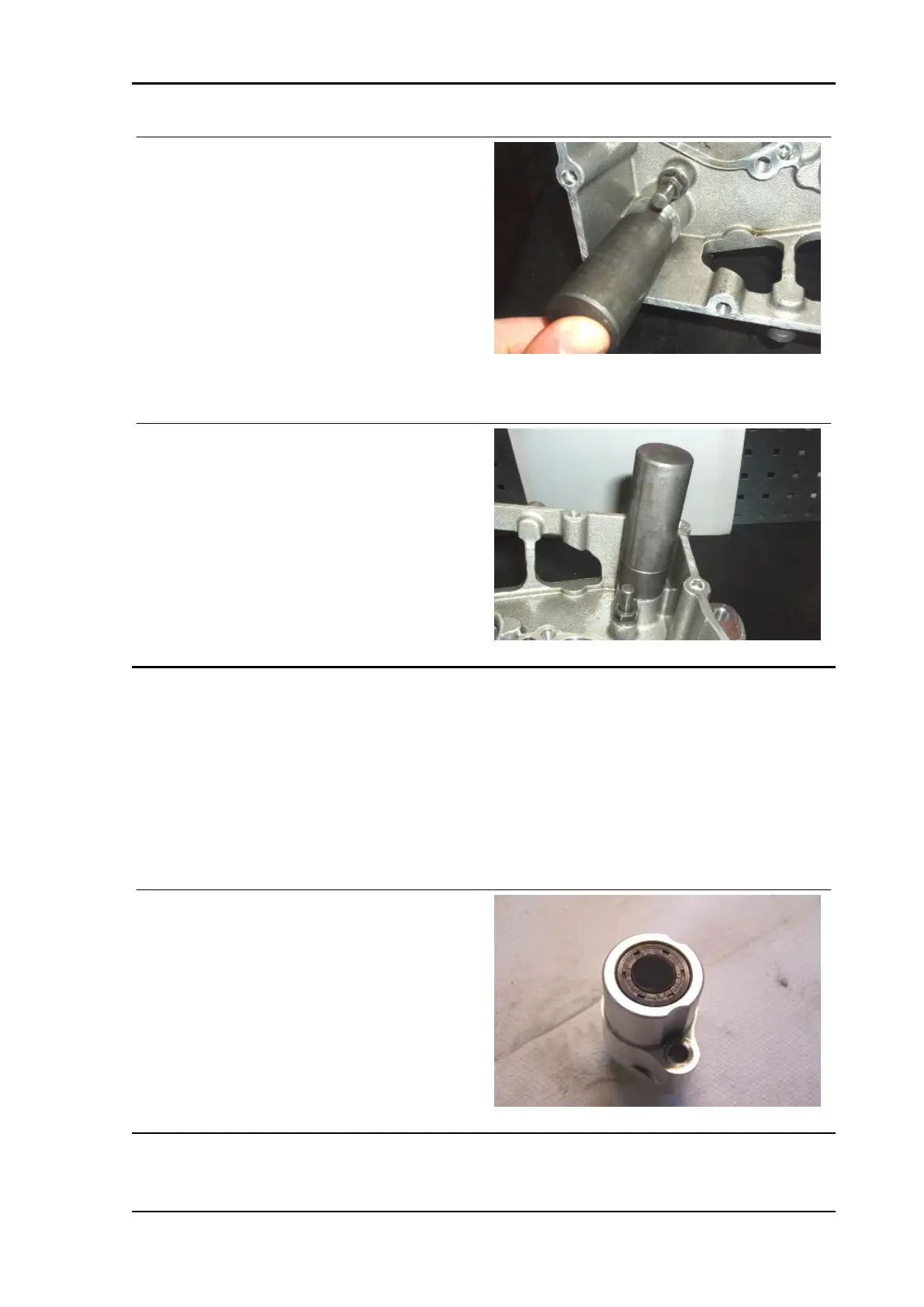

GEARBOX CONTROL ROD ROLLER CAGE,
CLUTCH SIDE
•
Remove the lower crankcase.
•
The specific tool without an adaptor
must be used to remove the gearbox
control rod roller cage from the clutch
side.
Specific tooling
020862Y Punch assembly cage with rollers
gearbox control rod..............
•
Fit the adaptor on the specific tool to
insert the roller cage at the controlled
depth.
•
Lubricate the seat and insert the new
roller cage from the clutch side.
Specific tooling
020862Y Punch assembly cage with rollers
gearbox control rod..............
GEARBOX CONTROL ROD OIL SEAL AND ROLLER CAGE, SPACER
•
Remove the gearbox control rod spacer.
•
Remove the oil seal and the roller cage.
•
Install a new gearbox control rod roller cage on the spacer, using the specific tool without
an adaptor.
Specific tooling
020862Y Punch assembly cage with rollers gearbox control rod..............
•
Position a new oil seal on the spacer
with the writing on the edge of the oil
seal facing outward.
•
Install the oil seal on the spacer using
the specific tool without an adaptor.
Specific tooling
020862Y Punch assembly cage with rollers
gearbox control rod..............
RSV4 RR-RF Engine
ENG - 283
