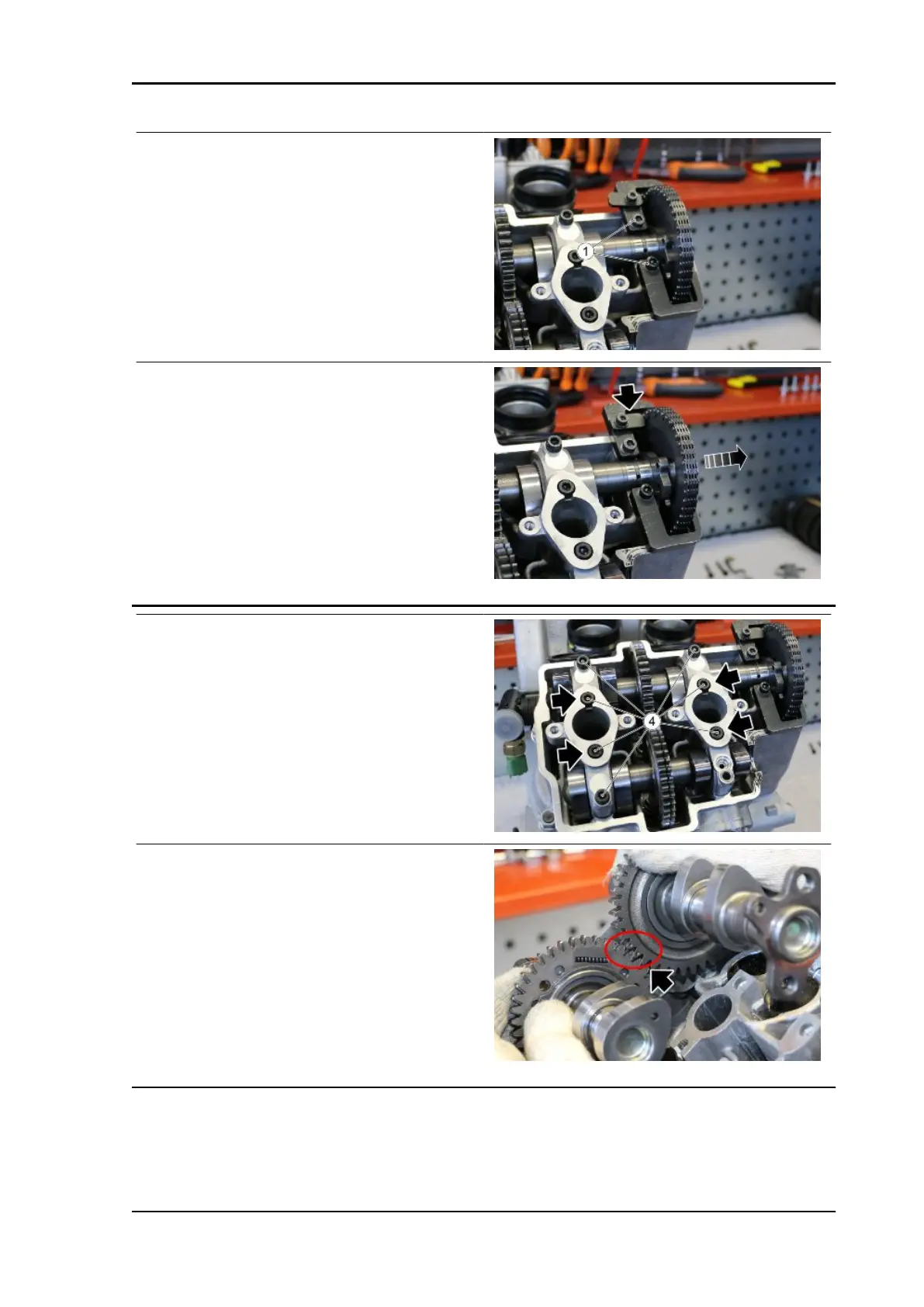

Install the specific camshaft gear sup-
port tool.
•
Fix it to the head using the two screws
(1).
Specific tooling
020956Y Support for camshaft gear on head
•
Move the gear from the camshaft to the
tool and make sure that it is locked by
fastening the tool's spacer.
•
Unscrew and remove the seven
screws (4), proceeding in stages and
diagonally.
•
Retrieve the washers from the screws
near the spark plug holes.
•
Remove the U bolts with the O rings
and locator pins.
•
Remove the intake and exhaust cam-
shafts.
If the two camshafts are timed correctly, the intake
camshaft gear tooth (indicated with one dot) is
meshed with the trough of the exhaust camshaft
gear (indicated with two dots).
Inspecting camshafts
CAMSHAFT TOOTHED WHEEL CHECK
RSV4 RR-RF Engine
ENG - 327
