WHEN REASSEMBLING THE CONNECTORS, THE SLIDES MUST SLIDE FREELY UP TO THE
LIMIT STOP, THUS FACILITATING THE CONNECTOR'S INSERTION. THE CATCH SHOULD SNAP
INTO PLACE ONCE THE LIMIT STOP IS REACHED.
Headlight assy.
•
Remove the top fairing complete
•
Remove the side air deflectors from the
top fairing
•

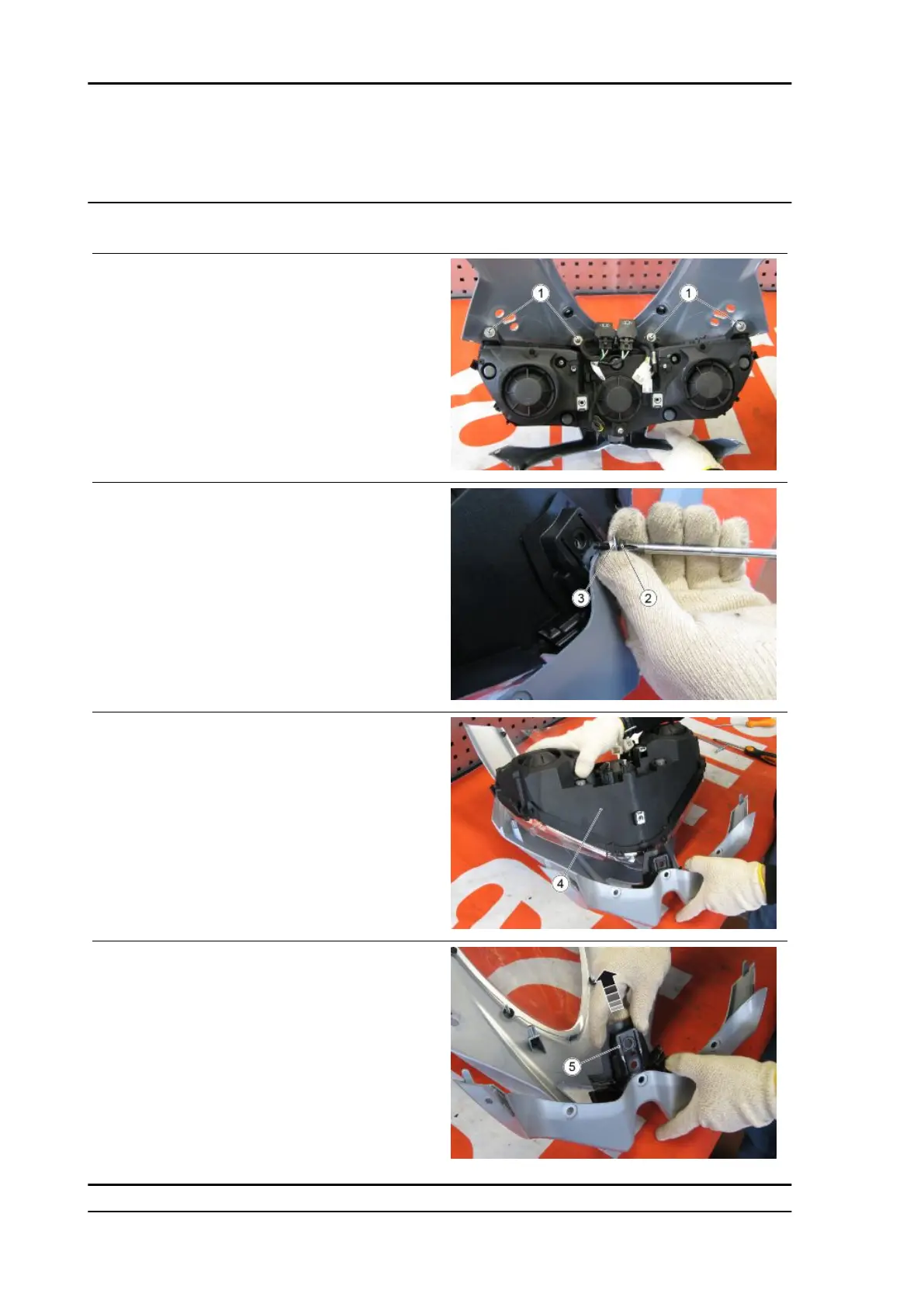

Remove the four fixing screws (1)
•
Remove the lower fixing screw (2) pay-
ing attention to collect the bush (3)
•
Remove the headlight assembly com-
plete (4)
•
Slide off the support (5) of the headlight
from the top fairing
Bodywork RSV4 RR-RF
BODYW - 522
