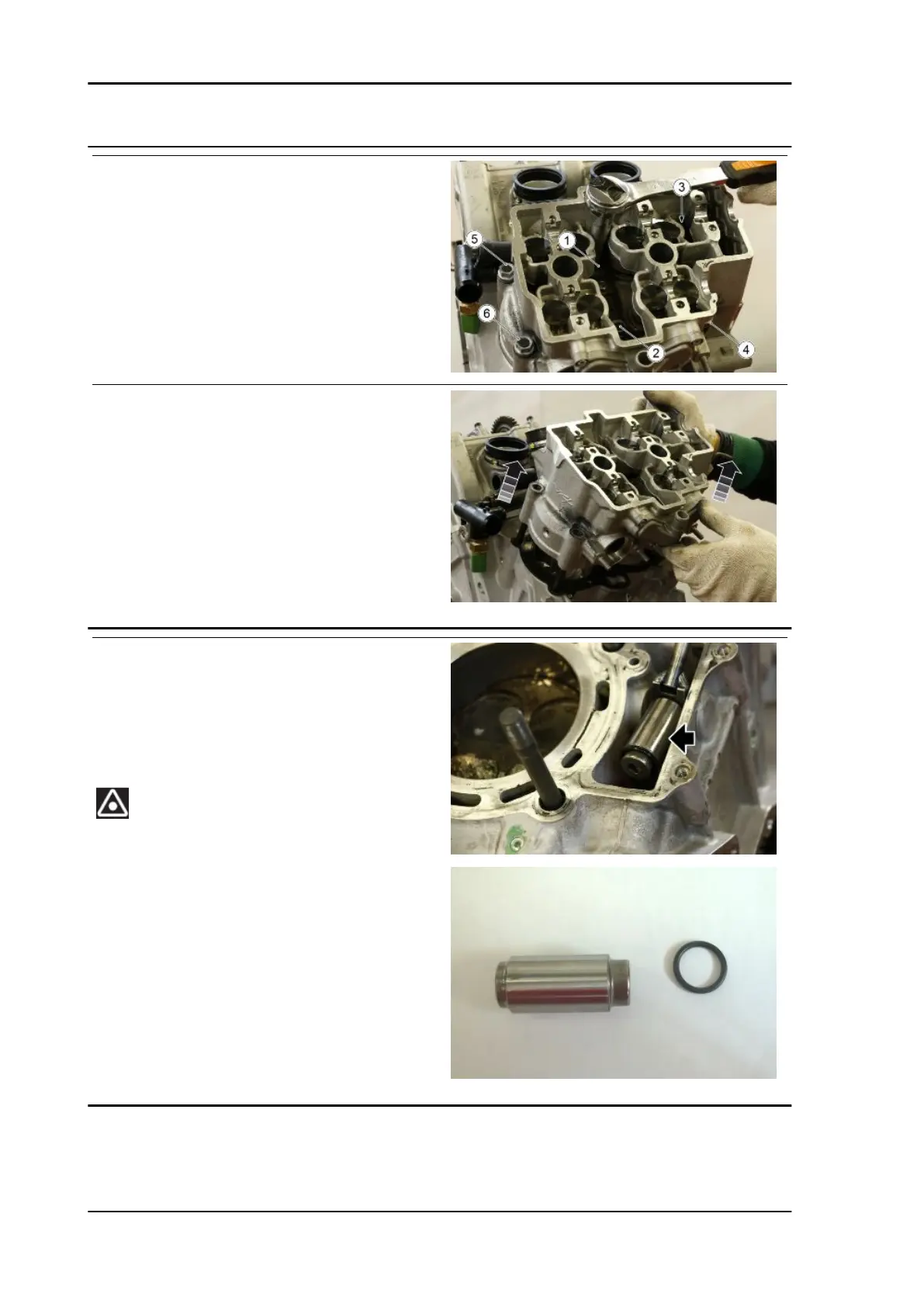

Loosen the six nuts on the stud bolts,
proceeding in the following order 6 - 5
- 4 - 3 - 2 - 1.
•
After loosening all nuts, remove them
in order indicated above.
•
Remove the rear head, slipping it off
the stud bolts.
•
Collect the gasket and the two dowel
pins.
•
Remove the chain tensioner complete
with O-ring using the specific tool.
•
If the O-ring is not on the chain ten-
sioner, make sure it was not left in the
crankcase seat.
REPLACE THE O RING UPON EACH REMOVAL.
Specific tooling
020883Y Fitting/removing timing chain ten-
sioner tool
Rear head check
Check that:
Engine RSV4 RR-RF
ENG - 334
