pos. Description Type Quantity Torque Notes
5 Upper yoke fixing cap M29x1 1 100 Nm (73.76 lb ft) -
6 Screw fastening shock absorber to
frame
M6 1 10 Nm (7.38 lb ft) Loctite 243
7 Screw fastening shock absorber to
lower yoke
M6 1 10 Nm (7.38 lb ft) Loctite 243
8 Lower cover fixing screws M6 2 8 Nm (5.90 lb ft) -
Adjusting play
•
Place the vehicle so that the front wheel is off the ground.
•
Carry out a handlebar rotation test, using a dynamometer at the hand grip external end.
•
The handlebar resistance to rotation must be of 450 (+250 / -100 g) (0.88 +0.55 / -0.22 lb)
in both directions.
•
Adjust if clearance is detected.
NOTE
THE STEERING COLUMN RESISTANCE TO ROTATION MUST BE PERFORMED IN THE TWO
OPPOSITE ROTATION DIRECTIONS.
THE STEERING DAMPER MUST BE DISCONNECTED DURING MEASUREMENT.
•

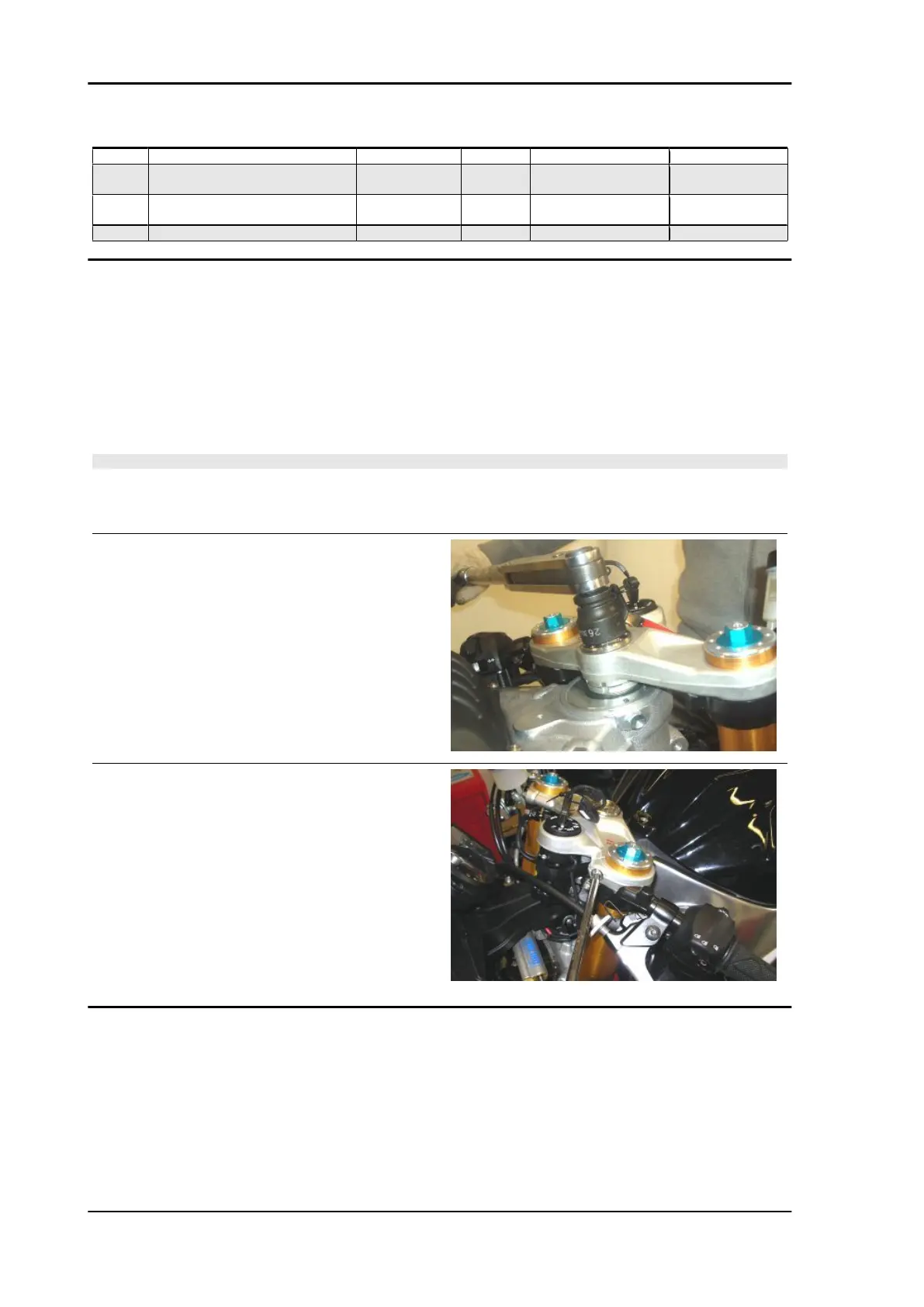

Unscrew and remove the top bolt on
the headstock and retrieve the washer.
•
Loosen the screws fixing the fork stan-
chions to the upper yoke.
Suspensions RSV4 RR-RF
SUSP - 418
