11. Convergence
11.1 Convergence controls
Extended control knobs
As the DMD of the red channel is not accessible in the projector, it remains fixed. Therefor the image of this DMD will be taken as
reference. Blue and green ma y be aligned onto red wh en a small c onvergence drift is recognized. T he b lue and green channels
have pivot plates equipped with three control knobs for convergence adjustment, two of which are ex tended (reference 2, 3, 5 and
6 of image 11-1) . The adjustment knobs are numbered from 1 to 6 and have the same color as the channel which they affect.
To access the control knobs the top cover and left side c over of the projector and the top cover plate and s ide cover plate of the
Light Processor c ompartment have to be removed. For easy access to control knobs No1 and No4, we advise locating the Light
Processor top fan unit in it’s upper position, hereby still providing the neces sary cooling to the unit.
1
4
6
5
2
3

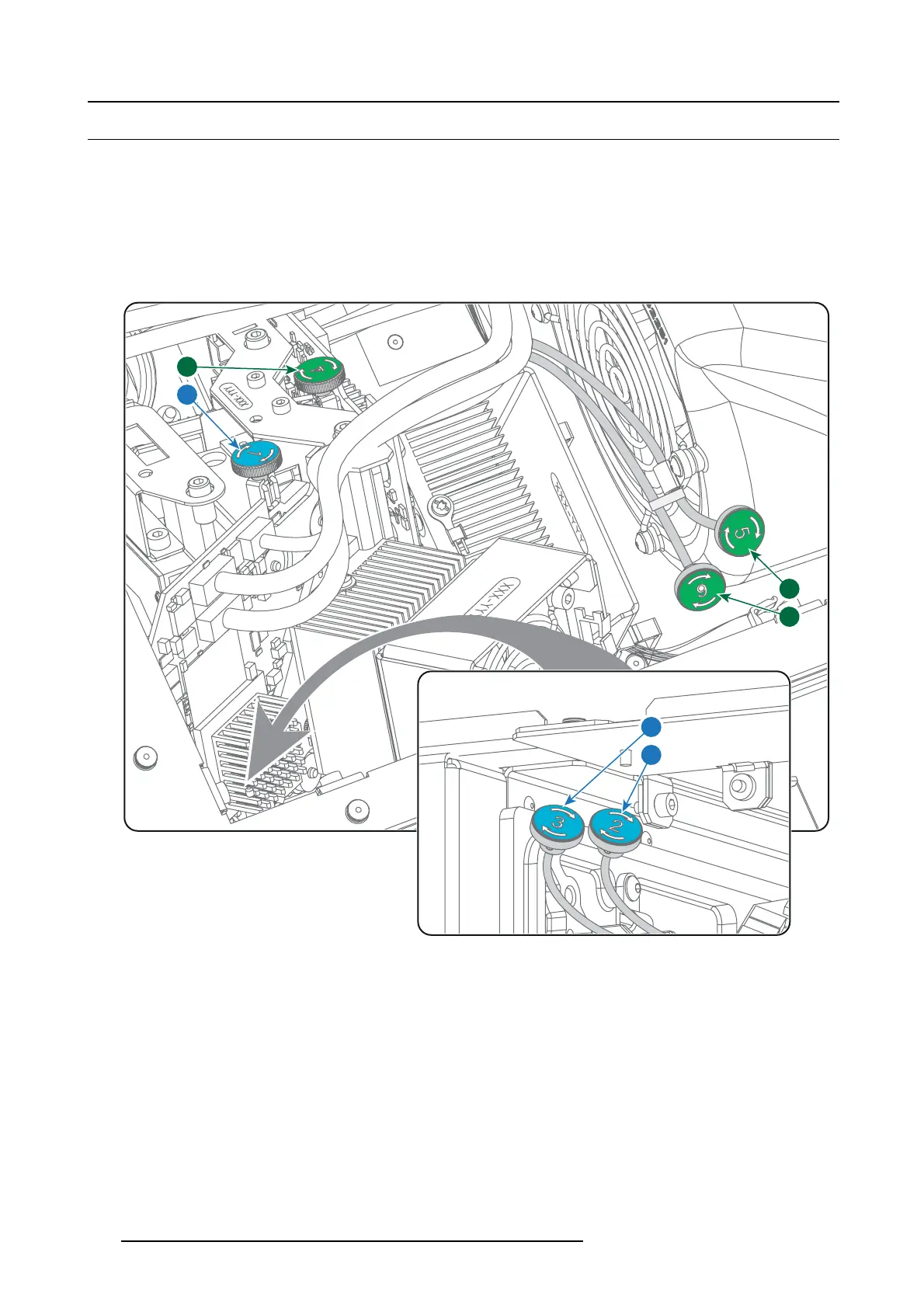

Image 11-1
1 Blue channel, knob number 1.
2 Blue channel, knob number 2.
3 Blue channel, knob number 3.
4 Green channel, knob number 4.
5 Green channel, knob number 5.
6 Green channel, knob number 6.
106 R5906847 DP2K SLP SERIES 02/06/2017
