Barco DP2K SLP Series User Manual

6. Input & Communication
6.4 Integrated Cinema P rocessor (ICP)
In case the pro jector is equipped with a Barco ICMP no ICP bo ard is inserted. All ICP functionality is integrated
in the Barco ICMP.

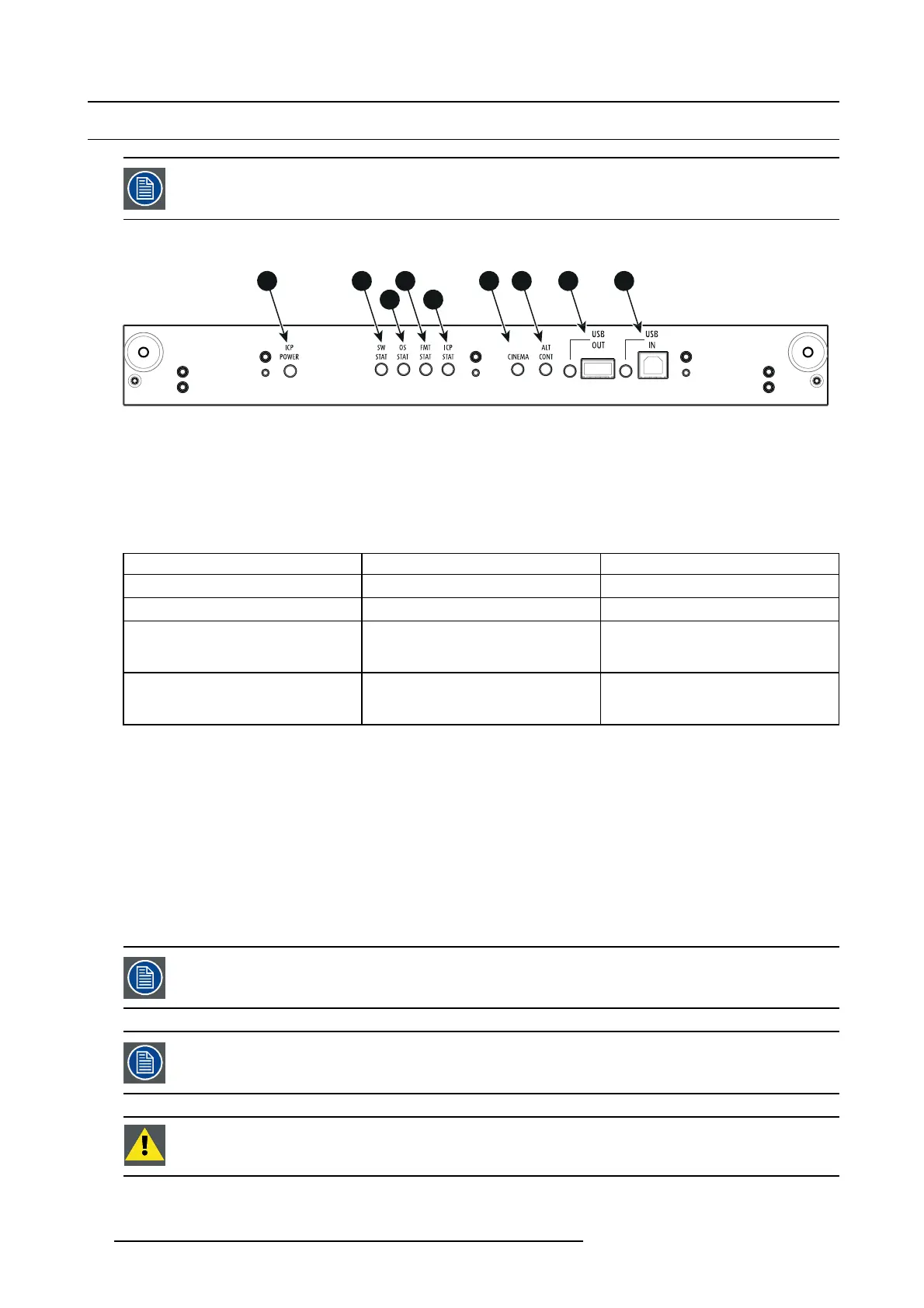

LEDs a nd ports on the Integrated Cinema Processor
USB
OUT
USB
IN
ICP
POWER
SW
STAT
OS
STAT
FMT
STAT
ICP
STAT CINEMA
ALT
CONT
1 2
3
4
5
6 7 8 9
Image 6-4
1 ICP is powered.
2 ICP software state, normal operation is green blinking.
3 ICP op erating system state, normally fu ll gre en .
4ICPFMTconfiguration state, normally full green.
5ICPMAINconfiguration state, normally full green.
6 CINEMA port selected. When on, LE D 7 will be out.
7 ALTERNATIVE port selection. When on, LED 6 will be out. (note that this function is disabled. Led never lights up)
8 USB, for future use.
9 USB, for future use.
LED diagnostic
State description
Normal ope ration Error state
Software state (LED reference 2) flashing green
red or orange
Operating System s tate (LED reference 3)
green
off, red o r yellow
FM T FPGA state (LED reference 4)
green
red : unable to configure the FP GA
yellow : FPGA is loaded with the Boot
application
ICP FPG A state (LED reference 5)
green
red : unable to configure the FP GA
yellow : FPGA is loaded with the Boot
application
ICP functions:
• Stores all projector files. W hen board is replaced; clone pa ckage must be reloaded.
• Stores and g enerates test patterns.
• Scaling to n ative res olution, re-sizing, ma sking, line-insertion de- interlacing, subtitle overlay, color s pace conversion,
de-gamma, color correction
• Source Selection between alternative content and cinem a content.
• Store s a Ce rt i ficate and Private Key needed for Playback validation
• Contains a re al time clock, which m ust be synchronized with the GMT/UTC time s tored in the link decryptor module o r Integrated
Media Block (see Communicator software)
• Handles unpacking of special video formats
The ICP board spare part kit is not default programmed for a DP2K S LP-series projector. When using this
board in a DP2K S L P-series p rojector the software mu st be re-installed after installation of the board .
When installing a new ICP board in a DP2K SLP -series projector the Spatial Color Calibration file must be
reloaded an d activated.
CAUTION: M ake sure not to short circuit the battery on the board. That will destroy the board completely !
46 R5906847 DP2K SLP SERIES 02/06/2017
