11. Convergence
11.5 Closing off the Light Processor compartment
Necessary tools
•7mmflat screwdriver.
• 3mm Allen wrench.
How to close off the Light Processor compartment?

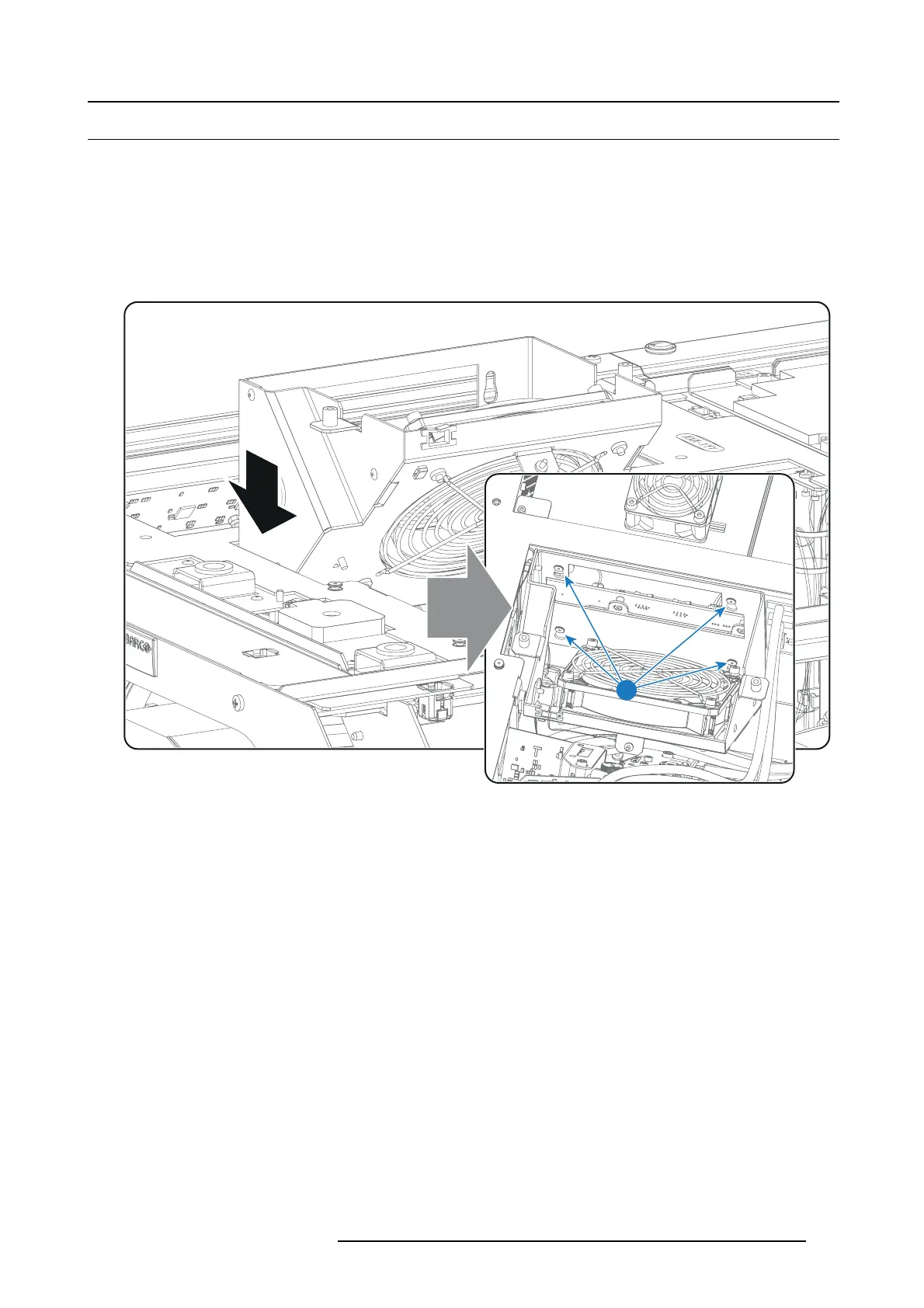

1. Place the fan on top of the Light Processor in the lower position . Ensure that the four mounting pins (reference 1 image 11-11)
of the fan assem bly are engaged.
Caution: Take care of the wire.
1
Image 11-11
2. Install the top cover p late of the Light Processor compartment.
3. Install the side cover plate of the Light Processor c ompa rtment.
4. Install t he top cover of the pr ojector.
5. Install the left side cover of the projector.
6. Switch on the projector.
7. Clear the security warning. See procedure page 130.
R5906847 DP2K SLP SERIES 02/06/2017
111
