5. Lenses & Lens selection
5.2 Lens selection
WhichlensdoIneed?
1. Go to Barco’s website on www.barco.com and click on m yBarco
2. Login on .
If you are not y et registered create a login a nd pas sword. With the created login and password, it is poss ible to enter myB arco .
When your login is correct, the start page is disp layed.
3. Click the Support tab, then Digital cinema calculator (on the left of the screen) and select the appropriate lens calculator.

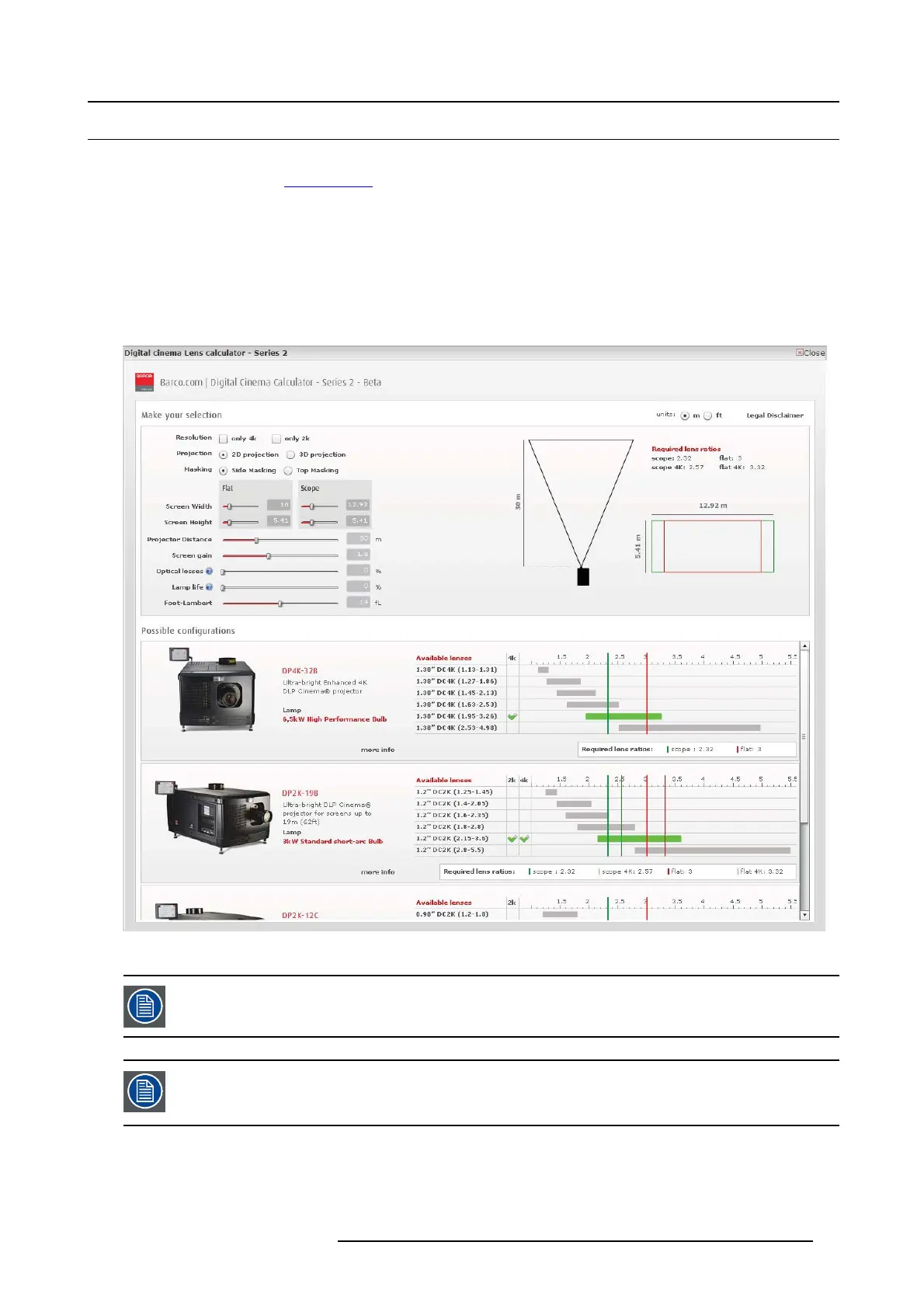

The lens calculator (see screenshot, image 5-6) will be displayed.
The lens calculator allows you to have an overview of which lenses are suitable for your specific projector setup. Just ma ke yo u r
selection of parameters and all pos sible configur ations are displayed.
Image 5-6
Digital cinema lens calculator
Take into acco unt that when the p rojector is tilted the Screen Width you have t o fi ll in should be larger than
the physical screen w idth due to the keyston e d istortion of the p rojected image. How mu ch larger depends
ontheamountoftilt.
Due to production tolerances the real dis tances can differ by 2% from the calcu lated va lues.
For critical situations (fixed installs that use the lens at one of its extreme zoom positions) this should be
taken into account.
R5906847 DP2K SLP SERIES 02/06/2017 35
