5. Lenses & Lens selection
5.5 Lens shift, zoo m & focus
Motorized lens adjustment
The D P2K SLP- series is equipped with a motorized lens shift and zoom & focus functionality.
Maximum shift range
The lens can be shifted with respect to the internal optics of t he p rojector (DMD) whic h results in a shifted image on the screen
(Off-Axis). A 100% shift means that the centre point of the projected image is shifted by half the sc reen size. In other words, the
centre p oint of the projected image falls together with the outline of the image in an On-Axis projection. Due to mechanical and
optical limitations the shift range is lim ited as well.
All lenses have a shift range of 50% u p, 50% down, 30% left, and 30% right. This range is valid for all throw ratios. Within these shift
ranges the projector a nd lens perform excellently. Configur ing the projector outside these s hift ranges will result in a slight decline
of image quality.
U
D
SIDE VIEW
P
F
TOP VIEW
P
F
L
R
+50%
-50%
-30%
+30%
U
D
L R
P
F
+50%
-50%
-30% +30%

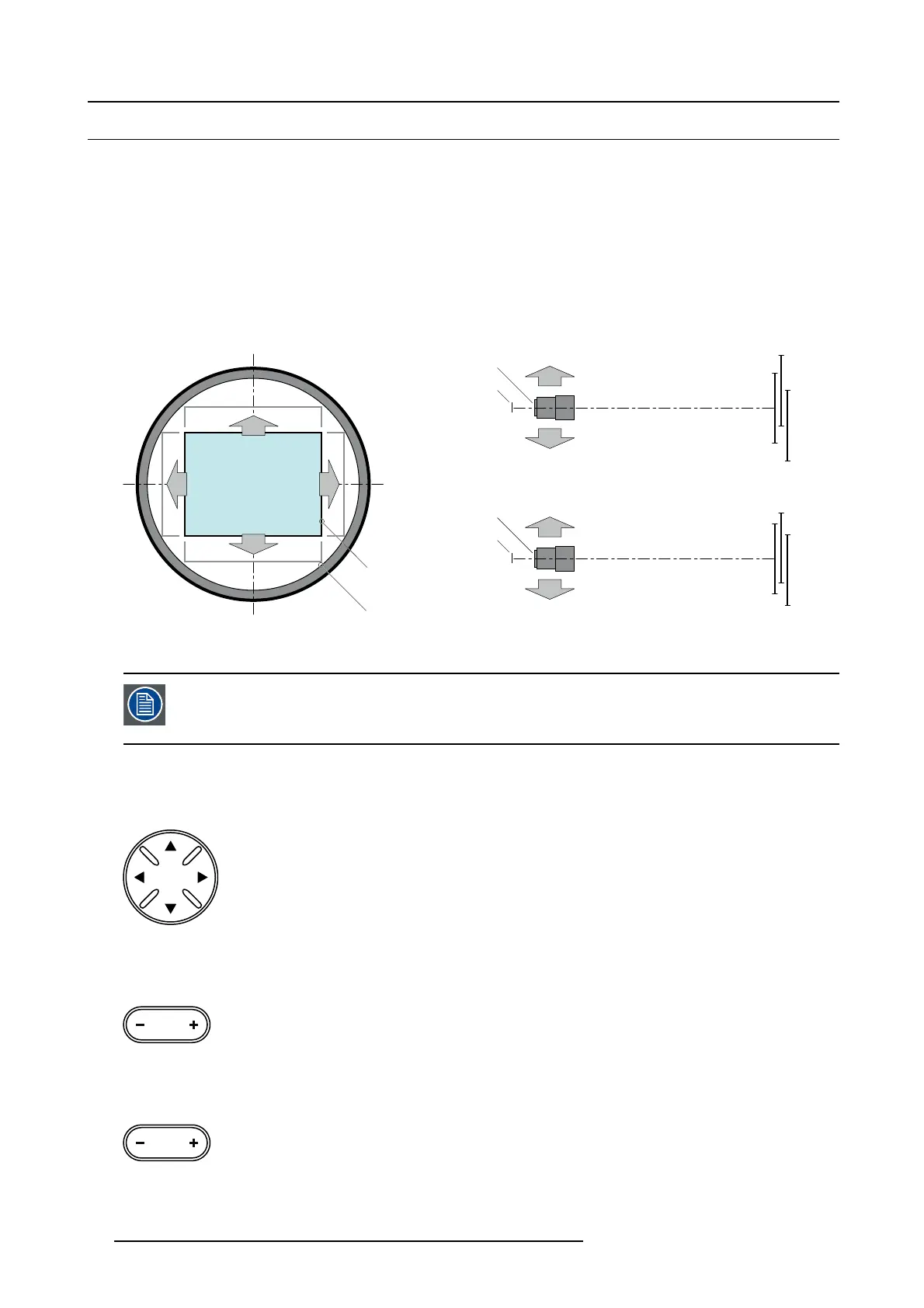

Image 5-10
PDMD.
F Field of view.
It’s mec hanical possible to shift outside the reco mm ended field of view (±90% UP/DOW N and ±50%
LEFT/RIGHT), but this will result in a decline of image quality depending on the used lens and the zoom
position of the used lens. Furthermore, shifting too much in both directions will result in a blurred image
corner.
How to shift the lens of the DP2K SLP-series ?
1. Use the up and down arrow buttons on the Loc al Keypad to shift the lens vertically and use the left and right arrow buttons
on the Local Keypad to shift t he lens horizontally.
SHIFT
Image 5-11
How to zoom in or out?
1. U se t he “+” an d “-” zoom buttons on the Local Keypad to zoom in or out.
ZOOM
Image 5-12
How to focus?
1. Use the “+” and “-” focus
buttons on the Local Key pad to focus the image on the screen.
FOCUS
Image 5-13
38 R5906847 DP2K SLP SERIES 02/06/2017
