7. ICMP

About this chapter

This c hapter describes the ICMP in general, the HDDs, the input ports and the com munication ports. Furthermore, the status LEDs

are described and the importance of the device certiﬁcate is illustrated.

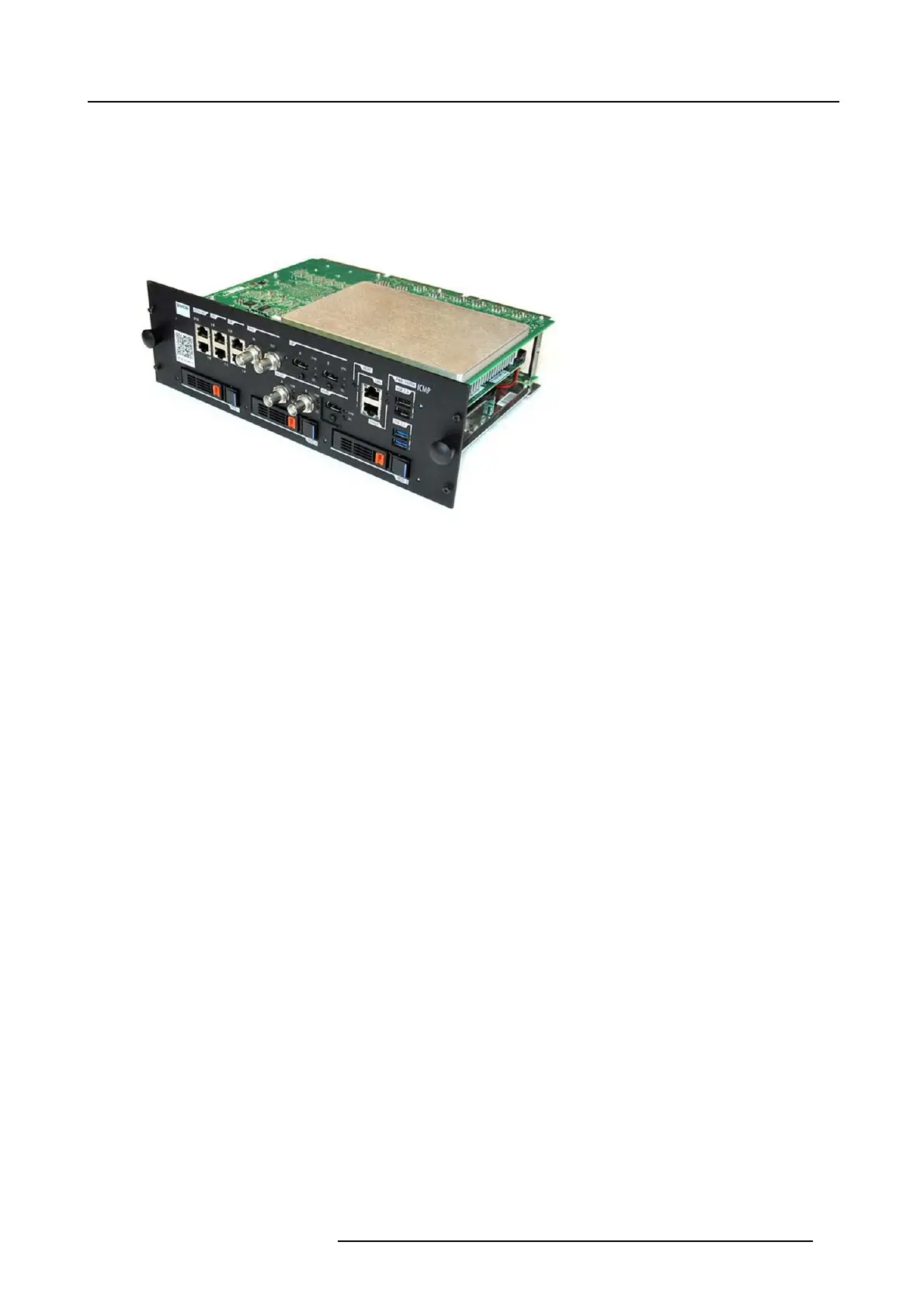

Image 7-1

Overview

• ICMP introduction

• ICMP HDD

• ICMP communication ports

• ICMP source input ports

• ICMP DisplayPort speciﬁcations

• ICMP SDI speciﬁcations

• ICMP HDMI 2.0 speciﬁcations

• ICMP HDMI 1.4 speciﬁcations

• ICMP status LEDs

• ICMP HDD status LEDs

• ICMP device certiﬁcate

•ICMPconﬁgura tion via Communicator

• ICMP reset

• Obtaining the Barco ICMP certiﬁcate

• Removing a HDD from the ICMP

• Installing a HDD into the ICMP
