8. Communicator Touch Panel
8.1 Communicator Touch Panel
Communicator Touch Panel for digital cinema projectors
The Comm unicator Touch Pa nel is designed for multi-user command and control. The Communicator enables users to learn quickly
and operate efficiently - using an elegant and flexible Touch Panel interface. T he interface’s commonality means that operators
can intuitively use any model in the product line, without restriction, and its user-friendly nature translates directly into a short and
enjoyable learning curve.

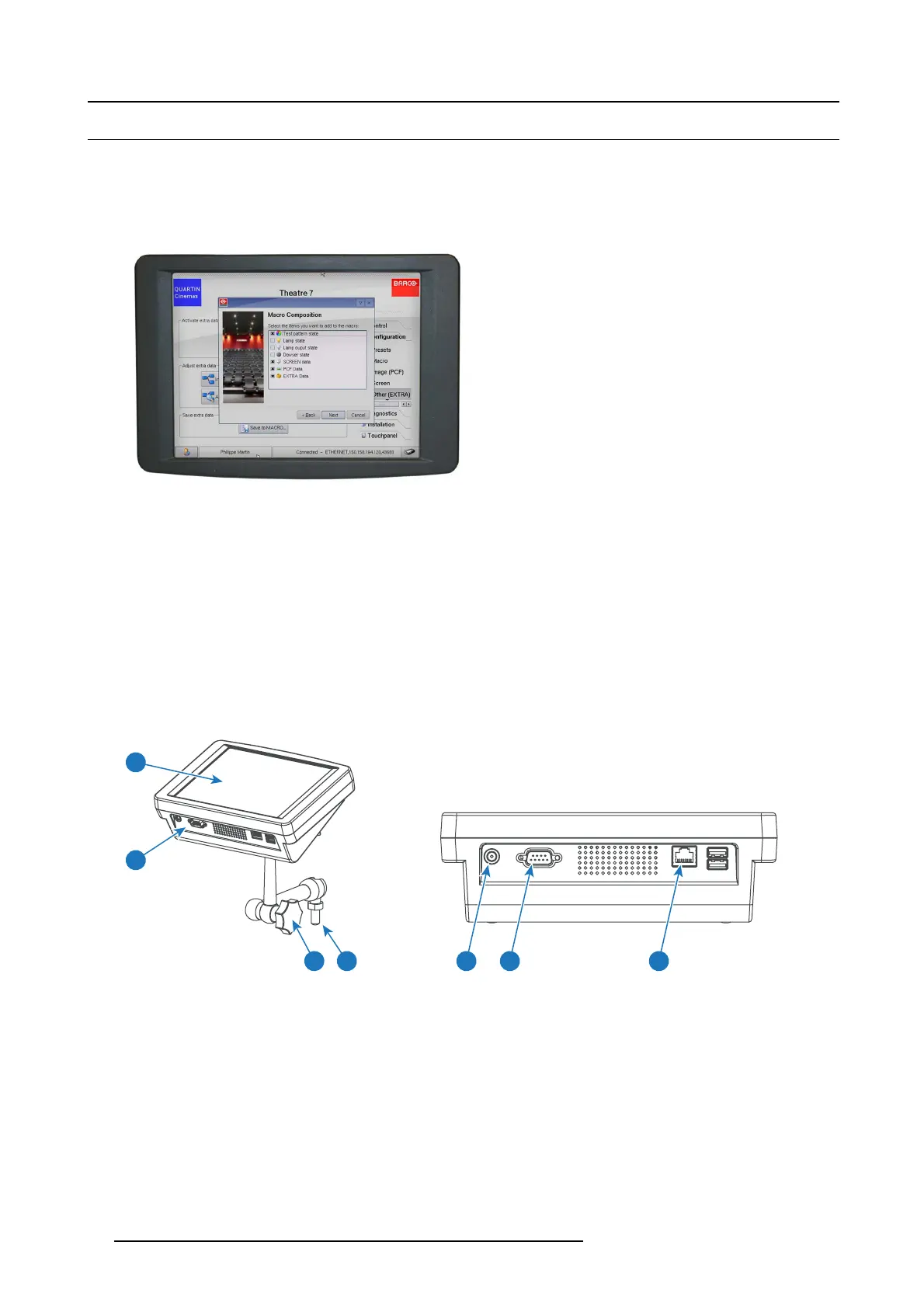

Image 8-1
Flexible Touch Panel interface
The Touch Panel interface can be mounted upon a swivel arm which easily fits on top of the DP2K SLP -series. One ce ntral locking
mechanism of the swivel arm allows instant fixation of the Touch P anel interface in any position.
The Touch Panel interface can also be installed further away from the DP2K SLP-series. For this purpose an Ethernet cable up to
50 meter can be used to realize a direct data com munic ation between the DP2K S LP-series and the Communicator Touch P anel.
The Touch Panel interface can also be connected via a Local Area Network (LAN) in the sam e way as the DP2K SLP- series. In this
config uration both devices can communicate w ith each other as well.
The Touch P anel interface requires a voltage supply +12 VDC and 1,5 ampere . Note that the DP 2K SLP-series has a 12 VDC
output which can be used to power up the Touch Panel interface. Nevertheless, the use of a separate +12 V DC adaptor ( 1,5 ampe re
minimum) is required in case the Touch Panel interface is installed m ore then a few meters away from the DP2K SLP-series.
Parts location of the Touch Panel interface
1
2
3 4 5 6 7
Image 8-2
1 Touch screen
2 Communication panel
3 Knobtooperatecentralswivelclamp
4Baseofswivelarm
5 Power input 12 VDC, 1.5A
6 RS232 port (sub-D)
7 Ethernet port (RJ45)
84 R5906847 DP2K SLP SERIES 02/06/2017
