B. Pin configurations
B.3 P in configurations of the ICMP communication ports

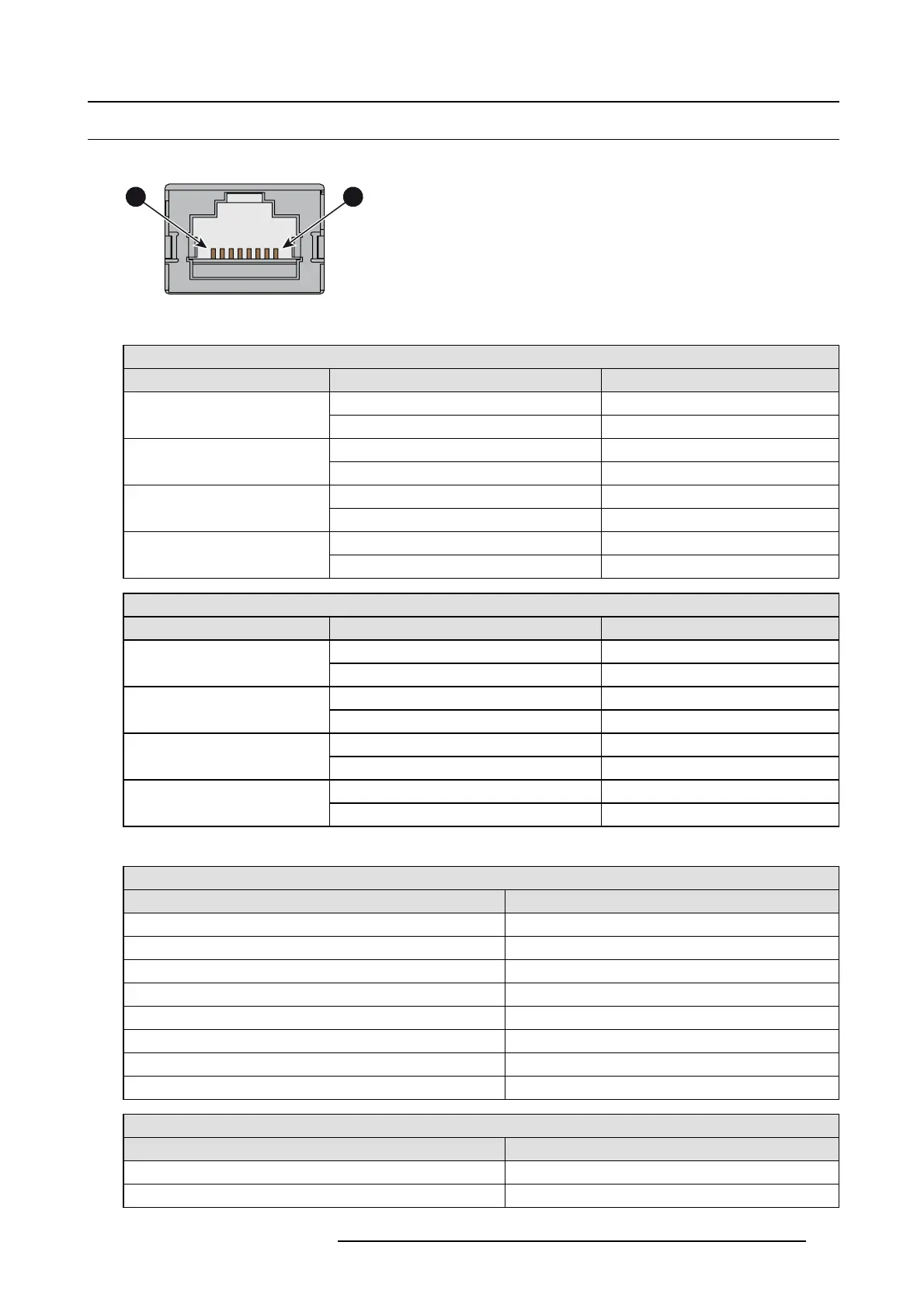

RJ-45 pin configuration
P1P8
Image B-3
Audio Channels:
AUDIO-AES 1-8
Audio channel
AES pair
RJ-45 pin
1+ 11, 2
1- 2
2+ 33, 4
2- 6
3+ 45, 6
3- 5
4+ 77, 8
4- 8
AUDIO-AES 9-16
Audio channel
AES pair
RJ-45 pin
5+ 19, 10
5- 2
6+ 311, 12
6- 6
7+ 413, 14
7- 5
8+ 715, 16
8- 8
General Purpose Output:
GPO 1-4
Definition RJ-45 pin
EXT_GPOU T_1_P 1
EXT_GPOU T_1_N 2
EXT_GPOU T_2_P 3
EXT_GPOU T_2_N 4
EXT_GPOU T_3_P
5
EXT_GPOU T_3_N 6
EXT_GPOU T_4_P
7
EXT_GPOU T_4_N 8
GPO 5-8
Definition RJ-45 pin
EXT_GPOU T_5_P 1
EXT_GPOU T_5_N 2
R5906847 DP2K SLP SERIES 02/06/2017 155
