Bosch ACS 651 User Manual

1 689 988 238 2012-11-06| Robert Bosch GmbH
Product description | ACS 651/751 | 75
en
3.4 Description of function
The ACS 651/751 is a fully automatic, compact, portable
A/C service unit. The ACS 651/751 can be operated manu-
ally or automatically.
3.4.1 Handles
The handles (Fig. 1, Pos. 1) can be used to move the
ACS 651/751 easily.
3.4.2 Human Machine Interface (HMI)
i
C
!
HP
LP
1
2
3
5
4
6
7
1
2
3
4
5
6
7
8
9
*
+
0
ABC
123
]
459897_6Nkv

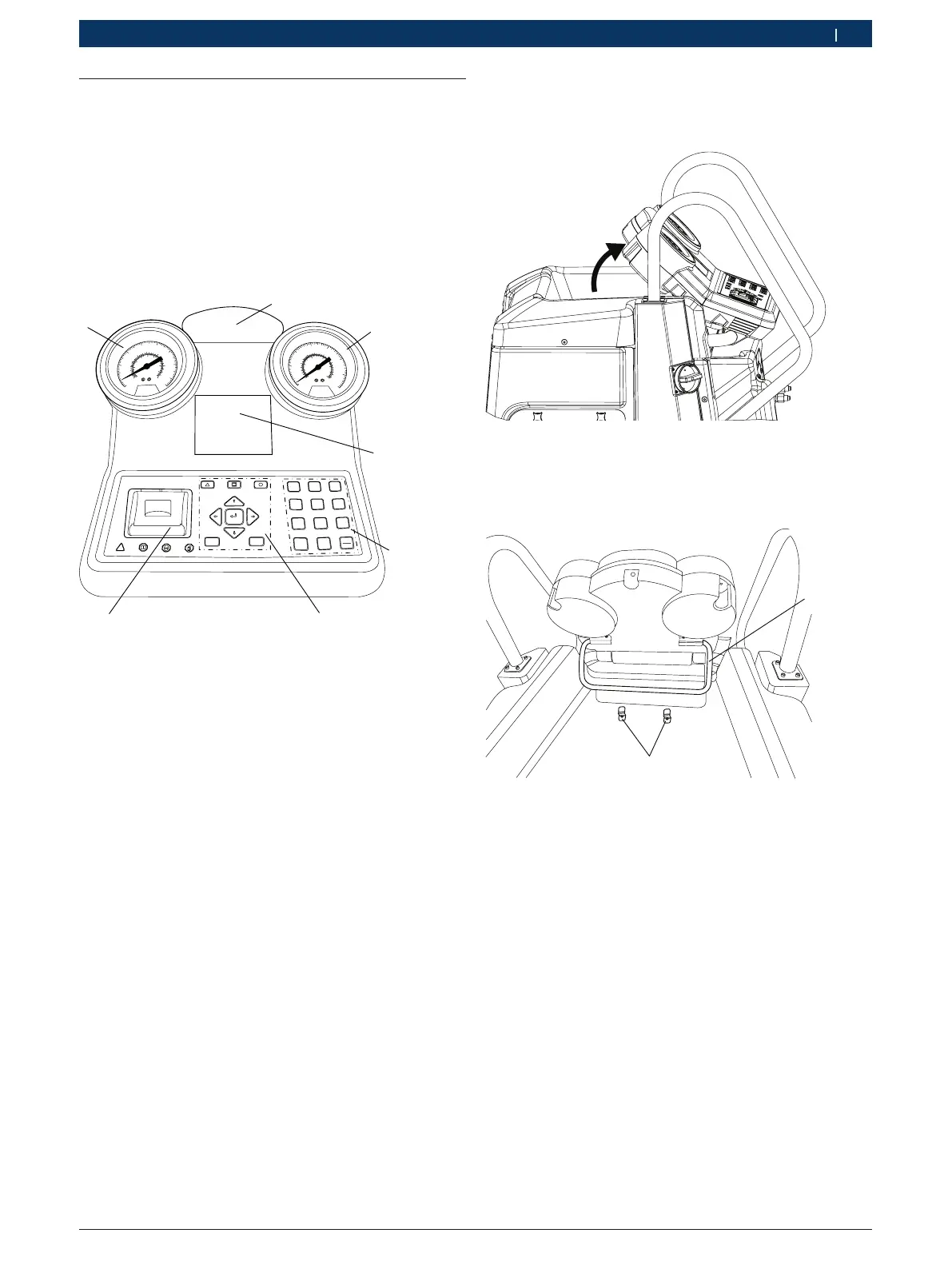

Fig. 3: ACS 651/751 HMI module
1 HP gauge
2 Status and warning light
3 LP gauge
4 LCD
5 Input keys
6 Selection and function keys
7 Printer
The HMI module can be lifted and locked in position
using the HMI support (Fig. 5, Pos. 1) on the rear of the
HMI module.
459897_17Nkv
Fig. 4: Lifting the HMI module
Pull out the HMI support (Fig. 5, Pos. 1) under the HMI
module. Slide the HMI support under the locking plates
(Fig. 5, Pos. 2) on the top panel.
2
1
Fig. 5: Fixing the HMI module in position
1 HMI support
2 Locking plates
The pressure gauges (Fig. 3, Pos. 1 and 3 ) on the HMI
module are used to monitor the pressure during various
stages of the vehicle A/C service. The status of various
phases during the service is displayed on the multicolor
LCD display (Fig. 3, Pos. 4). Inputs required during the
service are made via input keys (Fig. 3, Pos. 5) on the
keypad.
The selection and function keys (Fig. 3, Pos. 6) on the
keypad can be used to navigate between menu options
in the user interface.
