1 689 988 238 2012-11-06| Robert Bosch GmbH
80 | ACS 651/751 | Commissioningen

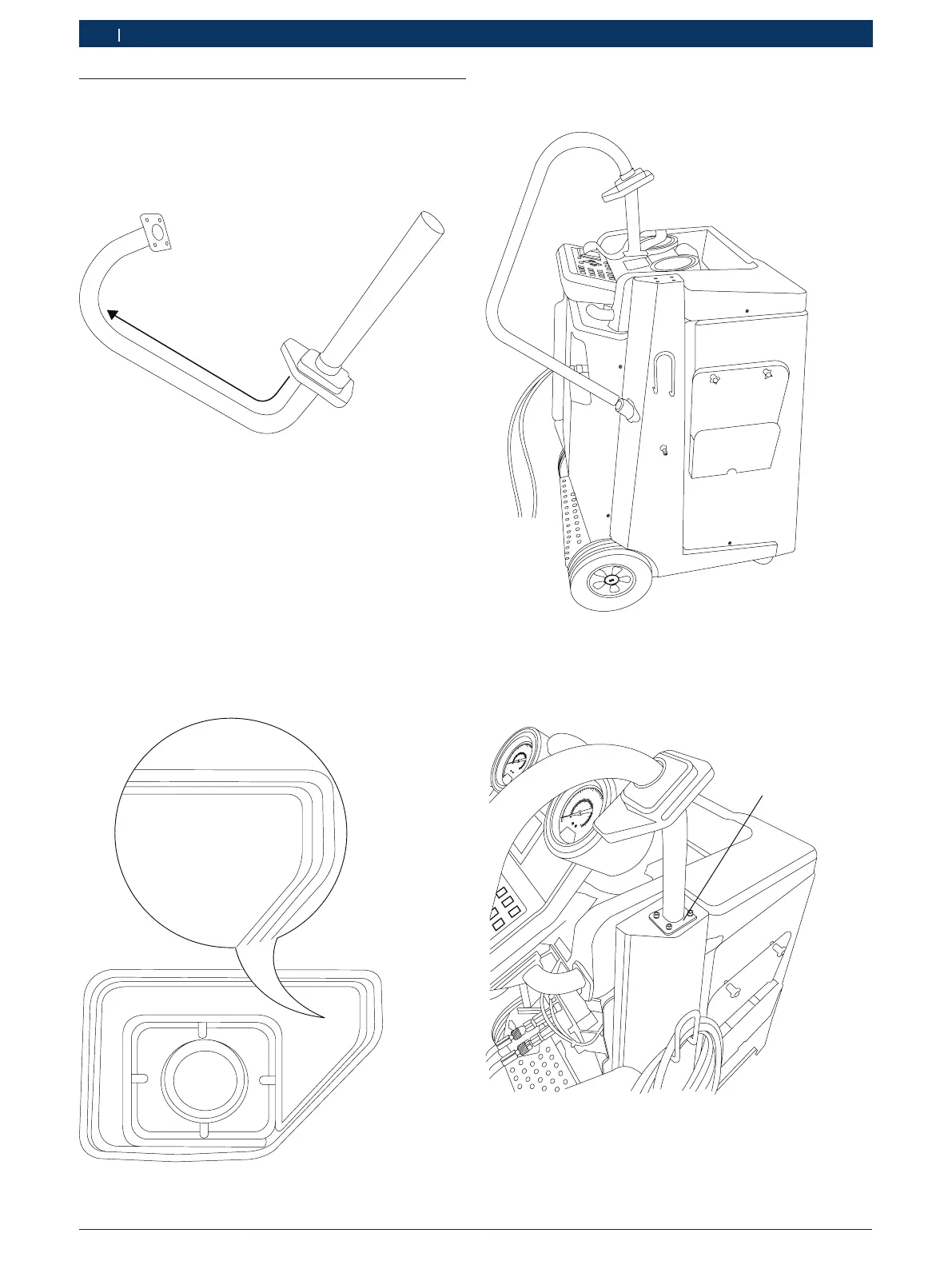

4. Insert the end of the handle without the flange into
the grommet.
459897_62Nkv
Fig. 17: Inserting the handles into grommet
5. Place the other end of the handle such that the
flanged end (Fig. 18. Pos. 1) with screw holes match
with the screw holes on the chassis.
459897_61Nkv
1
Fig. 18: Placing the handle on the chassis
1. Flange
6. Insert the screws into the screw holes and tighten
the screws to fix the handle in position.
4.2 Before turning on for the first time
1. Remove the packaging of the handle.
2. Fix one handle at a time.
3. Insert the edge protector through the end of the
handle without the flange. Push the edge protector
near to the flange.
Fig. 15: Inserting the edge protector
i Do not interchange the edge protectors for the left
and right handles. Even otherwise, the profile of the
edge protectors do not match with the chassis if
interchanged.
i Invert the edge protector and observe the etch-
ing. The etching for the edge protector for the right
handle is marked "R" and for the left handle "L". The
following illustration shows the etching on the edge
protector for the right handle.
R
R
Fig. 16: Edge protector for the right handle
