Operation
6.5.12.2 Adjusting the sag for the SR SUNTOUR steel suspension fork
Only applies to pedelecs with this equipment
You can pre-tension the steel suspension to
adjust to the rider's weight and their preferred
riding style. It is not the coil spring hardness which
is adjusted; it is its preload.

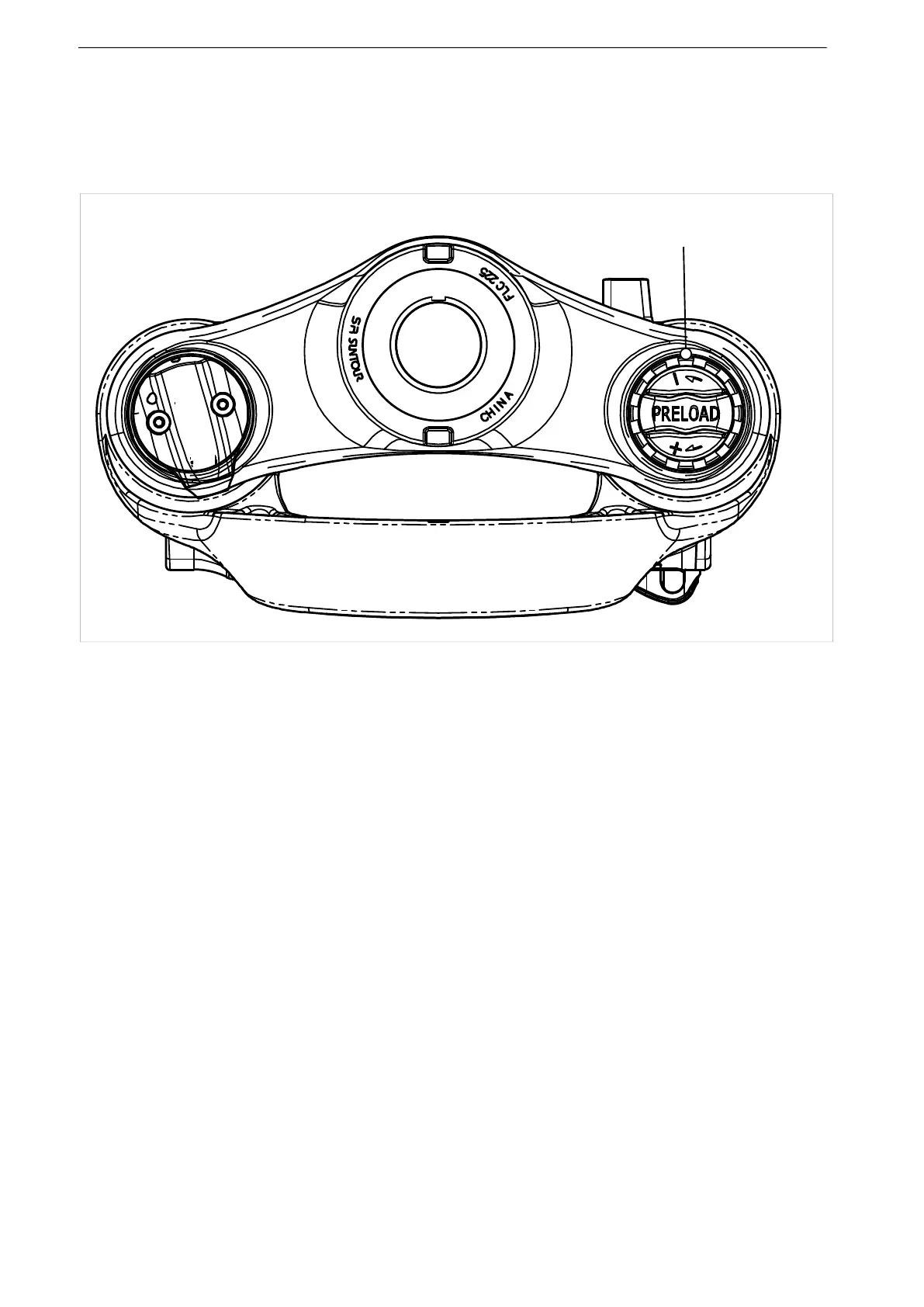

Figure 137: Example with SR SUNTOUR, sag setting wheel on the fork crown
1 Put on normal cycling clothing (including
baggage).
2 Turn the sag setting wheel (see
Section 3.4.5.1) until the required sag is
reached.
 Turn the sag setting wheel clockwise.
 The spring preload is increased.
 Turn the sag setting wheel anticlockwise.
 The spring preload is reduced.
3 If you are unable to achieve the required
degree of hardness, contact your specialist
dealer.
