Operation
6.5.14.1 Adjusting the SR SUNTOUR fork rebound damping
Only applies to pedelecs with this equipment

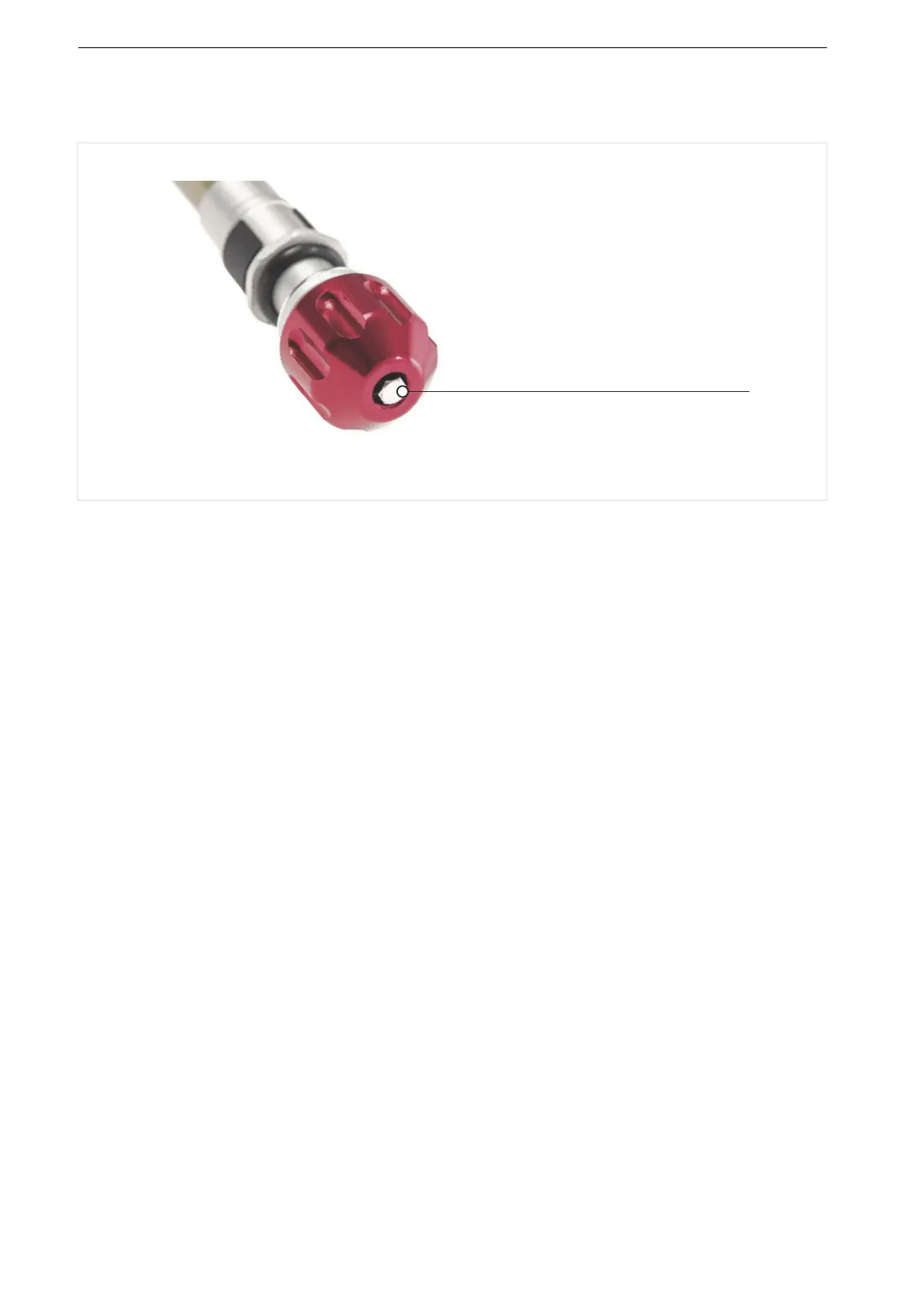

Figure 144: Example of SR SUNTOUR rebound screw (1)
 The fork sag is adjusted.
1 Turn the rebound screw in a clockwise direction
towards the closed position until it stops.
2 Turn the rebound screw slightly in an anti-
clockwise direction.
 Adjust the rebound damper in such a way that
the fork rebounds quickly, but without
bottoming out upward.
Bottoming out refers to when the fork rebounds
too quickly and stops moving abruptly once it
has reached the full rebound distance. You can
hear and feel a slight impact when this
happens.
1
