Cleaning, maintenance and inspection
3 Press the check gauge down with just one
finger until it clicks into place.

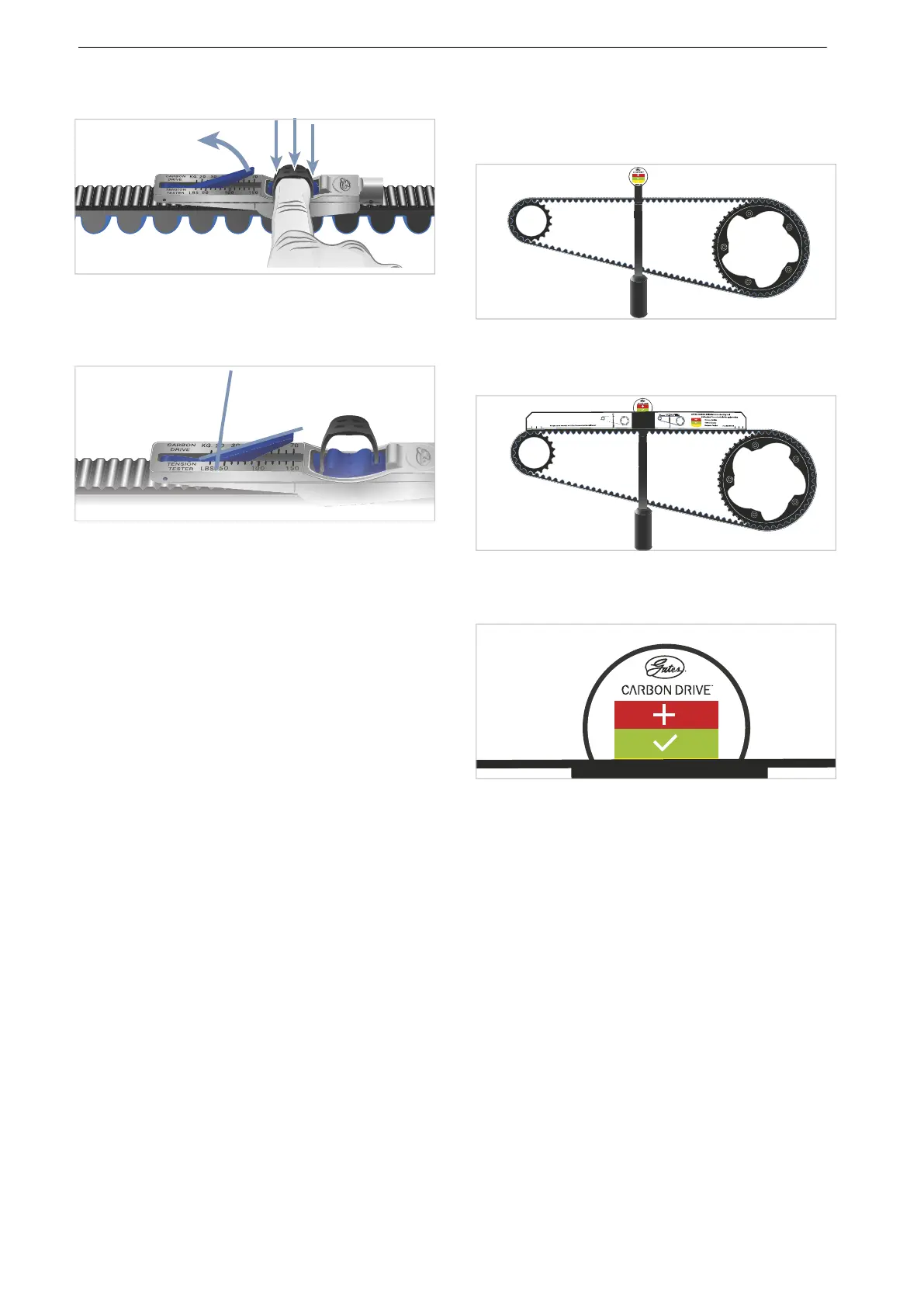

Figure 213: Pressing the check gauge down with one
finger
4 Take reading where line A meets line B.
Figure 214: Example of a reading: 20 kg
5 Turn the pedal a quarter. Repeat measurement
at least three times.
6 Convert value read from kg to pounds. The
value is given in inches per pound.
Example: 20 kg = 44 inch = 44 Ibs
7 Compare value with Table 44 Tension
specification.
If the value is higher than the specification,
reduce belt tension.
If the value is within the specified range, the
belt tension has been correctly adjusted.
If the value is lower than the specification,
increase belt tension.
7.5.9.3 ECO tension tester
Not included in price
1 Attach the measuring stick on the belt.
Figure 215: Attached measuring stick
2 Place the ruler on both belt sprockets.
Figure 216: Ruler in place
Read tension on the tension indicator.
Figure 217: Example: On yellow along lower edge, so
reduce belt tension slightly
Red = increase belt tension
Green = belt tension is set correctly
Yellow = reduce belt tension
