Bosch Intuvia 100 User Manual

MY23P0a -52_1.0_11.10.2022
181
Operation
6.16.1.2 Locking the SR SUNTOUR rear frame damper
Only applies to pedelecs with this equipment

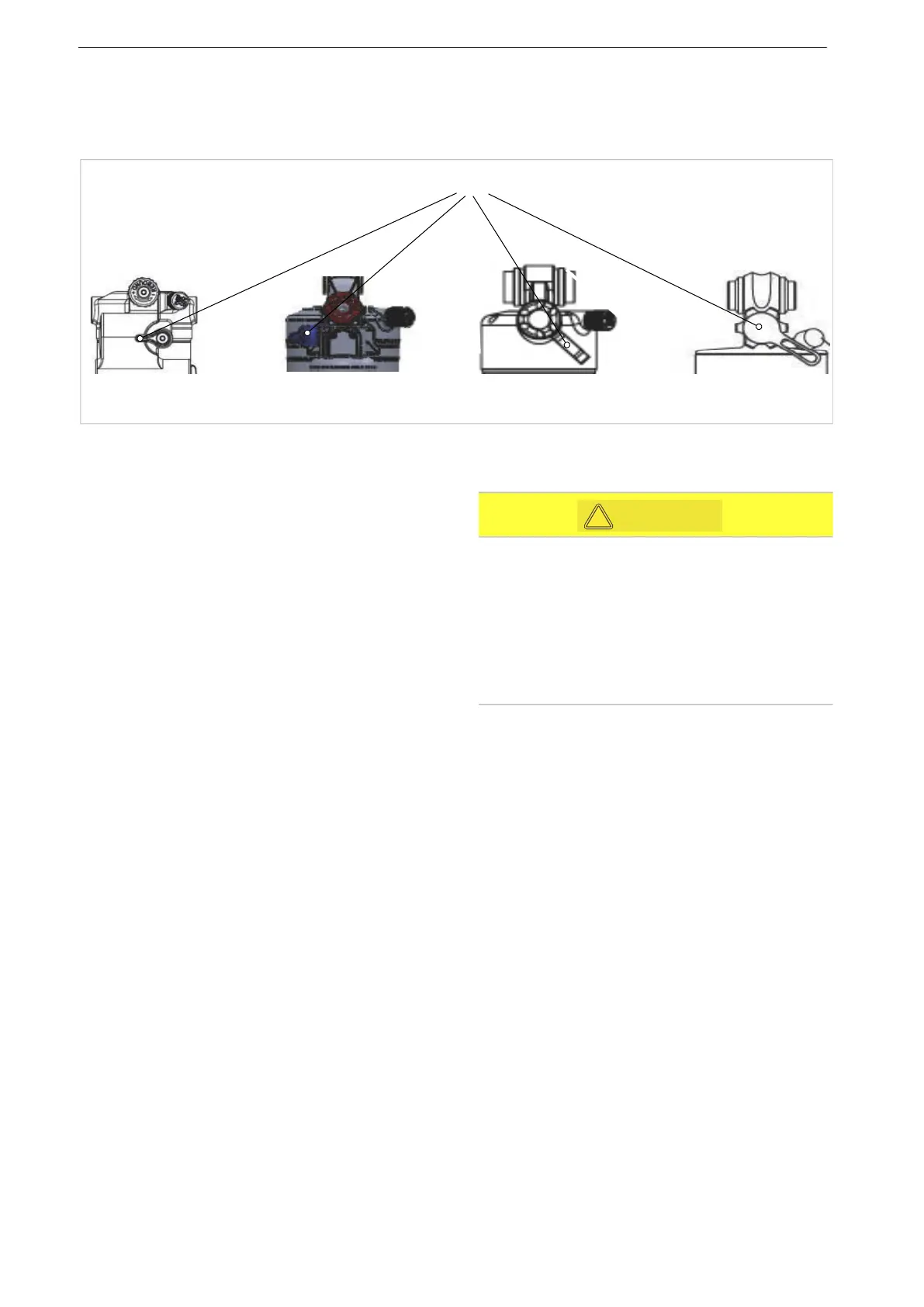

Figure 165: Position of RS Suntour rebound adjuster on rear frame dampers Triair2 (a), Triair (b), EDGE-comp (c) and
EDGE (d)
 The pedelec’s sag is configured.
 The pedelec’s rebound damping has been set.
 Place compression stroke lever or, if present,
the lockout lever on the handlebars at the
LOCKOUT position.
 The rear frame damper is locked.
1
abc d
Crash caused by damaged rear frame damper
The rear frame damper can be damaged if it is
compressed under high stress load. This may
lead to an accident with injuries.
 Never select the LOCK setting on off-road
rough terrain or when the suspension is
subject to high stress loads.
CAUTION
!
