Bosch Intuvia 100 User Manual

MY23P0a -52_1.0_11.10.2022
165
Operation
6.5.17.4 Adjusting the headlight

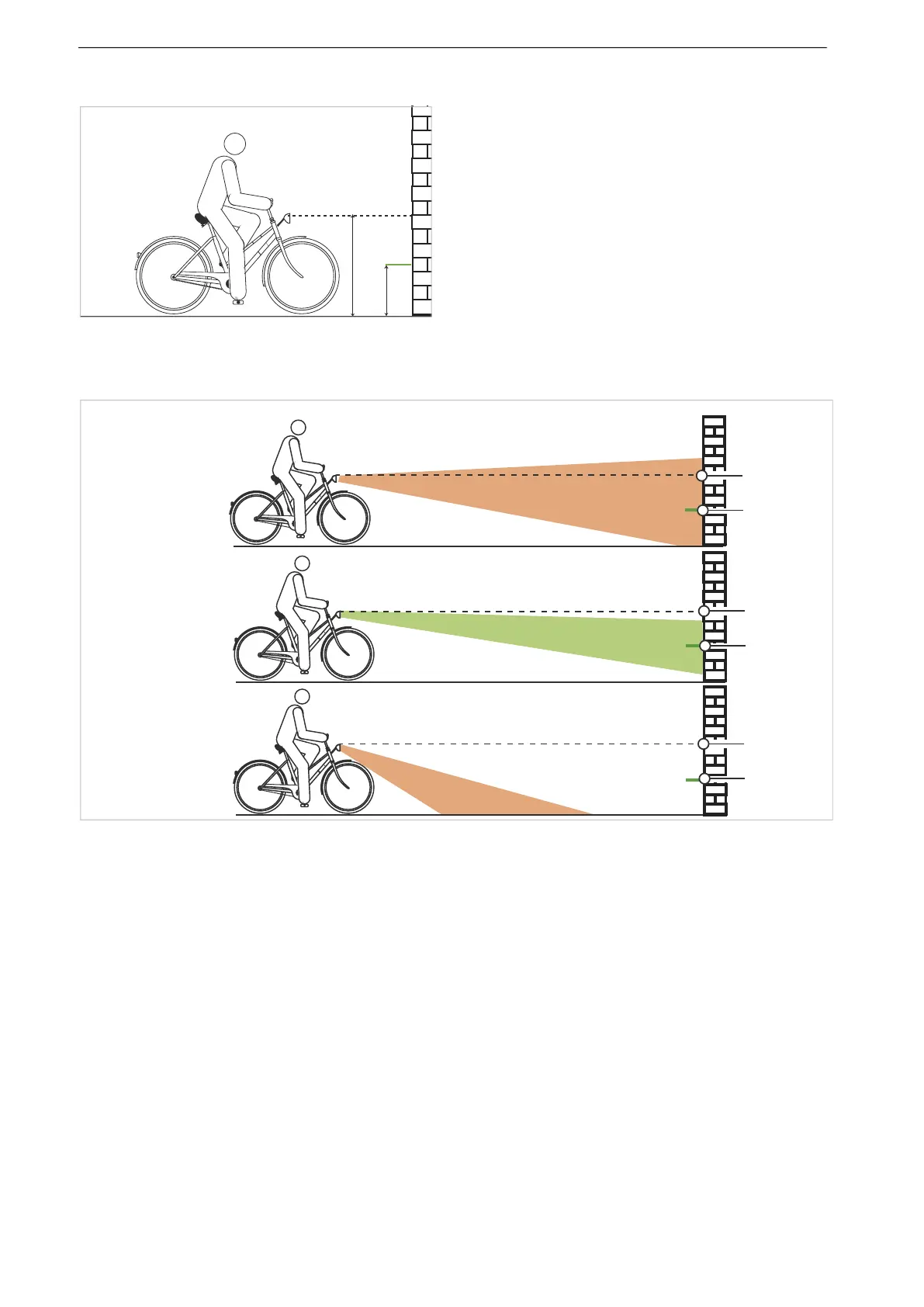

Figure 148: Measuring on the wall
1 Position the pedelec so that its front is facing a
wall.
2 Mark the height of the headlight (1) on the wall
with chalk.
3 Mark half the height of the headlight (2) on the
wall with chalk.
4 Place pedelec 5 m in front of the wall.
5 Stand the pedelec up straight.
6 Hold the handlebars straight with both hands.
Do not use the kickstand.
7 Switch on riding light.
Figure 149: Light positioned too high (1), correctly (2) and too low (3)
8 Check the position of the light beam.
 (I) if the upper edge of the light beam is above the headlight height mark (1), the riding light will dazzle.
The headlight must be positioned lower.
 If the mid-point of the light beam is on or slightly below the mark showing half the height of the headlight
(2), the lighting is optimally positioned.
 If the light beam is in front of the wall, move the headlight up.
1
2
I
II
III
1
2
1
2
1
2
