MY23P0a -52_1.0_11.10.2022
250
Inspection and maintenance
8.5.9.3 Inspecting and greasing RS SUNTOUR
suspension seat post
Only applies to pedelecs with this equipment
1 Remove seat post from the frame.
2 Remove safety and protective cover.
3 Examine seat post rack for scratches, cracks
and fractures.
Replace damaged seat post as specified in the
parts list.
If the paint protection film protecting a child
seat is missing or has worn away, affix a new
paint protection film.
4 Undo preload adjuster and take out steel
suspension.
5 Clean seat post on inside and outside.
6 Grease seat post on inside with SR SUNTOUR
grease no. 9170-001.
7 Lubricate pressure roller with bicycle chain oil.
Lubricate articulated joints in parallel
suspension with bike chain oil.

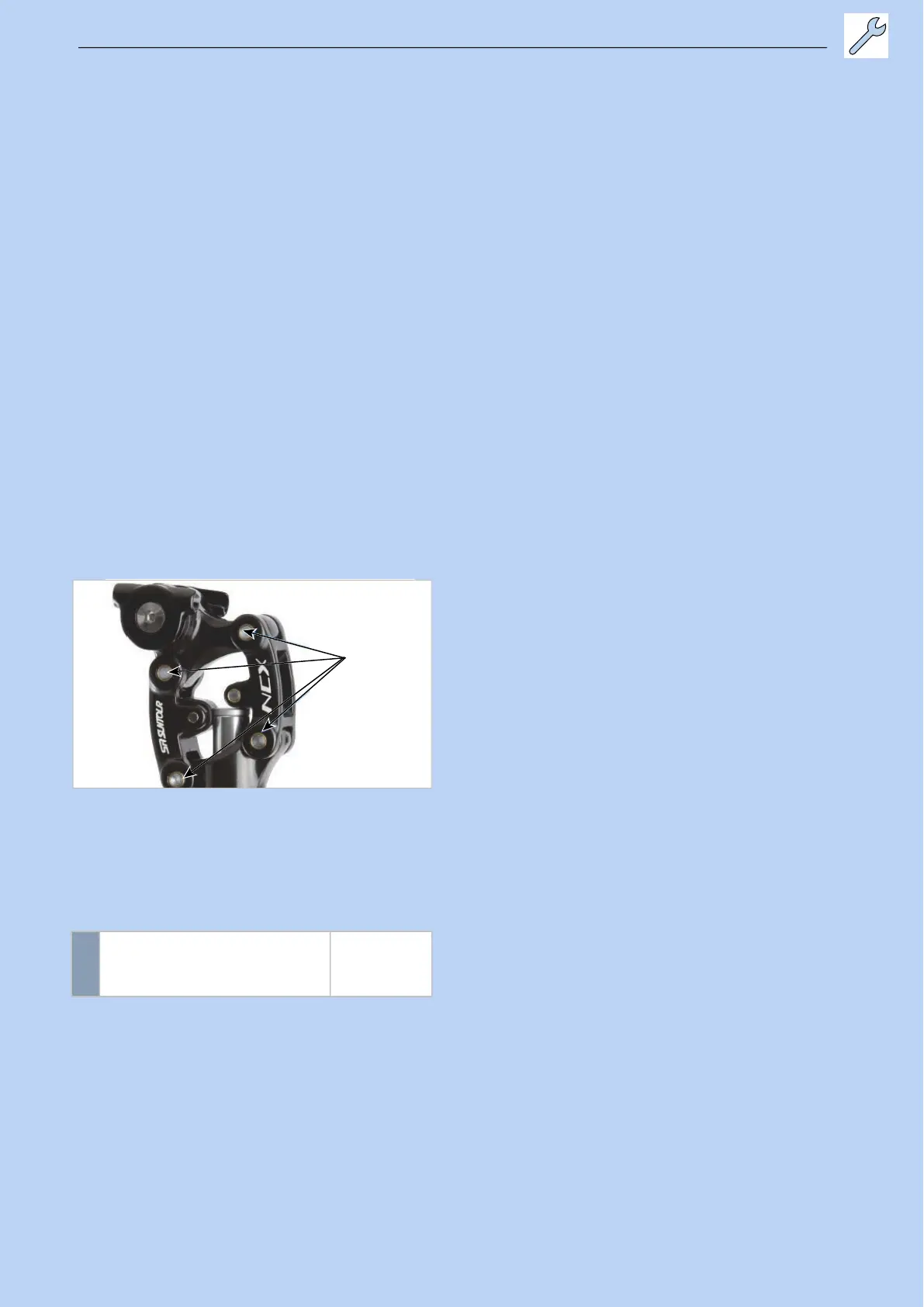

Figure 226: SR SUNTOUR suspension seat post
lubrication points
8 Reinsert seat post as per height specifications
in the pedelec pass.
9 Check screws for correct tightening torques.
10 Put on safety and protective cover.
SR SUNTOUR suspension seat post
torques
Seat clamp screw
M5 fixing grub screws
15–18 Nm
3 Nm
