Bosch Intuvia 100 User Manual

MY23P0a -52_1.0_11.10.2022
158
Operation
6.5.13.1 Adjusting Suntour sag for the rear frame damper
Only applies to pedelecs with this equipment
Every rear frame damper has a specific delivery
air pressure ex works. These levels are starting
points. These settings can be changed based on
riding skills, trail conditions, frame design and
personal preferences.
After setting up the rear wheel damper, check the
sag to ensure the recommended sag settings are
used.
 The fork sag is adjusted.
 The compression adjuster is set to OPEN.
1 Remove valve cap from the air valve (rear
frame damper).
2 Attach a high-pressure damper pump to the air
valve (rear frame damper).
3 Pump the damper to the required pressure.
Never exceed the recommended maximum air
pressure from the Suntour rear frame damper
filling pressure table (see Table 63).
4 Remove high-pressure damper pump from the
air valve (rear frame damper).
5 Apply force on the saddle to compress the rear
frame damper several times by at least 50% of
the full deflection.
 This equalises the air pressure between
positive and negative air chambers.
6 Measure the distance between the air chamber
seal and the end of the rear frame damper.
This distance is the total rear frame damper
deflection.

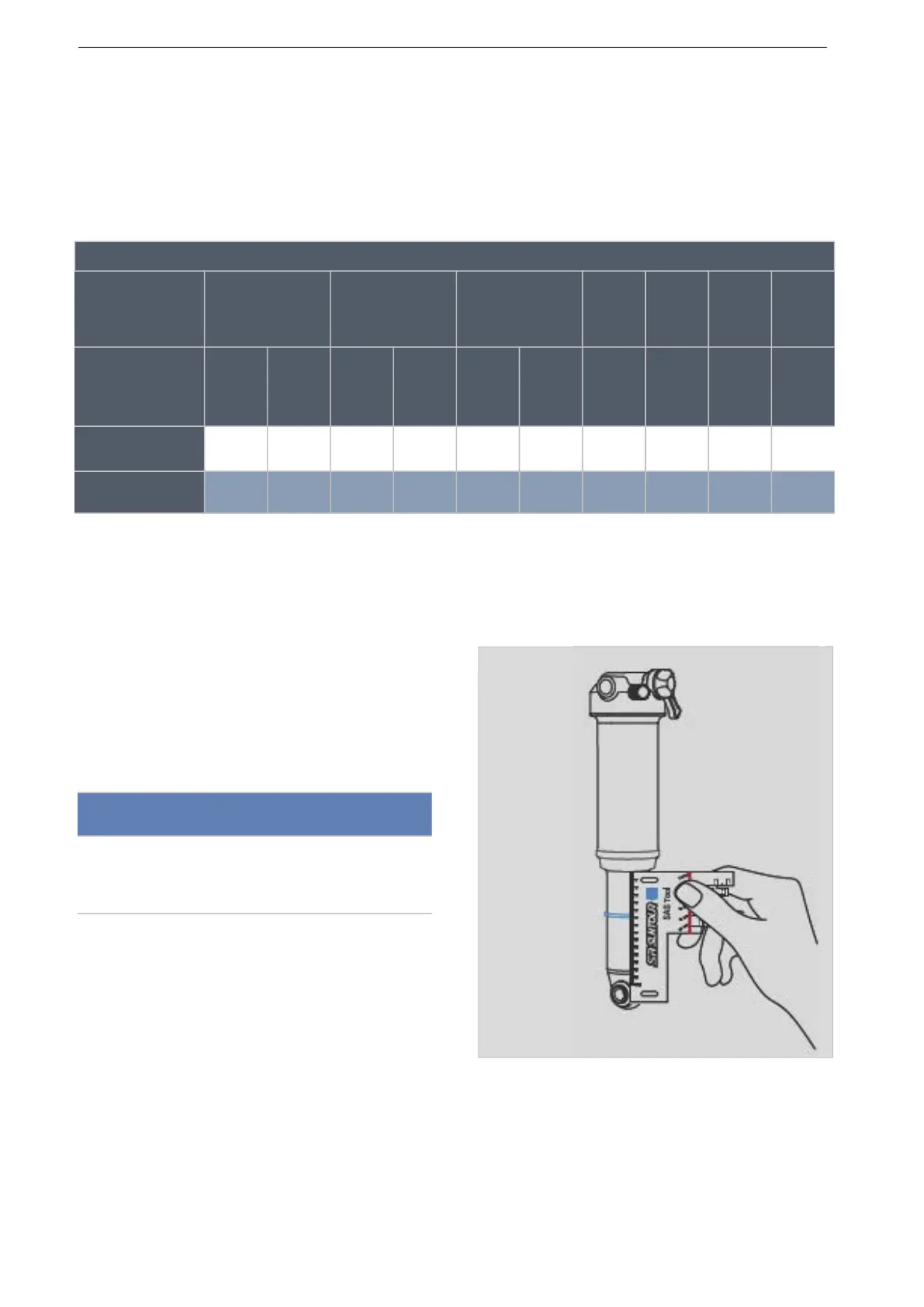

Figure 142: Measuring the total deflection
Recommended air pressure [psi]
Vorocoil
Triair2
Triair
EDGE-comp
EDGE-Plus
EDGE
RAIDON
Main body
Air reservoir
Main body
Air reservoir
Main body
Air reservoir
Main body Main body Main body Main body
Pressure
Factory reset
... 200 180 180 180 200 110 110 110 110
Maximum
pressure
... 250 300 240 300 240 300 300 300 300
Table 63: Suntour rear frame damper filling pressure table
Notice
 If the air pressure in the rear frame damper is
exceeded or undershot, the damper can be
permanently damaged.
