Note
• You can input between 10.0 and 200.0(mm) (between 0.39 and 7.87(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.
• Divisions
You can change the number of divisions of grid lines so that they serve as a guide to laying out objects.
Note
• You can input between 1 and 10.
• You can change the numbers by clicking either ▲ button or ▼ button.
• Grid Color
Select the grid line color.
•
Print Object Frames
You can print the object border.
Note
• If you do not want to print the object border, deselect the Print Object Frames check box.
•
Object Frame Style
You can select the object frame style for printing.
The following settings are available for the object frame style.
Setting Details
Solid Line You can print the solid line as the frame style.
Dotted Line You can print the dotted line as the frame style.
Dashed Line You can print the dashed line as the frame style.
• Auto Arrange Spacing
Change the object-to-object spacing to be applied in the operation of laying out objects automatically.
Note
• You can input between 0.0 and 100.0(mm) (between 0.00 and 3.94(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.

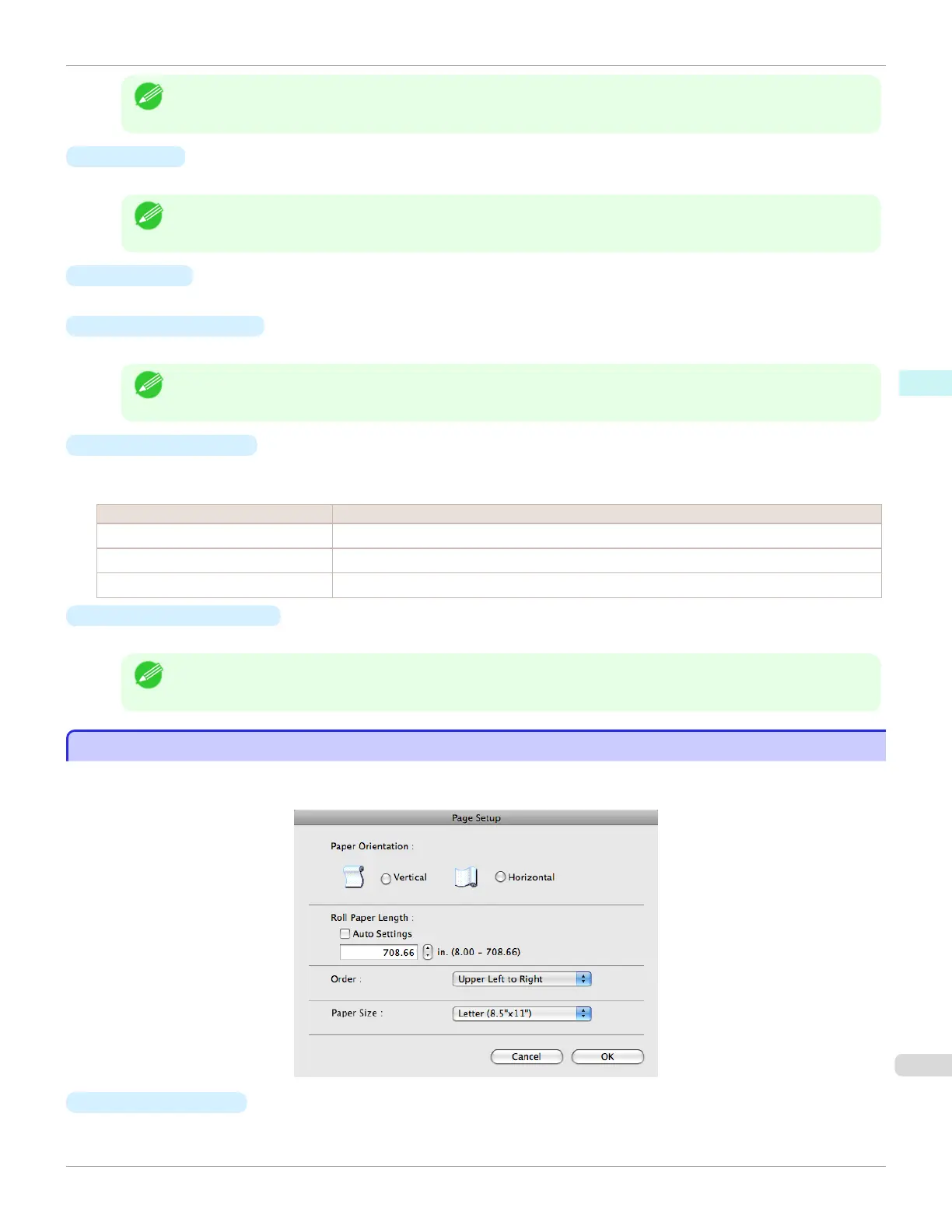

Page Setup Dialog Box
Page Setup Dialog Box
This dialog box appears when you select Page Setup from the File menu.This dialog box provides selections for set-
ting the media size, orientation and other important features.
•
Paper Orientation
This selects the paper orientation.
iPF680
Page Setup Dialog Box
User's Guide
Mac OS Software Free Layout
333

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
