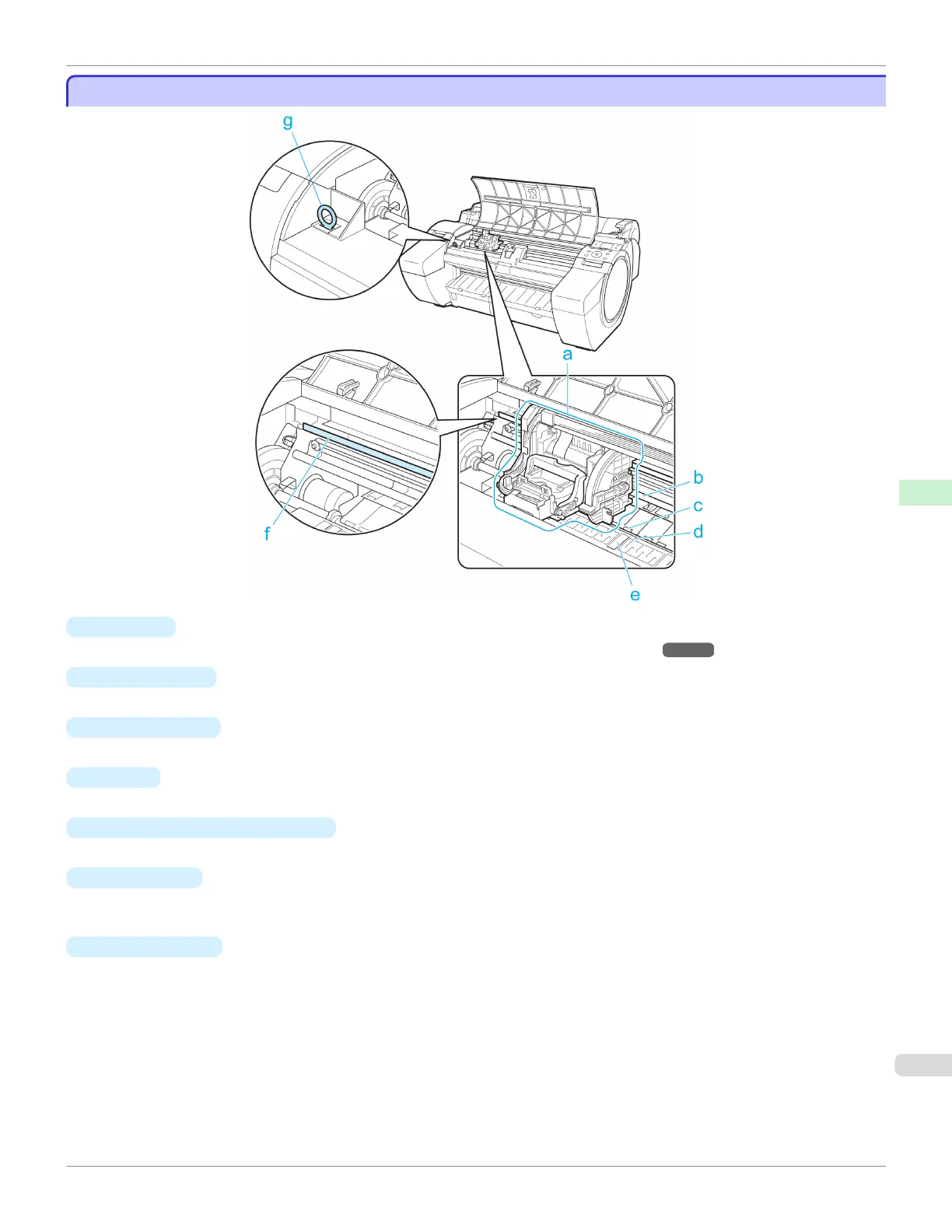

Top Cover (Inside)
Top Cover (Inside)
a
Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.") ➔ P.478
b
Carriage Shaft
The Carriage slides along this shaft.
c Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
d Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
e Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
f
Linear Scale
The linear scale serves a key role in detecting the Carriage position. Be careful not to touch this part when clean-
ing inside the Top Cover or clearing paper jams.
g
Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
iPF680
Top Cover (Inside)
User's Guide
Printer Parts Printer parts
477

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
