The following settings are available for orientation.
Setting Details
Vertical Prints the image and text created with the application software in the orientation as it is.
Horizontal Prints the image and text by rotating sideways 90 degrees from the orientation as specified in
the application.
• Roll Paper Length
Set the length of one page to print on roll paper.
When you place a checkmark on Auto Settings, the one-page length to be printed on roll paper is automatically
set so that the laid-out objects are printed on one page.
Note
• Available only if rolls are selected in Paper Source.
• You can input between 203.2 and 18000.0(mm) (between 8.00 and 708.66(inch)).
• You can change the numbers by clicking either ▲ button or ▼ button.
•
Order
Set the object layout order.
The following settings are available for order.
Setting Details
Upper Left to Right The objects are laid out from upper left to right.
Upper Left to Bottom The objects are laid out from upper left to bottom.
Note
• When you have selected Roll Paper Length > Auto Settings and Paper Orientation > Vertical, you can choose
only Upper Left to Right.
• When you have selected Roll Paper Length > Auto Settings and Paper Orientation > Horizontal, you can
choose only Upper Left to Bottom.
• Paper Size
You can select the size of the print media.
Note
• You cannot display this if Roll Paper is selected in Paper Source.

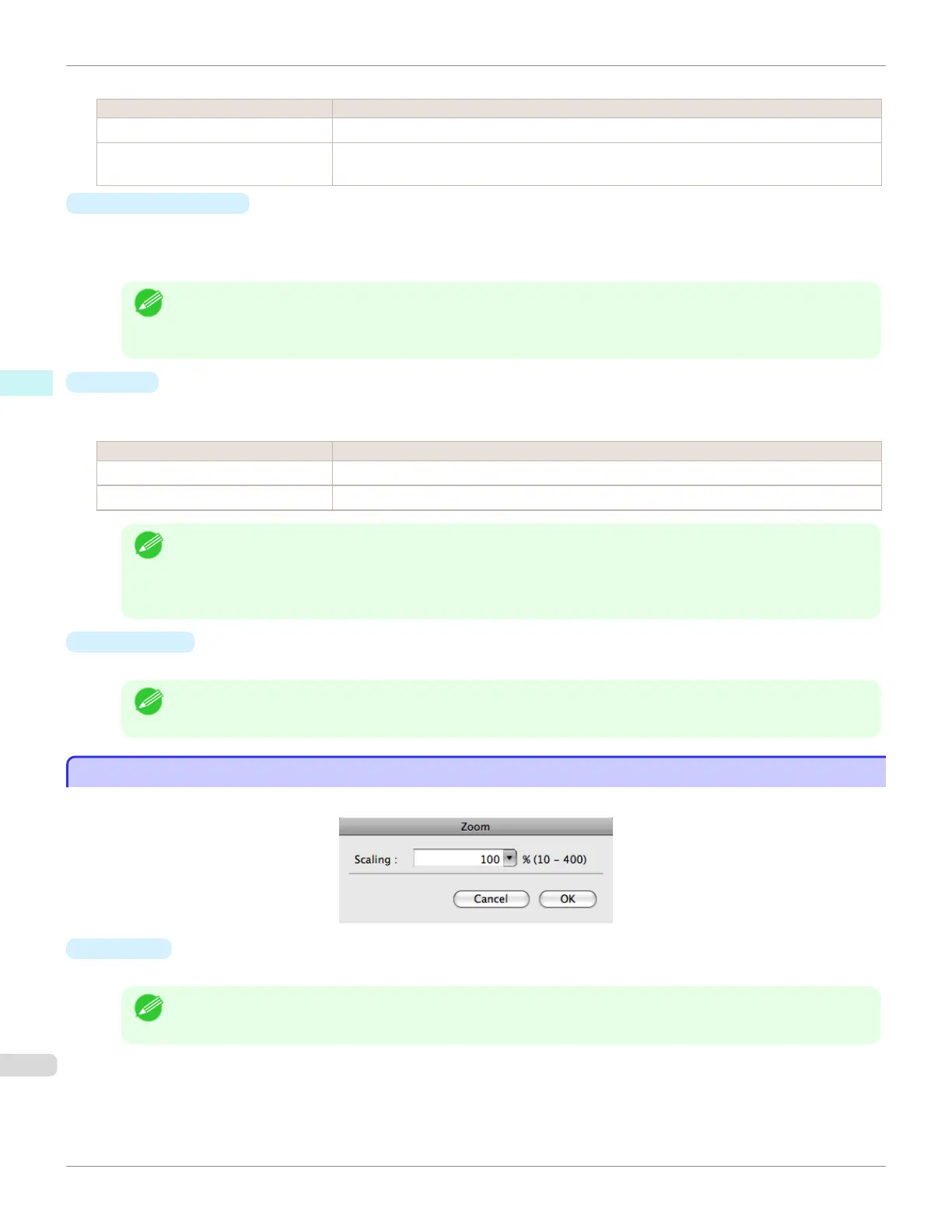

Zoom Dialog Box
Zoom Dialog Box
This dialog box appears when you select Zoom from the View menu. You can enlarge or reduce the screen display.
•
Scaling
Set the magnification for enlargement or reduction of the screen display.
Note
• You can input between 10 and 400.
• You can change the numbers by clicking ▼ button.
Zoom Dialog Box
iPF680
User's Guide
Mac OS Software Free Layout
334

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
