7 Press ▲ or ▼ to select D, and then press the OK button.
8 Press ▲ or ▼ to select D-1, and then press the OK button.
9

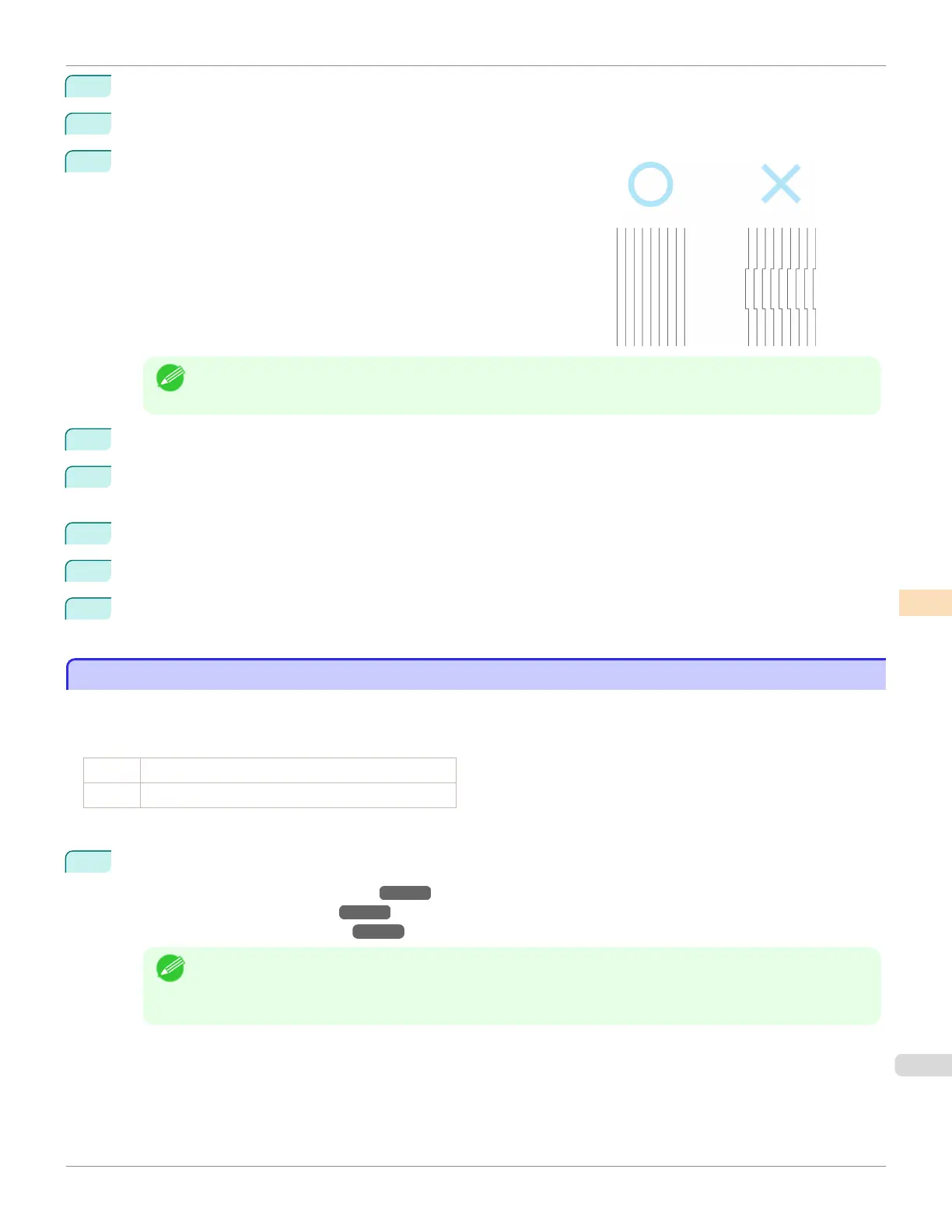

Examine adjustment test pattern D-1 and determine the number with
straight lines.
Note
• If two patterns seem equally good and you cannot decide which one is better, choose an intermediate value.
For example, choose 11 if you cannot decide whether pattern 10 or 12 is better.
10
Press ▲ or ▼ to select the pattern number you have decided, and then press the OK button.
11
Repeat steps 8–10 to specify the adjustment value for D-2 to D-17.
Note that D-6 and D-12 cannot be configured.
12 Press the Back button.
13 Press ▲ or ▼ to select Register Setting, and then press the OK button.
14 Press ▲ or ▼ to select Yes, and then press the OK button.
The adjustment value is now registered, and adjustment is complete.
Adjusting Line Misalignment
Adjusting Line Misalignment
If printed lines are misaligned, execute Head Inc. Adj. to adjust the angle of inclination of the Printhead. Executing
Head Inc. Adj. requires you to examine a printed test pattern and enter an adjustment value.
Paper to Prepare
Rolls An unused roll at least 10 inches wide
Sheets One sheet of unused paper of at least A4/Letter size
Perform adjustment as follows.
1 Load the paper.
• Attaching the Roll Holder to Rolls ➔ P.370
• Loading Rolls in the Printer ➔ P.373
• Loading Sheets in the Printer ➔ P.392
Note
• When loading paper, specify the type of paper correctly. Using paper that you have not specified on the printer
may cause feeding problems and affect the printing quality.
• We recommend loading a type of paper that you use often.
iPF680 Adjusting Line Misalignment
User's Guide
Adjustments for Better Print Quality Adjusting the Printhead
527

Canon imagePROGRAF iPF680 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Page description languages	GARO, HP-GL/2, HP-RTL
Media thickness	0.07 - 0.8 mm
Maximum print size	-
Maximum roll length	18 m
Media width (rolls)	254 - 609.6 mm
Media width (sheets)	203.2 - 609.6 mm
Maximum roll diameter	150 mm
Paper tray media types	Coated paper, Cut sheet, Plain paper, Roll
ISO A-series sizes (A0...A9)	A1, A2, A3
ISO B-series sizes (B0...B9)	B2, B4
Certification	RoHS
Product color	Black, Grey
Sound pressure level (printing)	47 dB
USB connector	USB Type-A
USB 2.0 ports quantity	1
Ethernet LAN data rates	10/100/1000 Base-T/TX Mbit/s
Ethernet interface type	Gigabit Ethernet
Compliance industry standards	IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
Power consumption (standby)	0.5 W
Power consumption (typical)	140 W
Storage temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	757 mm
Width	997 mm
Height	507 mm
