Optional for rear drives: Connect SAS/SATA cable B1 from the B1 card connector to the rear backplane

connector.

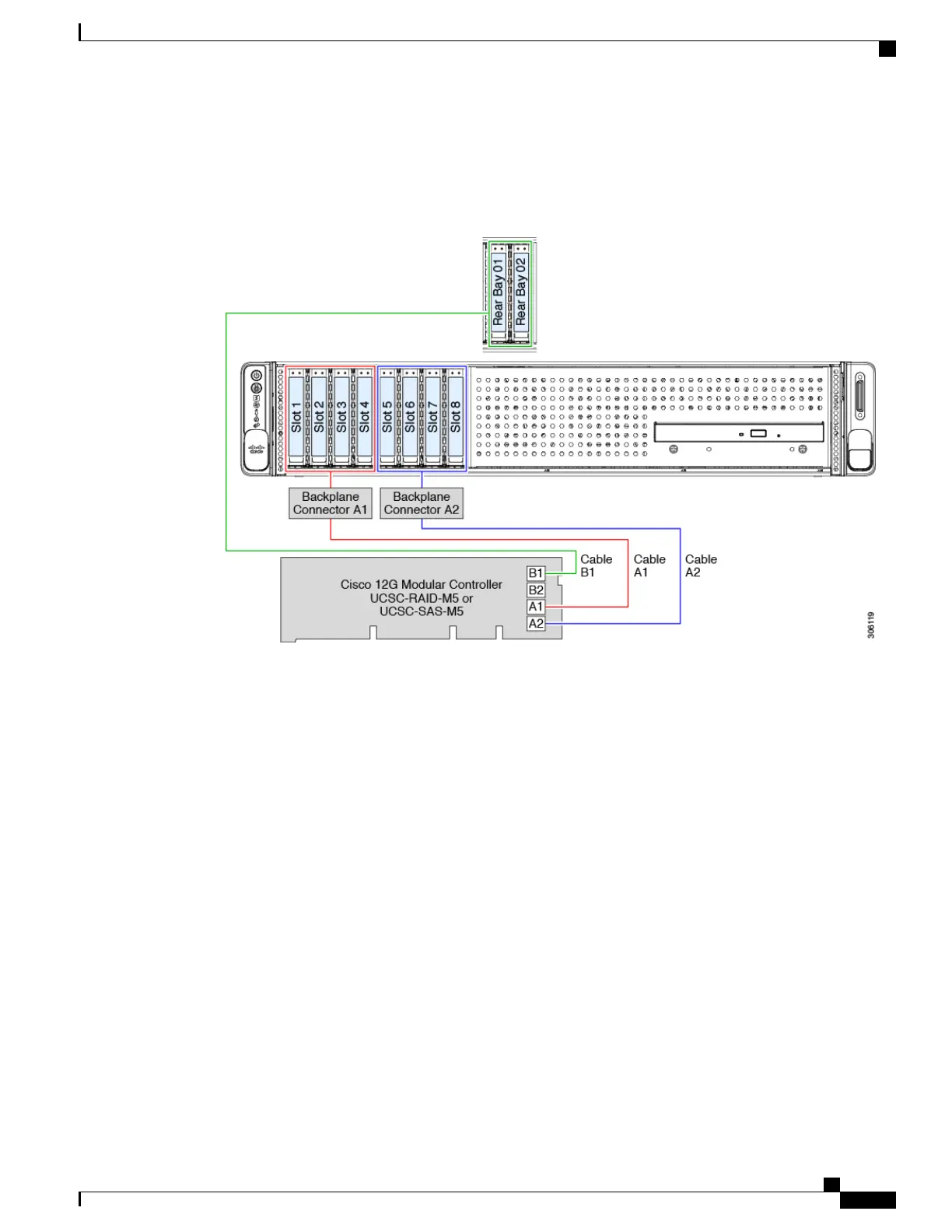

Figure 52: SFF, 8-Drive UCSC-C240-M5S Cabling With UCSC-RAID-M5

LFF 12-Drives UCSC-C240-M5L

This HW RAID or HBA option can control up to 12 front-loading SAS/SATA drives in this server version,

plus 2 rear-loading SAS/SATA drives.

Connect SAS/SATA cable A1 from the A1 card connector to the A1 front backplane connector.

Connect SAS/SATA cable A2 from the A2 card connector to the A2 front backplane connector.

Connect SAS/SATA cable B2 from the B2 card connector to the B2 front backplane connector.

Cisco UCS C240 M5 Server Installation and Service Guide

135
