Cisco UCS C240 M5 Service Manual

Network link activity LED9Power button/power status LED3
Pull-out asset tag10Unit identification button/LED4
KVM connector (used with KVM cable that provides one
DB-15 VGA, one DB-9 serial, and two USB connectors)
11System status LED5
-Fan status LED6
Cisco UCS C240 M5 Server (SFF Drives, 8-Drive) Front Panel Features
The following figure shows the front panel features of the small form-factor (SFF) drive, 8-drive version of
the server (UCSC-C240-M5S).
For definitions of LED states, see Front-Panel LEDs, on page 32.

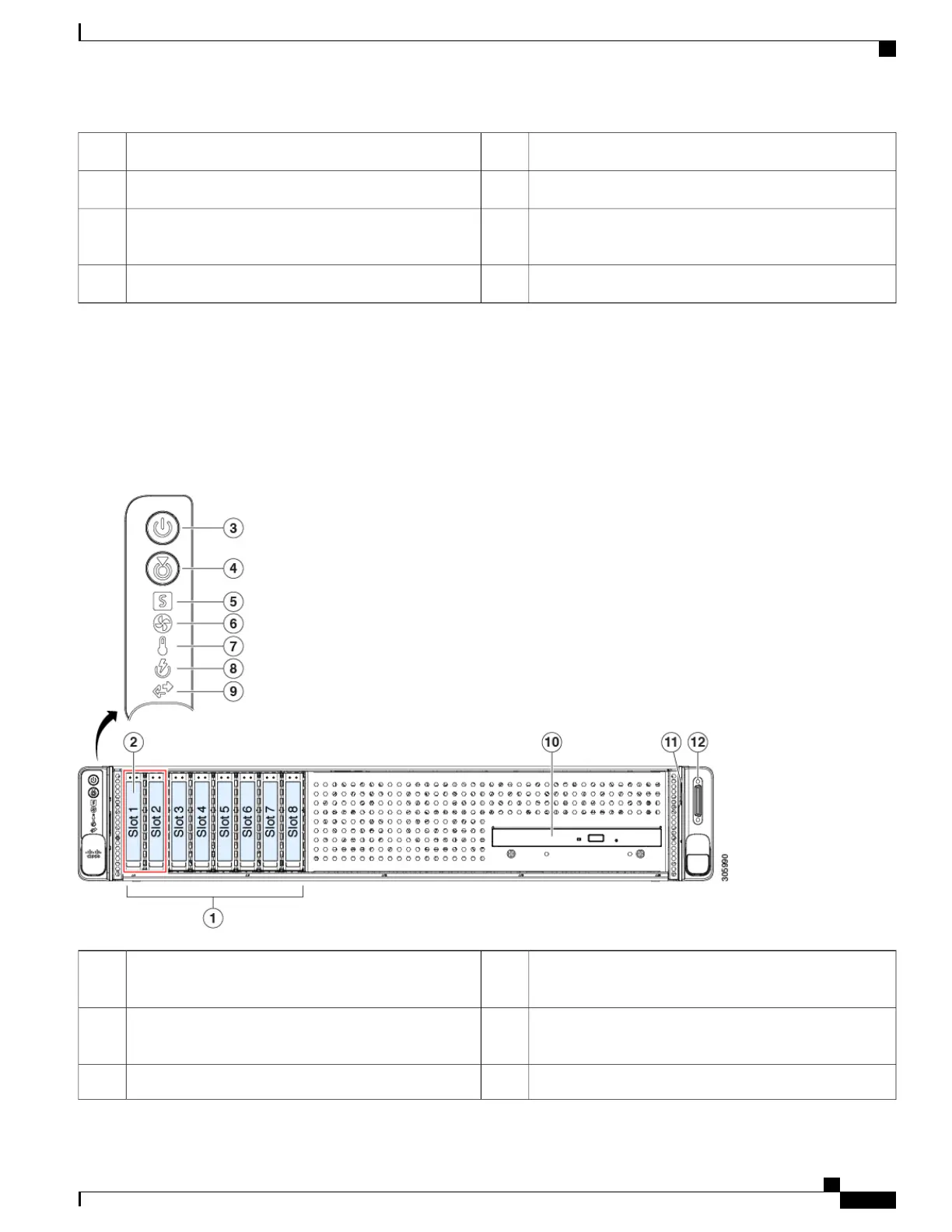

Figure 2: Cisco UCS C240 M5 Server (SFF Drives, 8-Drive) Front Panel
Temperature status LED7
UCSC-C240-M5S: Drive bays 1—8 support SAS/SATA
drives.
1
Power supply status LED8UCSC-C240-M5S: Drive bays 1 and 2 support NVMe
PCIe SSDs.
2
Network link activity LED9Power button/power status LED3
Cisco UCS C240 M5 Server Installation and Service Guide
3
Overview
External Features
