Product Manual – DOC. 8432A Crestron Pyng OS 2 for CP4-R • 59
Shade Scenes
Tap the Configure Shade Scenes button on the Setup Scenes screen or the Shade
Scenes button on the setup menu to display the
Shade Scenes screen.

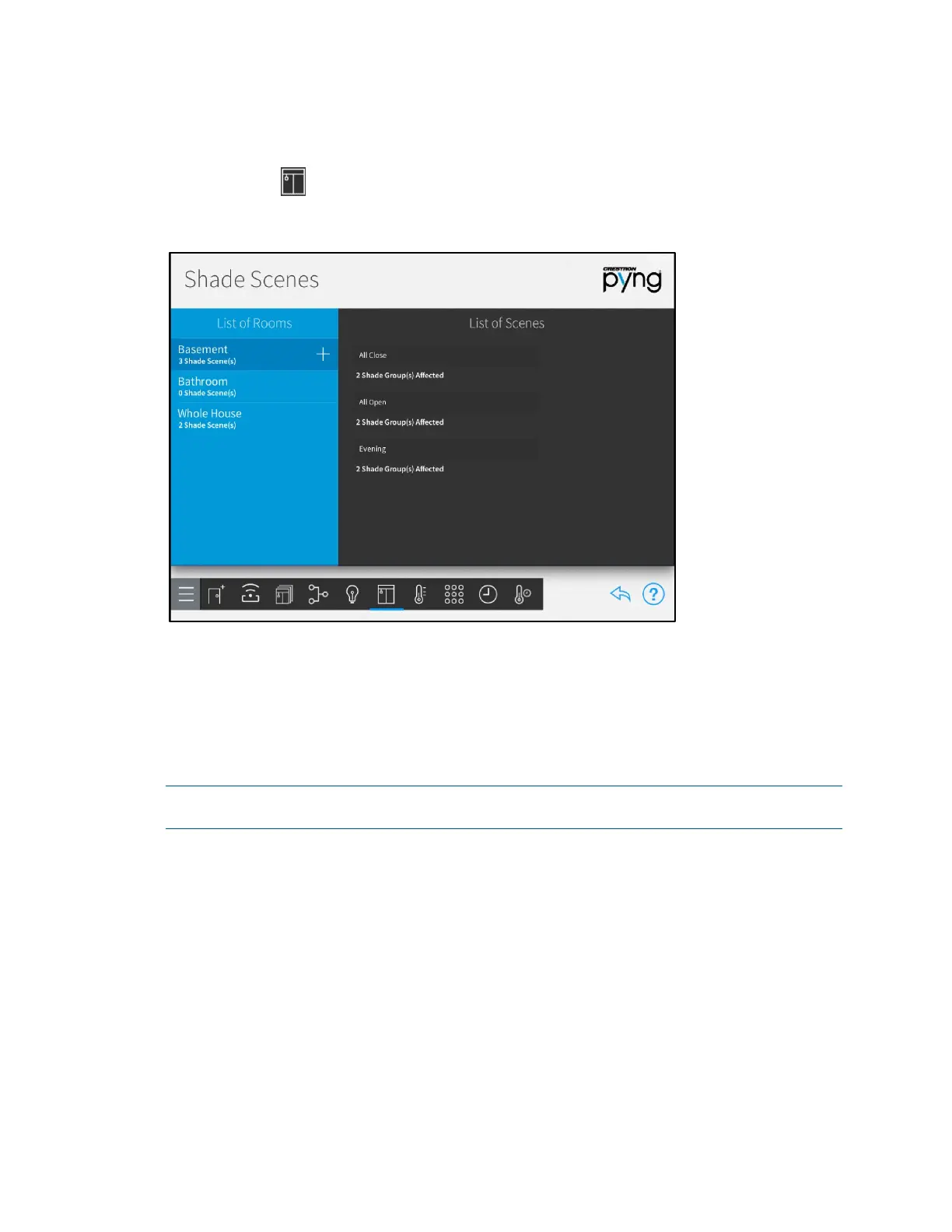

Shade Scenes Screen
Use the Shade Scenes screen to create shade scenes for one or more rooms or for the
entire house.
Shade scenes are used to set predefined levels for multiple shade groups. By default, the
Crestron Pyng system creates
All Open and All Closed scenes for every room with a
shade group. Additionally,
All Open and All Closed scenes are created automatically for
the whole house after the first shade motor has been added to the system.
NOTE: Shade scenes may also be created and configured by the homeowner in user
control mode. Refer to "Create a New User Shade Scene" on page 158.
Create New Shade Scenes
To create a new shade scene:
1. Select a room from the List of Rooms menu. Refer to the image above.
2. Tap the plus button (+) next to the room name.
3. Enter a descriptive name for the shade scene in the dialog box that is displayed.
4. Tap OK.
