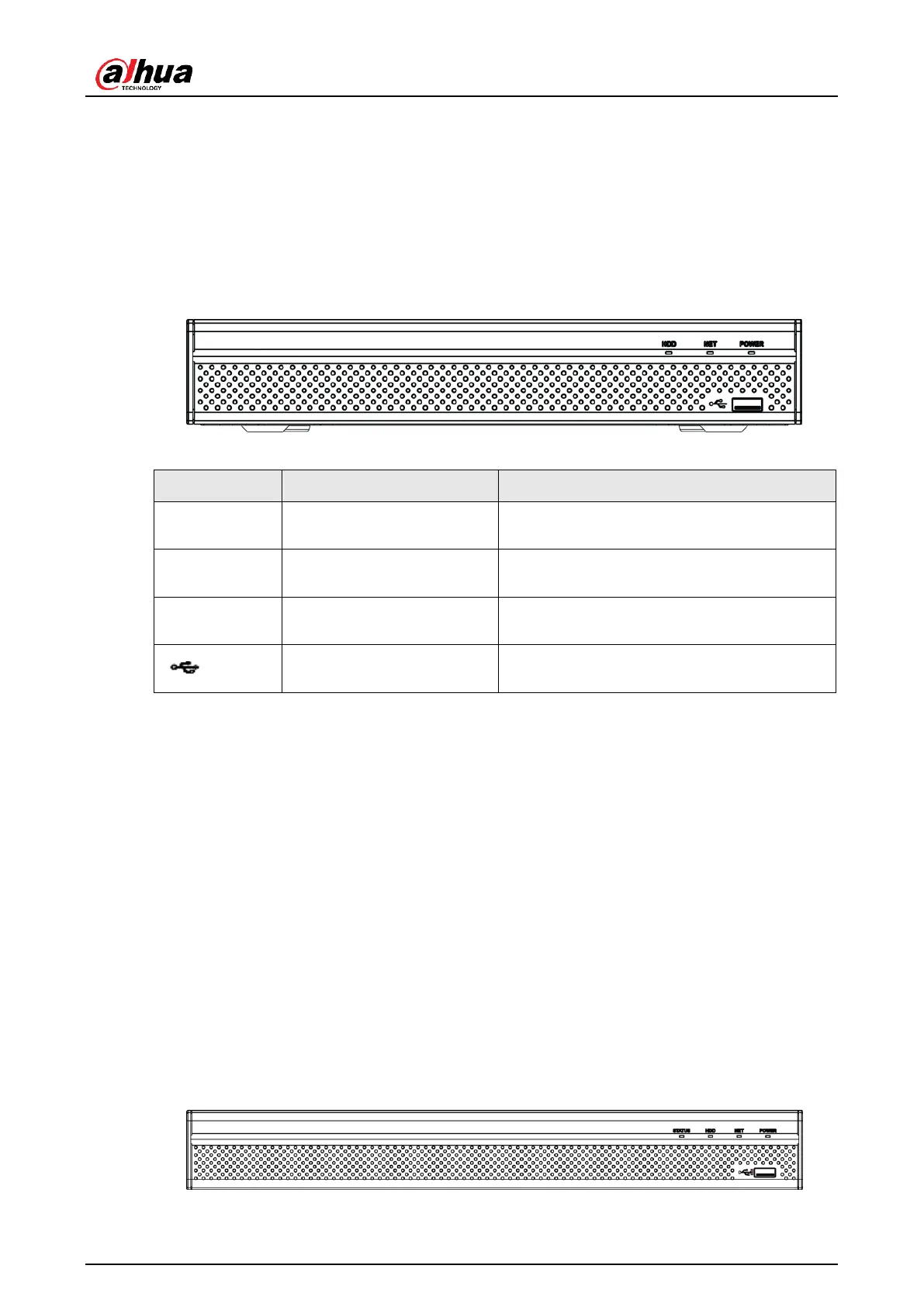

The front panel is shown as below. See Figure 2-7.
Figure 2-7
Table 2-7
Icon
Name
Function
HDD
HDD status indicator light
The blue light is on when the HDD is
malfunction.
NET
Network status indicator
light
The blue light is on when the network
connection is abnormal.
POWER
Power status indicator
light
The blue light is on when the power
connection is OK.
USB port
Connect to peripheral USB storage device,
mouse and etc.
2.1.8
NVR/22-S2/22-P-S2/22-8P-S2/42-16P/42N/52-4KS2/52-8P-4KS2/5
2-16P-4KS2/42-4KS2/42-P-4KS2/42-8P-4KS2/42-16P-4KS2/5224-
24P-4KS2/54-4KS2/54-16P-4KS2/44-4KS2/44-16P-4KS2/5424-24
P-4KS2/58-4KS2/S258-16P-4KS2/48-4KS2/48-16P-4KS2/22-4KS2
/22-P-4KS2/22-8P-4KS2/52-8P-4KS2E/52-16P-4KS2E/54-16P-4K
S2E/58-16P-4KS2E Series
The
NVR22-S2/NVR22-P-S2/22-8P-S2/42-16P/42N/52-4KS2/52-8P-4KS2/52-16P-4KS2/42-4KS2/
42-P-4KS2/42-8P-4KS2/42-16P-4KS2/5224-24P-4KS2/22-4KS2/22-P-4KS2/22-8P-4KS2/52-8
P-4KS2E/52-16P-4KS2E series front panel is shown as in Figure 2-8.
Figure 2-8
The NVR54-4KS2/54-16P-4KS2/44-4KS2/44-16P-4KS2/5424-24P-4KS2/54-16P-4KS2E
