Name
Function
RS-232
RS232 debug COM.
It is for general COM debug to configure IP
address or transfer transparent COM data.
HDMI
High Definition
Media Interface
High definition audio and video signal output
port. It transmits uncompressed high
definition video and multiple-channel data to
the HDMI port of the display device. HDMI
version is 1.3
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
PoE PORTS
8 PoE ports
Built-in Switch. Support PoE.
The 8 PoE ports series products supports
total 48V 120W power. One PoE port
supports up to 15W.
16 PoE ports
Built-in Switch. Support PoE.
The 16 PoE ports series products supports
total 150W power. One PoE port max
supports up to 15W.
2.2.10
NVR54-4KS2/58-4KS2/54-16P-4KS2/58-16P-4KS2/5424-24P-4KS
2/5816P-4KS2E Series

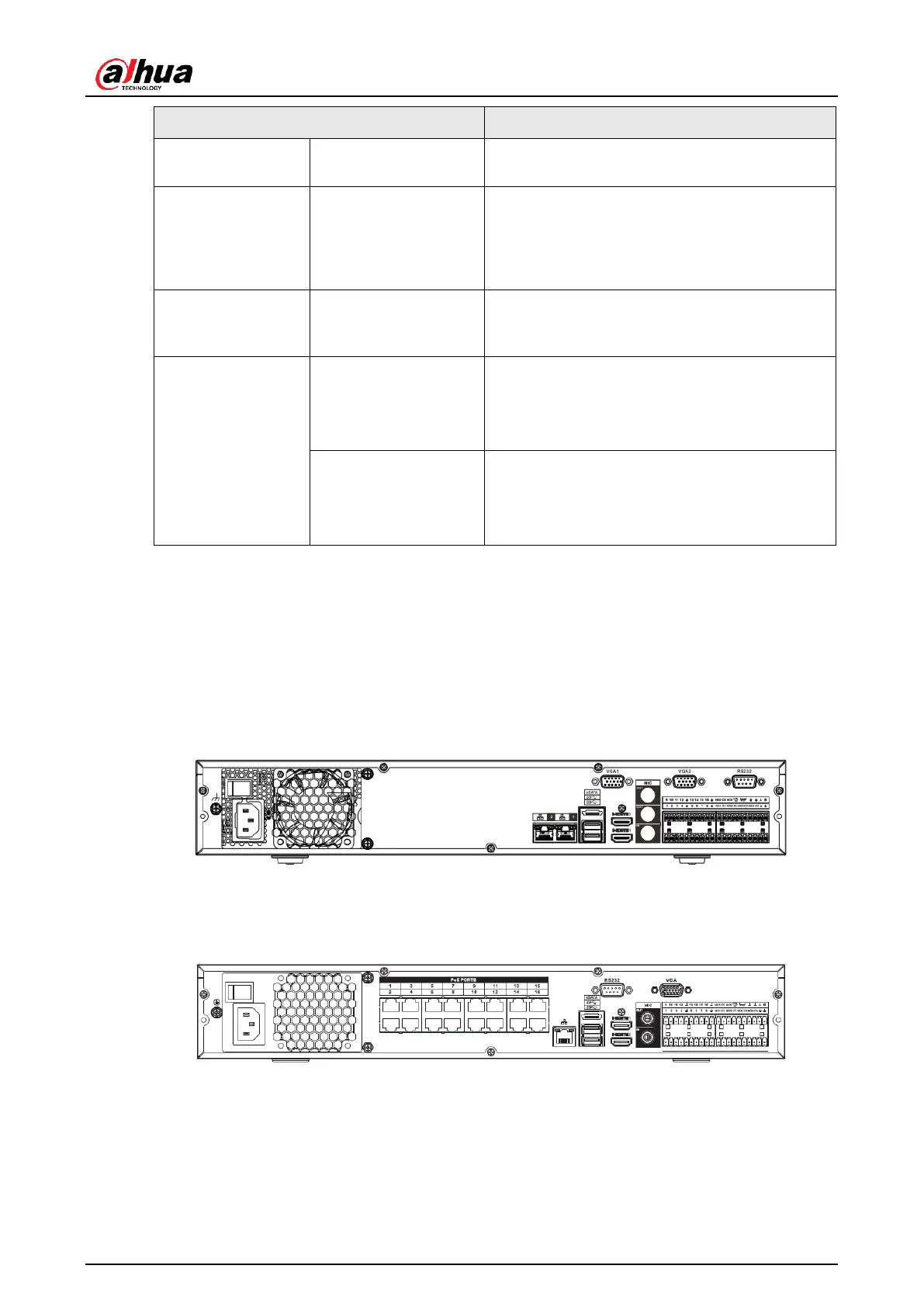

The NVR54-4KS2/NVR58-4KS2 series rear panel is shown as below. See Figure 2-48.
Figure 2-48
The NVR54-16P-4KS2/NVR58-16P-4KS2 series rear panel is shown as below. See Figure
2-49.
Figure 2-49
The NVR5424-24P-4KS2 series rear panel is shown as below. See Figure 2-50.
